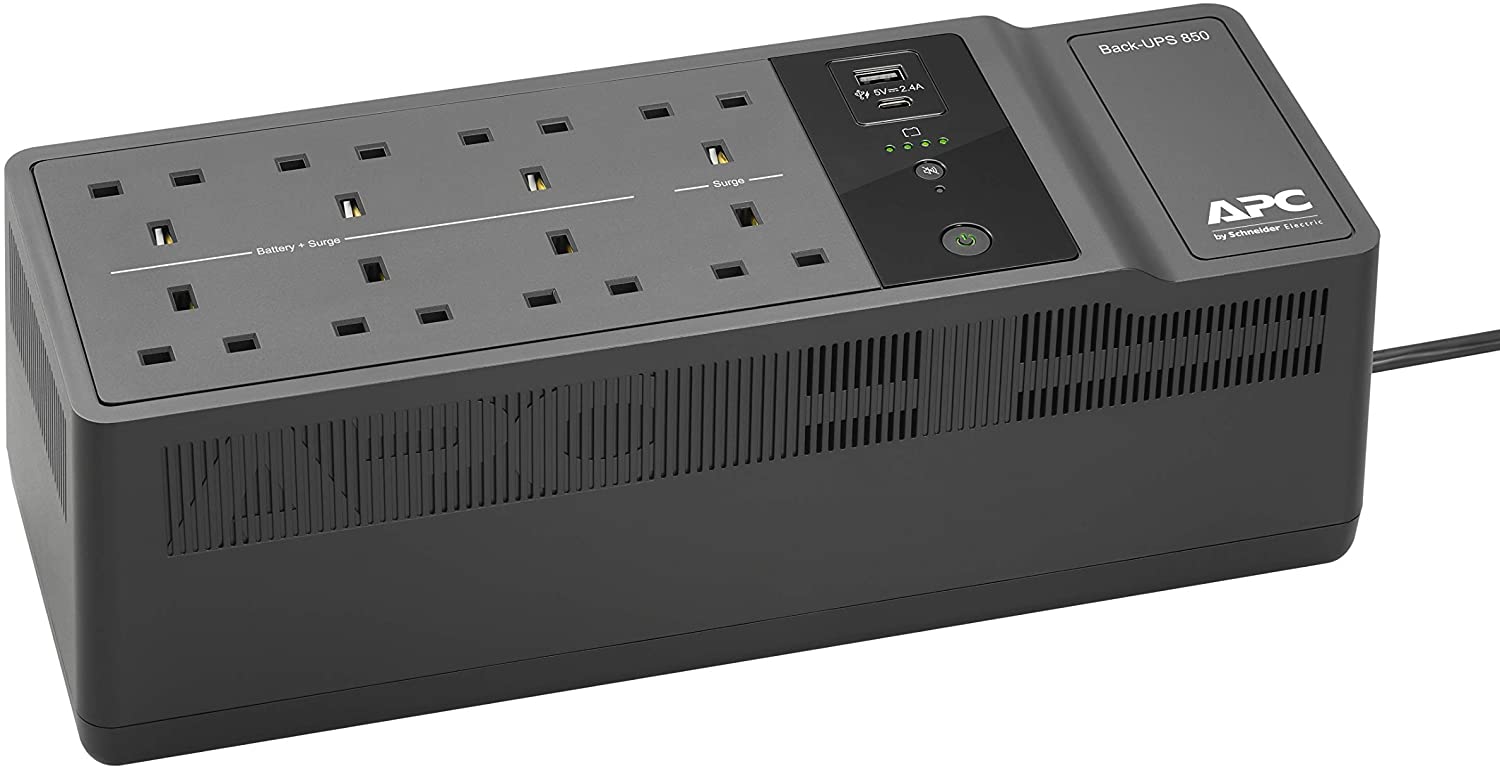

APC Back-UPS 850VA, 230V, USB Type-C and A charging ports
-
Battery Backup & Surge Protector for Electronics and Computers
-
Includes: User manual
BE850G2-UKĀ Features
Key Features
2mMax. Capacity Used
100%Output power capacity
520Ā Watts /Ā 850VAOutput Connections
(6) BS 1363 (Battery Backup)(2) BS 1363 (Surge Protection)Nominal Output Voltage
230VNominal Input Voltage
230VInput Connections
BS1363A BritishCord Length
1.8metersMaximum Input Current
6.0AAPC Back-UPS 850VA, 230V, USB Type-C and A charging portsBattery Backup & Surge Protector for Electronics and ComputersIncludes:Ā User manual- Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Audible alarms
Provides notification of changing utility power and UPS power conditions
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery charging indicator
Lets you know when your battery is charging and when it is fully charged.
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Safety-agency approved
The UPS is UL1778 Listed
- Simple battery replacement
Increases UPS availability by allowing quick, easy battery replacement.
- USB charging ports
Allows you to simultaneously charge and power your mobile phone and handheld computer using APC USB charging cables (sold separately).
- USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Back-UPSĀ Features & Benefits
Protection
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.Marketing features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipmentSafety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.Manageability
Audible alarms
Provides notification of changing utility power and UPS power conditionsLED status display
Quickly understand unit and power status with visual indicators.Availability
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenanceIntelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.Product Distribution
United Arab Emirates, Botswana, France, United Kingdom, Ghana, Gambia, Hong Kong, Ireland, Jordan, Kenya, Malta, Malawi, Nigeria, Netherlands, Saudi Arabia, Sierra Leone, Tanzania, Yemen, Zambia, ZimbabweTechnical Specifications
Output
Max Configurable Power (Watts)
520Ā Watts /Ā 850VAEfficiency at Full Load
80.0 %Output Frequency (sync to mains)
47 – 63 Hz Sync to mains, 50/60 Hz +/- 1 Hz UnsynchronisedOther Output Voltages
220Topology
StandbyWaveform type
Stepped approximation to a sinewaveTransfer Time
6 ms typical : 10 ms maximumInput
Input frequency
47 – 63 HzInput voltage range for main operations
180 – 266VEfficiency at Full Load
80.0 %Batteries & Runtime
Battery type
Lead-acid batteryTypical recharge time
16hour(s)Replacement Battery
Expected Battery Life (years)
2 – 5Battery Charge Power (Watts)
6Ā WattsRuntime
Efficiency
Communications & Management
Interface Port(s)
USBControl panel
LED status display with on line : on battery : replace battery and overload indicatorsAudible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarmSurge Protection and Filtering
Surge energy rating
310JoulesData Line Protection
RJ45 analog phone line for phone/fax/modem/DSL, RJ45 network line – 10/100 base-T EthernetPhysical
Maximum Height
120MM, 12.0CMMaximum Width
130MM, 13.0CMMaximum Depth
365MM, 36.5CMNet Weight
4.5KGShipping weight
5.0KGShipping Height
190MM, 19.0CMShipping Width
186MM, 18.6CMShipping Depth
441MM, 44.1CMColor
BlackMaster Carton Dimensions (Length x Width x Height)
559 x 457 x 203MMMaster Carton Weight
16.0SCC Codes
10731304347320Environmental
Operating Temperature
0 – 40 Ā°COperating Relative Humidity
0 – 90 %Operating Elevation
0 – 914.4metersStorage Temperature
-15 – 45 Ā°CStorage Elevation
0 – 4572metersAudible noise at 1 meter from surface of unit
45.0dBAConformance
Approvals
CE, EACEquipment protection policy
Lifetime : 50000 GBPStandard warranty
2 years repair or replace, 3 years repair or replace for European Union countriesSustainable Offer Status
RoHS
Compliant - Adjustable voltage sensitivity
