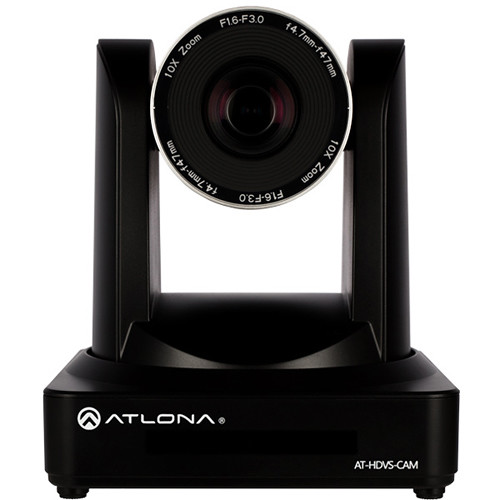

The black AT-HDVS-CAM PTZ Camera with USB from Altona is designed for use in soft codec conferencing applications. It features a USB 2.0 interface for video and camera control and a UVC driver for universal PC compatibility. The camera delivers high performance, professional-quality imaging with video resolutions up to 1080p at 30 Hz as well as fast and accurate auto-focusing and a fast yet quiet pan and tilt mechanism. The camera features a 1/2.8″ HD CMOS sensor, a multielement zoom lens with 10x optical zoom, and a 60.9° horizontal field of view. This PTZ camera is ideal for a wide range of small to medium-sized meeting spaces, classrooms, and training rooms.
Key Features
- Camera control available from soft codecs and UC clients such as Microsoft Teams, Zoom, BlueJeans, Slack, WebEx, and GoToMeeting
- Integrates with the OmegaSeries and OmniStream for a complete, automated conferencing system that includes AV and USB extension
- Up to 255 camera presets available, 10 accessible from IR remote
- Supports VISCA, Pelco-D, and Pelco-P camera control protocols
- Easy, GUI-based configuration using integrated web server
- TCP/IP, RS-232, USB, and IR control
- High-performance imaging, fine detail, and color rendering
- Camera can be mounted on a wall or inverted for ceiling installation with separately available ceiling mount kit
- Fast and accurate auto focus plus auto white balance and auto exposure modes
| Weight | 01.4 kg |
|---|
Atlona AT-HDVS-CAM Specs
Image Sensor
| Image Sensor | 1-Chip 1/2.8″ CMOS Sensor |
| Sensor Resolution | 1920 x 1080 (2.07 MP) |
| Signal-to-Noise Ratio | 55 dB |
Lens
| Optical Zoom Ratio | 10x |
| Focal Length | 4.7 to 47mm |
| Field of View | Horizontal: 60.9° Vertical: 6.43° |
| Maximum Aperture | f/1.6 to 3 |
| Focus Control | Autofocus Manual Focus |
Video Output
| Output Formats | USB: 1920 x 1080p at 30 fps |
Control
| Presets | 255 |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IR Pelco-D Pelco-P VISCA |
Interfaces
| Video Output Connectors | 1 x USB 2.0 Type-A |
| Control Interface | 1 x RJ45 (RS-232, VISCA) 1 x RJ45 (LAN) |
Power
| Power Consumption | Power Supply: 110 to 220 VDC at 1 A (12 W) |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
General
| Certifications | CE, FCC, as per Manufacturer |
| Dimensions | 6.6 x 5.9 x 5.9″ / 16.76 x 14.99 x 14.99 cm |
| Weight | 3.08 lb / 1.4 kg |
Packaging Info
| Package Weight | 6.55 lb |
| Box Dimensions (LxWxH) | 10.6 x 9.8 x 9.1″ |
