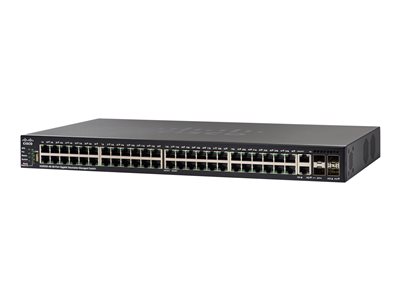

Cisco 550X Series SF550X-48MP – switch – 48 ports – managed – rack-mountable SF550X-48MP-K9-NA

Availability:

10 in stock


د.إ8,799.00

10 in stock

Cisco SF550X-48MP 48-Port 10/100 PoE Stackable Managed Switch



Overview

Cisco 550X series switches provide the advanced feature set that growing businesses require and that highbandwidth applications and technologies demand. These switches can improve the availability of your critical applications, protect your business information, and optimize your network bandwidth to more effectively deliver information and support applications. The switches provide the following benefits.

High-performance 10 Gigabit Ethernet

Cisco 550X series switches break the barrier of 10 Gigabit Ethernet adoption by providing affordable and flexible configurations customized for the demanding network requirements of small and medium businesses. With 10G copper ports on SG550XG switches, you can easily and cost-effectively enable 10G connections to servers and network storage devices with standard RJ45 Ethernet cable. You can also connect your SG550X access switches to the SG550XG aggregation with 10G SFP+ fiber, building a high-performance backbone to speed up the overall operation of your network.

High reliability and resiliency

In a growing business in which availability 24 hours a day, 7 days a week is critical, you need to assure that employees and customers can always access the data and resources whenever they need. In these environments, stackable switches can play an important role in eliminating downtime and improving network resiliency. For example, if a switch within a Cisco 550X series stack fails, another switch immediately takes over, keeping your network up and running. You can also replace individual devices in the stack without taking your network offline or affecting employee productivity.

Power over Ethernet Plus (PoE+) and 60 W PoE

Cisco 550X series switches support the Power over Ethernet Plus (PoE+) standard (IEEE 802.3at), providing up to 30 watts per port. The switches also support 60 W PoE on selected ports to power compact switches, high-power wireless access points, or connected lighting. The power is managed in a smart fashion such that only the amount of power the endpoint needs is delivered to it and not wasted. As a result, the switches can support devices that require more power, such as 802.11ac wireless access points, video-based IP phones, surveillance cameras, and more.

Power efficiency

The Cisco 550X series integrates a variety of power-saving features across all models, providing the industryā€™s most extensive energy-efficient switching portfolio. These switches are designed to conserve energy by optimizing power use, which helps protects the environment and reduce your energy costs. They provide an Eco-friendly network solution without compromising performance.

SKU: SF550X-48MP-K9-NA Category: Tags: , , ,

Specifications

General
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Rack-mountable
Subtype Fast Ethernet
Ports 48 x 10/100 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Switching capacity: 89.6 GbpsĀ Forwarding performance (64-byte packet size): 66.66 Mpps
Capacity IPv4 routes: 7000Ā IPv6 routes (static): 7000Ā VLANs supported: 4094Ā QoS hardware queues: 8
MAC Address Table Size 16K entries
Jumbo Frame Support 9000 bytes
Max Units In A Stack 8
Routing Protocol RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, CIDR
Remote Management Protocol SNMP 1, SNMP, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP
Encryption Algorithm MD5, SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Flow control, DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, IP-MAC binding, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 3MB packet buffer, IP source guard, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor X ARM: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan
Expansion / Connectivity
Interfaces 48 x 100Base-TX RJ-45 PoE+Ā 4 x 10GBase-X SFP+ uplinkĀ 2 x 10GBase-T RJ-45 uplinkĀ 1 x console RJ-45Ā 1 x USB Type A
Power
Power Device Internal power supply
Power Redundancy Yes
Power Redundancy Scheme 4+1
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Cables Included 1 x serial cable
Rack Mounting Kit Included
MTBF 472,180 hours
Compliant Standards UL 60950, FCC Part 15 A, CSA 22.2
Localization North America
Dimensions & Weight
Width 17.3 in
Depth 13.8 in
Height 1.7 in
Weight 11.38 lbs
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next business dayĀ Technical support – phone consulting – 1 yearĀ Technical support – web support – 1 year
Environmental Parameters
Min Operating Temperature 32 Ā°F
Max Operating Temperature 122 Ā°F
Humidity Range Operating 10 – 90% (non-condensing)
Min Storage Temperature -4 Ā°F
Max Storage Temperature 158 Ā°F
Humidity Range Storage 10 – 90% (non-condensing)
General
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Capacity IPv4 routes: 7000 Ā¦ IPv6 routes (static): 7000 Ā¦ VLANs supported: 4094 Ā¦ QoS hardware queues: 8
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Rack-mountable
Encryption Algorithm MD5, SSL
Features Flow control, DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, IP-MAC binding, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 3MB packet buffer, IP source guard, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP)
Flash Memory 256 MB
Jumbo Frame Support 9000 bytes
MAC Address Table Size 16K entries
Max Units In A Stack 8
Performance Switching capacity: 89.6 Gbps Ā¦ Forwarding performance (64-byte packet size): 66.66 Mpps
PoE Budget 740 W
Ports 48 x 10/100 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
Power Over Ethernet (PoE) PoE+
Processor X ARM: 800 MHz
RAM 512 MB
Remote Management Protocol SNMP 1, SNMP, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP
Routing Protocol RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, CIDR
Status Indicators Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan
Subtype Fast Ethernet
Dimensions & Weight
Depth 13.8 in
Height 1.7 in
Weight 11.38 lbs
Width 17.3 in
Environmental Parameters
Humidity Range Operating 10 – 90% (non-condensing)
Humidity Range Storage 10 – 90% (non-condensing)
Max Operating Temperature 122 Ā°F
Max Storage Temperature 158 Ā°F
Min Operating Temperature 32 Ā°F
Min Storage Temperature -4 Ā°F
Expansion / Connectivity
Interfaces 48 x 100Base-TX RJ-45 PoE+ Ā¦ 4 x 10GBase-X SFP+ uplink Ā¦ 2 x 10GBase-T RJ-45 uplink Ā¦ 1 x console RJ-45 Ā¦ 1 x USB Type A
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next business day Ā¦ Technical support – phone consulting – 1 year Ā¦ Technical support – web support – 1 year
Miscellaneous
Cables Included 1 x serial cable
Compliant Standards UL 60950, FCC Part 15 A, CSA 22.2
Localization North America
MTBF 472,180 hours
Rack Mounting Kit Included
Power
Power Device Internal power supply
Power Redundancy Yes
Power Redundancy Scheme 4+1
Voltage Required AC 120/230 V (50/60 Hz)
