Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License C9500-48Y4C-A

Availability:

10 in stock


د.إ94,099.00

10 in stock

Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License

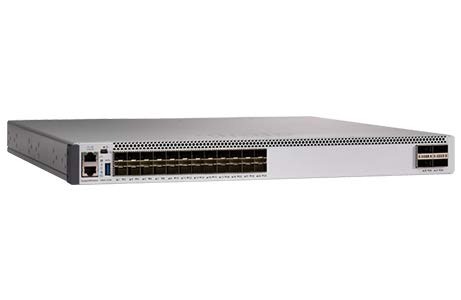

Cisco Catalyst C9500-48Y4C-A Switch

High-density advanced services in a compact form factor

The Cisco Catalyst 9500 Series is the first 100/40-Gbps switch purpose built for the enterprise campus. It was recently recognized as CRN’s 2017 Overall Network Product of the Year. Designed for security, the Internet of Things (IoT), and the cloud, Catalyst 9500 fixed-core switches are high-density building blocks for a next-generation, intent-based network.

Features and benefits

Defense across the attack continuum

The advanced capabilities of Catalyst 9500 switches help protect your organization before, during, and after an attack. Reduce your attack surface with Cisco trustworthy systems and MACsec 256-bit encryption. Enhance malware detection and rapid threat containment.

IoT readiness

The series delivers IoT convergence with industry-leading scale and capabilities. You get trustworthy security; support for Audio Visual Bridging (AVB) and the IEEE 1588 standard; service discovery; and IoT classification.

Cloud readiness

Simplify, help secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the network edge and extends to where applications reside.

Foundational technology

These core switches support high-density 100 G, 40 G, 25 G, and availability patching; graceful insertion and removal (GIR); and NSF/SSO, plus redundant, platinum-rated power supplies and fans. They also support advanced routing and infrastructure services.

Business architecture optimization services

Make the most of your network investment using performance, benchmarking, deployment, and incident trending analytics to intelligently run your network.

C9500-48Y4C-A Specification

Performance specifications

Switching capacity

Up to 1.6 Tbps

Forwarding rate

Up to 1 Bpps

Total number of MAC addresses

Up to 82,000

Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)

Up to 212,000 indirect + direct

Up to 90,000 host/ARP

Total number of IPv6 routes

Up to 212,000 indirect + direct

Up to 90,000 host

QoS ACL scale

Up to 16000

Security ACL scale

Up to 27000

FNF entries

Up to 98,000

DRAM

16 GB

Flash

16 GB

VLAN IDs

4000

Total Switched Virtual Interfaces (SVIs)

4000

Jumbo frame

9216 bytes

Power supply specifications

Power Supply Selection

C9K-PWR-650WAC-R or C9K-PWR-930WDC-R

Dimensions, physical specifications, weight, and MTBF

Dimensions (H x W x D)

1.73 x 17.5 x 18.0 in

Rack units (RU)

1 RU

Chassis with 2 power supplies and built-In fan

21.96 lb (9.96 kg)

Input voltage

90 to 264 VAC

Operating temperature

32Ā° to 104Ā°F (0Ā° to 40Ā°C)

Storage temperature

-4Ā° to 149Ā°F (-20Ā° to 65Ā°C)

Relative humidity operating and nonoperating noncondensing

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Altitude

Operation up to 13,000 feet atĀ 40Ā°C

MTBF (hours)

316,960
