Ensemble Designs BrightEye 1 Analog-SDI to SDI-Optical Converter with TBC and Frame Sync

Add to Wishlist

AED7,699.00

Add to Wishlist

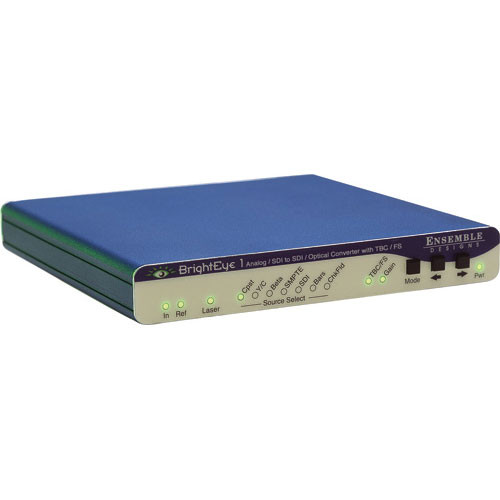

The BrightEye 1 Analog-SDI to SDI-Optical Converter with TBC and Frame Sync from Ensemble Designs is a device designed to convert analog component, analog composite S-video (Y/C), and SDI video inputs into simultaneous SDI (electrical) and optical outputs. Front-panel controls allow you to select the input source and format, as well as adjust video gain. Video levels can also be adjusted through the BrightEye software package included with the unit, and which isĀ compatible with both Windows and Mac operating systems.

A built-in time-base corrector & frame synchronizer provide steady output, even with marginal inputs. Reference input on the converter is used to genlock its output to house reference a color, such as black. Also included are color bars and SDI checkfield (pathological) test patterns to facilitate transmission path testing. This unit offers 12-bit resolution.

Analog-SDI to SDI-Optical Conversion
Use this device to convert analog component, analog composite S-video (Y/C), and SDI video inputs into simultaneous SDI (electrical) and optical outputs.
Controls
The unit can be controlled through the push buttons on the converter’s faceplate or through the proprietary software package included with the unit.
OS Compatibility
The converter will work on both Windows and Mac operating systems.
TBC, Frame Synchronizer & Genlock
This model features a built-in time-base corrector, a frame synchronizer, and genlock to ensure solid high-quality output.
Transmission Path Testing
Color bars and SDI checkfield (pathological) test patterns are included for transmission path testing.
12-Bit Resolution
The unit offers 12-bit resolution.
SKU: BE1 Category: Tag:
Construction
Metal, plastic
Finish
Blue, silver
Inputs
SERIAL DIGITAL INPUT
Quantity: x1
Signal type: 270Mb/s SD serial digital (SMPTE 259M)
Impedance: 75Ī©
Return Loss: >15dB
Maximum cable length: 300m

ANALOG INPUT
Quantity: x1
Type:
Beta/SMPTE, Y, Pr, Pb
NTSC, PAL composite
NTSC, PAL S-video
Impedance: 75Ī©
Return loss: >40dB
Input: DC +/-1VDC
Input hum: <100mV
Outputs
SERIAL DIGITAL OUTPUT
Quantity: x1
Type: 270Mb/s SD serial digital (SMPTE 259M)
Impedance: 75Ī©
Return loss: >15dB
Output: DC none (AC coupled)

OPTICAL OUTPUT
Quantity: x1
Type: 270Mb/s SD serial digital (SMPTE 259M), (Optical equivalent of 259M)
Wavelength: 1310nm
Power: ā€“7dBm
Maximum length: 20km
Fiber Type:
Single-mode
Multi-mode compatible with 8dB attenuation at transmit end
Connector: SC
Conversion
ANALOG-to-SDI PERFORMANCE
Bit resolution:
12-bit input quantization
4x oversampling
Signal to noise: >62dB, weighted
Frequency response:
Composite and Y Ā±0.1 dB, 0 to 5.5MHz
Pr, Pb Ā±0.1 dB, 0 to 2.75MHz
Minimum delay: 90 Ī¼Sec

REFERENCE INPUT
Quantity: x1
Type: 1Vp-p composite video, PAL or NTSC
Impedance: 75Ī©
Return loss: >40dB
Power
12V, 7W

*100 to 230VAC modular power supply not included
Dimensions
0.8 x 5.625 x 5.5″ ( 20 x 143 x 140mm)
Weight
Not specified by manufacturer
Packaging Info
Package Weight
1.315 lb
Box Dimensions (LxWxH)
8.8 x 7.9 x 2.4″
