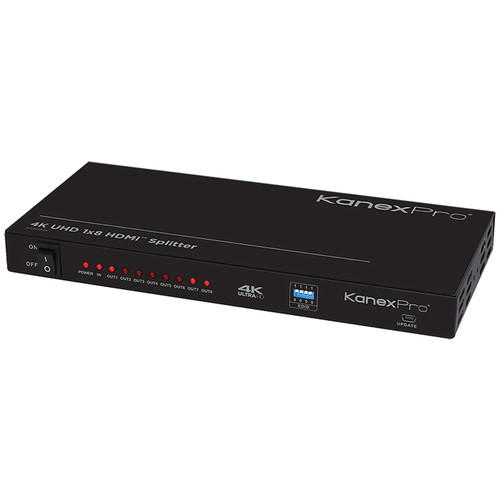

KanexPro 1 x 8 4K HDMI Distribution Amplifier HDSP184K

Availability:

10 in stock


د.إ699.00

10 in stock

KanexProĀ 1 x 8 4K HDMI Distribution Amplifier



Product Highlights

  • Supports UHD 3840 x 2160 & 3D Video
  • Compatible with Computer Resolutions
  • Supports Multi-Channel Audio
  • HDCP 2.2 Compliant
  • Smart EDID Management
  • Amplifier Sends HDMI Signals up to 50′
  • 5 VDC Power Supply Included
  • LED Status Indicators



KanexPro HDSP184K Overview

Supporting HD and UHD resolutions, theĀ KanexPro 1 x 8 4K HDMI Distribution AmplifierĀ splits a single HDMI signal for identical output on up to 8 displays simultaneously with smart EDID management and while maintaining HDCP 2.2 protocol. Computer resolutions like 1920 x 1200 are also supported. Audio information, including multi-channel surround sound audio in various formats, also remains intact. The built-in signal amplifier can send HDMI signals up to 50 feet, but for longer cable runs, HDBaseT extenders are recommended. This unit is lightweight and sized for permanent mounting or portable use.



Features

Distribute 4K HDMI video and audio signals to up to 8 displays
Supports full HD 1080p and UHD resolutions
Conforms to High-Speed HDMI specifications, maintaining Deep Color, HD lossless audio formats, and lip sync information
Audio support includes Dolby Digital, DTS-HD, DTS-HD Master Audio, Dolby TrueHD, and LPCM 7.1 channel audio
HDCP 2.2 Compliant
Built-in smart EDID control
HDMI audio
Front panel LEDs for input/output signal presence

KanexPro HDSP184K Specs

I/O Inputs: 1 x HDMI
Outputs: 8 x HDMI
Video Amplifier Bandwidth 10.2 Gbps
Video Format Support 2D max resolution – 3840 x 2160:
up to 30p at 24-bit RGB/YCbCr 4:4:4/YCbCr 4:2:2
up to 60p at 12-bit YCbCr 4:2:0

3D max resolution – 1920 x 1080:
&npsp;up to 60p (frame sequential)

Color Depth 12 bits per channel and xvYCC color space
Input DC Current 5 V
Compliance FCC, CE, UL
Operating Temperature 32 to 158Ā°F / 0 to 70Ā°C
Dimensions 9.25 x 3.3 x 0.6″ / 234 x 84 x 15 mm
Weight 0.8 lb / 360 g
Packaging Info
Package Weight 2.38 lb
Box Dimensions (LxWxH) 11.9 x 9.45 x 2.45″
