4−Input – VGA, DVI, HDMI, DP – Video over CAT6/HDBaseT Extender(Transmitter) + Step In Remote
SID-X2N is an HDBaseT twisted pair transmitter and step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals.
SID-X2N, a four-in-one twisted pair transmitter, high-performance, cost-effective, step-in commander includes four input types: VGA, HDMI, DVI and DisplayPort. In addition, SID-X2N includes an unbalanced stereo audio input and output.

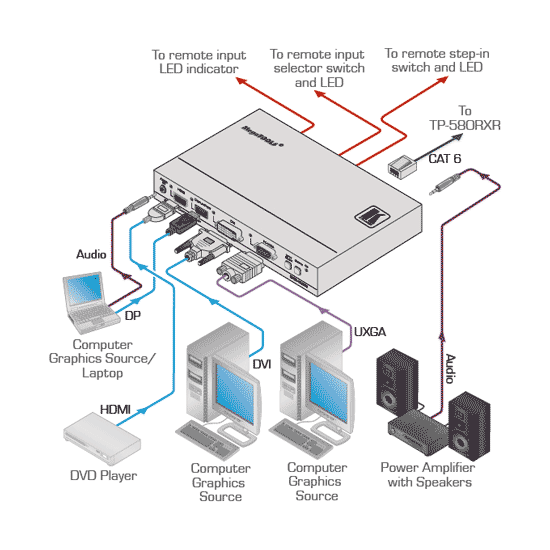

SID-X2N works as a stand-alone unit together with the HDBaseT receivers, e.g. the TP-580RXR/WP-580RXR, using RS-232 commands over a twisted pair cable. Although this product can be used with any CAT cable, Kramer recommends the use of the BC-HDKat6a cable, to reach up to 130m (430ft) in normal mode, and up to 180m (590ft) in XTRA (Long Reach) mode (1080p @60Hz @24BPP).
SID-X2N all-in-one transmitter has several unique features making it the perfect solution for designing your state-of-the-art boardroom: compatible with both analog and digital AV signals, unbalanced stereo audio input and output, a single twisted pair cable carries both data and control, switching between inputs is available when working with an HDBaseT receiver using RS-232 commands.
- Max. Data Rate – 6.75Gbps (up to 1080p @60Hz 36bpp) in normal mode; up to 4.95Gbps (up to 1080p @60Hz 24bpp) in ultra mode.
- HDTV Compatible.
- HDCP Compliant – Works with sources that support HDCP repeater mode.
- HDMI Support – Deep Color, x.v.Color and 3D.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
- Data Equalization and Reclocking.
- Input Signal Detection – Based on video clock presence.
- Automatic Input Selection – Based on manual selection or last connected input.
- Automatic Analog Audio Detection and Embedding.
- Local Balanced Audio De-Embedding.
- Support for Digital Audio Formats.
- Lockable EDID.
- System Range – Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables.
- Local Step-In Switching – Button & contact closure.
- Power Supply – Requires independent power supply.
- Size – Compact MegaTOOLS – 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
**Note: The SID-X2N does not work with unshielded CATx cables
Mechanical | |
Deminsions | 18.8cm x 11.3cm x 2.5cm (7.4″ x 4.5″ x 1″)W, D, H (rack−mountable) |
Rack Units | 1U (with Optional RK-T2B 19″ rack adapter) |
Power | 12V DC, 950mA CE, UL Compliance |
Control | Front panel buttons, remote step−in switch, remote input selection switches, RS−232. |
Video | |
Video Input | 1 HDMI on an HDMI connector 1 DP on a DisplayPort connector 1 DVI−D on a DVI−I connector 1 VGA on a 15−pin HD (F) connector 1 unbalanced stereo audio on a 3.5mm mini jack |
Video Output | 1 HDBaseT TP on an RJ−45 1 unbalanced stereo audio in a 3.5mm mini jack |
Max Data Rate | 4.95Gbps (1.65Gb per graphics channel). |
Max Distance | 180m (590ft) up to 1080p @60Hz @24bpp in extended mode 130m (430ft) up to 1080p @60 @36bpp in normal mode. |
Enviroment | |
Operating Temp | 32° to 104°F (0° to +40°C) |
Storage Temp | –40° to +70°C (–40° to 158°F) |
Humidity | 10% to 90%, RHL non−condensing |
