HDMI, Bidirectional RS-232 & IR over Extended Range HDBaseT Twisted Pair Transmitter

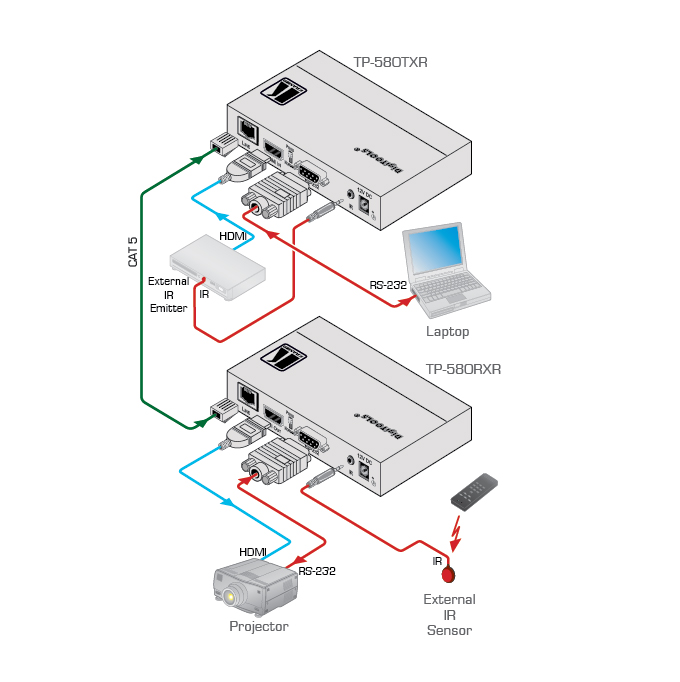

The TP-580TXR is an extended range, HDBaseT twisted pair transmitter for HDMI, bidirectional RS-232 and IR signals. The TP-580TXR inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to aĀ TP-580RXR receiver.
Product Features and Benefits
- Max. Data Rate – 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT Technology.
- HDMI Support – Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
- 3D Pass-Through.
- EDID PassThru – Passes EDID signals between the source and display.
- 2K & 4K Support.
- Bidirectional RS-232 & IR Interface. – Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit.
- System Range – 70m (230ft) at 2K, 40m (130ft) at 4K (UHD) resolutions.
- Indicators – Status LEDs for input, output, link and power.
- Compact DigiTOOLS – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter.
Mechanical | Ā |
Width | 4.72 in (12 cm) |
Height | 0.96 in. (2.44 cm) |
Depth | 2.81 in. (7.15 cm) |
Weight | 0.4 lbs (0.2 kg) |
Video | Ā |
Inputs | 1 HDMI connector. |
Outputs | 1 HDBaseT twisted pair RJ-45 connector. |
Ports | 1 IR on a 3.5mm mini jack, 1 RS-232 on a 9-pin D-sub connector. |
Bandwidth | 10.2Gbps (3.4Gbps per graphic channel). |
RS-232 Baud Rate | 115200 |
Compliance | Supports HDMI and HDCP |
Power | Ā |
Consumption | 12V DC, 295mA. |
Power Supply | Included |
Environmental | Ā |
Operating Temperature | 32 – 104Ā°F (0 – 40Ā°C) |
Storage Temperature | -40 – 158Ā°F (-40 – 70Ā°C) |
Humidity | 10% to 90%, RHL non-condensing |
