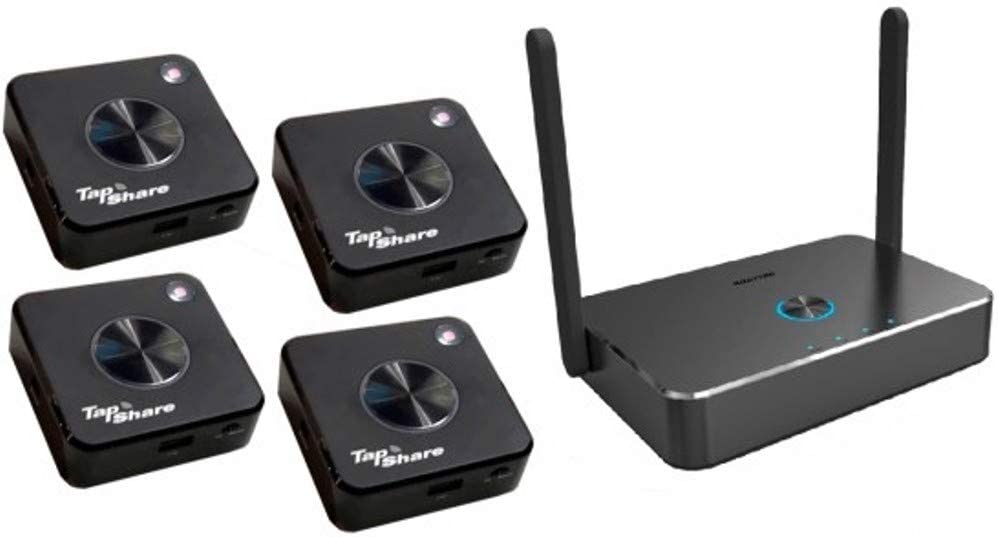

Lumens TapShare TS20 Wireless Presentation System with Four Transmitter Pods

Add to Wishlist

د.إ7,999.00

Add to Wishlist
Key Features
  • Allows Wired or Wireless Streaming
  • Up to DCI 4K Resolution at 24 Hz
  • HDMI & Mini DisplayPort Inputs
  • HDMI Output
  • Up to 4-Source Split Screen

Lumens TS20 Overview

Share presentations securely via Wi-Fi or Ethernet with the Lumens TapShare TS20 Wireless Presentation System. It includes four transmitter pods and enables wireless or wired streaming of media at up to 4K resolution. Each TapShare Pod has an HDMI and Mini DisplayPort input to support a variety of device types. Since it transmits video via its own Wi-Fi network or Ethernet, presenting in locations where network security is a priority is virtually hassle-free.

Designed for Easy Installation & Use

The TapShare system features a plug-and-play design and doesn’t need additional software or drivers. The Pod features a single button, the tap of which initiates immediate projection via Wi-Fi. iOS devices require the connection of just one cable.

Supports Split-Screen Display of up to Four Sources

The TapShare allows up to four input sources to share the screen.

Engineered for Easy Management

The host can manage the display and content from different sources with the host control system.

Enhanced Compatibility

The TapShare supports any input device with HDMI or DisplayPort with resolutions up to 4K.

WPA/WPA2 Security

The TapShare system supports WPA/WPA2 security, transmitting over its own Wi-Fi network, plus a wired connectivity option that supports PoE.
SKU: TS20 4T1R Category: Tag:

Lumens TS20 Specs

Transmission Range Not Specified by Manufacturer
Connections Transmitter:
1 x HDMI In
1 x Mini DisplayPort In
1 x USB Type-A
1 x RJ45 Ethernet LAN

Receiver:
1 x HDMI Out
1 x USB Type-A
1 x RJ45 Ethernet LAN
Resolution Output Up to 4096 x 2160 @ 24 Hz
3840 x 2160 @ 30 Hz
1920 x 1080 @ 60 Hz
Wi-Fi Protocol Wi-Fi 5 (IEEE 802.11ac)
Wi-Fi Bands 5 GHz
Wi-Fi Security WPA/WPA2
AirPlay Yes
Simultaneous Sources on Screen 4
Simultaneous Connections 64
Power Requirements Transmitter: 5 VDC / 1 A via USB 2.0 or PoE (IEEE 802.3AT)
Receiver: 5 VDC / 2 A via DC or PoE (IEEE 802.3AT)
Dimensions (W x H x D) Transmitter: 3.1 x 0.9 x 3.1″ / 80 x 25 x 80 mm
Receiver: 5.5 x 0.9 x 3.3″ / 140 x 25 x 85 mm
Weight Not Specified by Manufacturer
