Optoma W501 5000 ANSI Lumens WXGA HD Ready Projector W501
Availability:
30 in stock
د.إ6,699.00
30 in stock
Optoma W501 5000 ANSI Lumens WXGA HD Ready Projector
The Optoma W501 was designed to deliver unsurpassed performance and reliability to meet your installation needs. Its powerful 5000 lumens output and impressive 15,000:1 contrast ratio deliver remarkably bright presentations with sharp text and color-rich graphics.
To ensure it will perform to your current and future needs, the W501 features a comprehensive I/O panel and the most advanced feature sets in its class. Outstanding features on this remarkable product include HDMI and DVI for digital connectivity, over-the-network presentation capability, wireless presentation capability via optional USB dongle, vertical lens shift and discrete audio inputs including microphone input for maximum installation convenience.
Effortless presenting

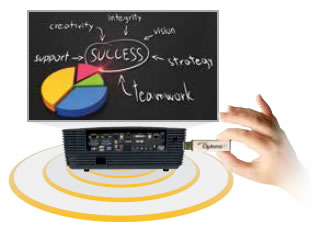

Enjoy hassle-free presenting using the USB Reader to project a JPEG presentation directly from a USB flash drive.

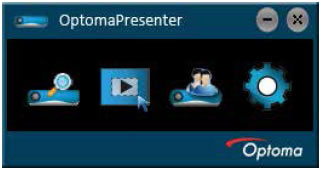

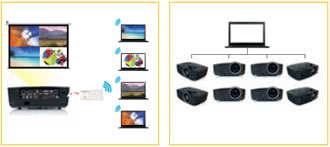

Alternatively view up to 4 PC/Laptops side-by-side at the same time, using the free Optoma Presenter software…
…or even broadcast your presentation across a wired/wireless network to as many as 8 projectors simultaneously.

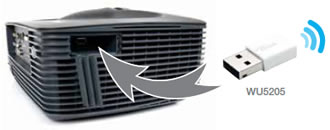

Wireless support requires the optional Optoma mini-WiFi dongle accessory, available separately.
3D Technology
Using the inherent speed of DLP® technology, Optoma Full 3D projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D. The 3D effect is generated by splitting this signal into two standard video streams, one for each eye. Using DLP® Link™ technology, the 3D glasses synchronise with the image on screen to filter each stream to the correct eye. Your brain then combines the two streams to make them jump into life.
The W501 supports multiple 3D formats from various devices such as PC, Blu-ray 3D™, Sony® PS3, Microsoft® Xbox 360 or 3D TV broadcast systems.
True WXGA Resolution
Documents and presentations will appear as sharp and detailed as they do on your widescreen laptop in WXGA (1280 x 800) resolution, which also gives you 30% more pixels than an equivalent XGA projector.
XGA
WXGA
Extensive Connectivity
This Full HD projector accepts a wide variety of computer and video input signals. Connectivity includes: HDMI, DVI-D, dual VGA (Component via adaptor), S-Video, Composite, USB Reader, VGA-Out, RS232, RJ45 and +12V trigger. In addition the optional Wi-Fi accessory can be securely connected to a dedicated hidden USB port.
Five audio inputs for HDMI, PC, video and microphone sources enable the W501 to function not only as an audio switcher and volume controller, but also as a basic PA system for larger meeting rooms; thereby eliminating complicated and costly additional audio hardware and cabling.
HD Source
DVD Player
2 x PC/Laptop
Amazing Colours
The W501 incorporates BrilliantColor™ technology to produce stunningly bright images with perfectly balanced, life-like colours.
Easy installation – 1.5x zoom and Lens Shift

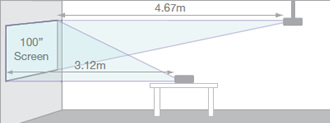

The W501 can project a 100” diagonal image from any distance between 3.12m and 4.67m. The Lens Shift system can be used to adjust the vertical position of the projected image within the range detailed in the diagrams below.
When replacing existing projectors, the 1.5x zoom and Lens Shift systems greatly increase your installation flexibility.
+132% offset
Lens Shift
+112% offset
DICOM simulation mode
Designed specifically for larger meeting rooms and lecture theatres, the EH501 includes a special DICOMsim mode that has been specially tuned for viewing greyscale images, perfect for viewing X-rays and scans during medical training.*
*The W501 is not suitable for use in medical diagnosis.
Clear, focused Images
DarkChip3™ from Texas Instruments, combined with Eco+ dynamic lamp technology produce a stunning 15,000:1 contrast ratio for pin sharp graphics and crystal clear text. Crisper whites, ultra-rich blacks makes images come alive and text easier to read – ideal for business and education presentations.
15,000:1 Contrast Ratio
System integration and control
Using the free Crestron Roomview software, multiple W501 can be monitored over LAN and also provide the user with an email message alert in case an error occurs or a lamp fails. Cut up to 30% from your energy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.
The web browser interface and full support for Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols, allow almost all aspects of the W501 to be controlled across a network, reducing installation costs and keeping you in control, wherever you are. While RS-232 connectivity ensures legacy support for existing control systems.
Global monitoring of all AV devices
Track projector lamp life
Email alerts and instant notifications help desk requests, service reminders, device failure or theft
Event Scheduling
Projector 1
Projector 2
Projector 3
Laptop
Centralised Management PC
Easy lamp replacement
In applications requiring smooth continuous operation, minimising service time is essential. The W501 lamp can quickly be replaced without the need to remove the projector from where it is installed.
+12v Trigger

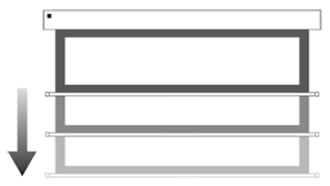

Power on both your projector and screen at the touch of a single button. For ultimate convenience, connect an Optoma electric screen directly to your W501.
For more info on Optoma screens, please visit www.optomaeurope.com
Extra features
Direct and Signal Power ON –Start up time can be significantly reduced if standby mode is bypassed, eliminating the need to use the ‘Power’ button on the remote control or the projector keypad.
Direct Power ONswitches the projector on when the power cable is inserted into an active power outlet.
Signal Power Onswitches the projector on when an active VGA source is connected to the unit.
Key pad lock –once enabled prevents unauthorised adjustments ensuring the projector can only be controlled via the remote control.
Logo capture – customise your start up screen
Easy to use remote with laser pointer, mouse control and 1.2kg direct source selection
Green solutions
Eco+ technology from Optoma increases our commitment to reducing the impact we all make on the environment
Eco+ mode
Saving energy, saves money! Eco+ technology reduces the power consumption to as little as 30%. This intelligent feature also has a positive effect on the lamp life, increasing it up to 70% while lowering the total cost of ownership and reducing maintenance*.
Bright mode
100%
Eco mode
80%
Eco_sup+
Power Consumption
30%
Dynamically adjusts the brightness and power consumption
Bright scene
~ 100% Power consumption
~ 100% Power consumption
Dark scene
~ 30% Power consumption
~ 30% Power consumption
Auto power off
There may be instances when the projector is left running when not in use. To help save energy if the projector is left running and no source is detected, the “Auto Power Off” feature automatically turns off the projector after a set period of time.
Eco AV mute
Stay in control of your presentation with the Eco AV mute feature. Direct your audience’s attention away from the screen by blanking the image when no longer needed. This also instantly reduces the power consumption to 30%, further prolonging the life of your lamp.
Eco AV mute off
100% Power consumption
100% Power consumption
Eco AV mute on
30% Power consumption
30% Power consumption
Environmentally friendly
To achieve the maximum 6500hrs2 lamp life, the projector should be operating in Eco+ mode and the auto power off feature should be enabled to automatically switch off the projector if it is accidentally left on. Enabling the <0.5W standby mode ensures the minimum energy consumption when the projector is not switched on.
We know that improving our products is the best way to reduce our impact on the environment. That’s why at Optoma, we design our products to have a long usable life, use fewer materials, ship with the minimum packaging and be free of all possible toxic substances. Naturally, energy efficiency and being recyclable are built in at the design stage. With each new product, we strive towards minimising our environmental impact. For full details of Optoma Project Green please visit our website.
| Display Technology | Single 0.65Źŗ DC3 DMD DLP® Technology by Texas Instruments™ |
| Native Resolution | WXGA (1280 x 800) |
| Maximum Resolution | VGA: UXGA (1600 x 1200) HDMI: HD (1920 x 1080) |
| Brightness | 5000 lumens |
| Contrast Ratio | 15,000:1 (full on/full off) |
| Displayable Colors | 1.07 Billion |
| Lamp Life and Type | 4000/3000/2500 Hours (ECO+/ECO/normal) 280W |
| Projection Method | Front, rear, ceiling mount, table top |
| Keystone Correction | Auto Keystone, ±40° Vertical |
| Uniformity | >85% |
| Aspect Ratio | 16:10 Native, 16:9 and 4:3 compatible |
| Throw Ratio | 1.45–2.17 |
| Projection Distance | 3.3Ź¹–32.8Ź¹ (1–10 m) |
| Image Size (Diagonal) | 23.4Źŗ–300Źŗ (0.6–7.6 m) |
| Projection Lens | F=2.42 ~ 2.98, f=20.77 ~ 31.13 mm, 1.5x manual zoom and focus |
| Lens Shift | Vertical 112% ~ 118% offset |
| Audio | Two 15-Watt speakers |
| Noise Level | 27dB |
| Remote Control | IR remote mouse with laser |
| Operating Temperature | 41–113°F (5–45°C), 85% max humidity |
| Power Supply | AC input 100–240V, 50–60Hz, auto-switching |
| Power Consumption | Max 355W (Normal), Min 279W (Eco+), <0.5W (standby-ECO) |
| Computer Compatibility | UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA resized, VESA, PC and Macintosh compatible |
| Video Input Compatibility | NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p) |
| 3D Compatibility | Top and bottom, side by side, frame packing, HQFS (See user manual for details). 3D glasses are needed and sold separately. |
| Vertical Scan Rate | 24–85Hz, 120Hz, 144Hz |
| Horizontal Scan Rate | 15.3–91.1KHz |
| User Controls | Complete on-screen menu, adjustments in 27 languages |
| I/O Connectors | HDMI v1.4, DVI-D, two VGA-in, VGA-out, S-video, composite video, two stereo audio-in, stereo RCA audio-in, mic-in, stereo audio-out, RJ45, RS-232C, Two USB-A, Two USB-B, 12v trigger |
| Loop Through | Monitor: D-Sub 15 pin VGA output Audio-out: Stereo 3.5 mm mini-jack (functional in both normal and standby modes) |
| Security | Kensington® Lock Port, security bar and keypad lock |
| Product Weight | 9.9 lb (4.5 kg) |
| Product Dimensions (W x H x D) | 15.2Źŗ x 6Źŗ x 11Źŗ (386 x 152 x 279 mm) |
| Warranty | 3-Year Optoma Express Service, 1-Year on Lamp |
| What’s in the Box | AC power cord, VGA to VGA cable, remote control, batteries for remote, multilingual CD-ROM user’s manual, quick start card and warranty card |
| Optional Accessories | HDMI cable, ceiling mount, VGA to component cable, RS-232 cable and Optoma screens |
| Accessory Part Numbers | Lamp: BL-FU310A Mount: BM-5001U Remote: BR-5046L USB Adapter: BI-EXTBGN DLP Link 3D Glasses: BG-ZD301 |
| UPC | 796435 41 802 1 |
