Key Features
- For Broadcasting and Presentations
- 2.4 GHz Frequency
- Plug-and-Play for Mac and Windows
- Works with iPhone/iPad & Android Devices
Samson SWXPD2BDE5 Overview

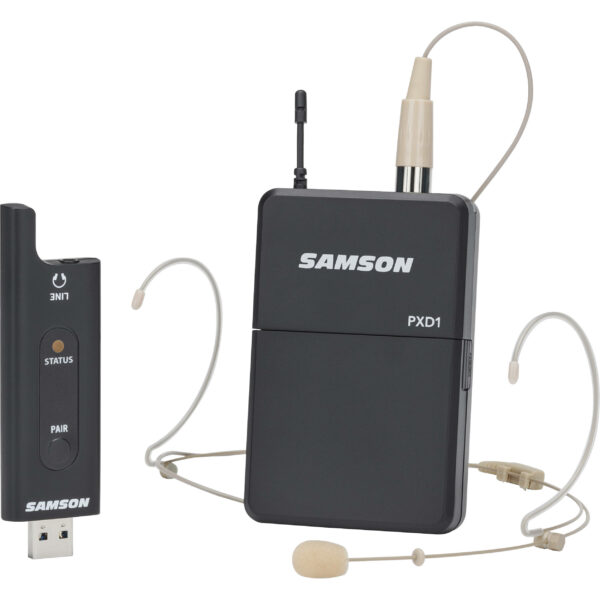

The XPD2 Headset USB Digital Wireless System from Samson is a 2.4 GHz, portable wireless bodypack transmitter and headset microphone with a USB stick receiver. It can be used to capture audio for broadcast, presentation, and live sound applications and more.
The XPD2 offers simple setup, professional full-range audio, and 100′ of wireless operation. The RXD2 USB stick receiver connects directly to Windows or Mac computers, or with any Samson Expedition Series portable PA system (sold separately) that features a USB wireless port. A 1/8″ output allows for headphone monitoring or connection to any device with an analog line input, including smartphones and other mobile devices.
Furthermore, the XPD2 wireless system delivers audio via digital transmission, which enables the DE5 micro headset microphone and PXD1 bodypack transmitter to send an uncompressed signal to the receiver. The result is greater signal-to-noise when compared to a traditional wireless system, and a performance that sounds as good as using a wired microphone.
2.4 GHz USB digital wireless system
Ideal for broadcasting, live streaming, presentations, and more

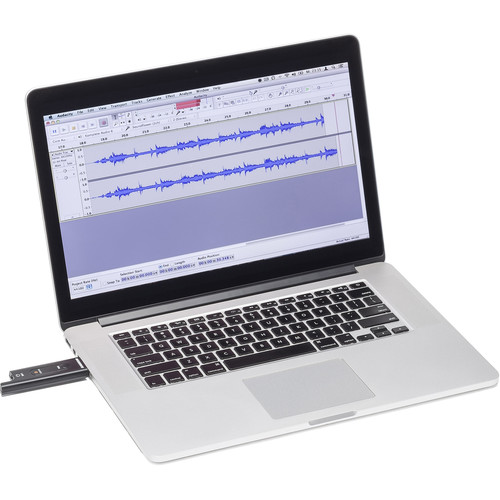

Plug-and-play operation with Mac and Windows

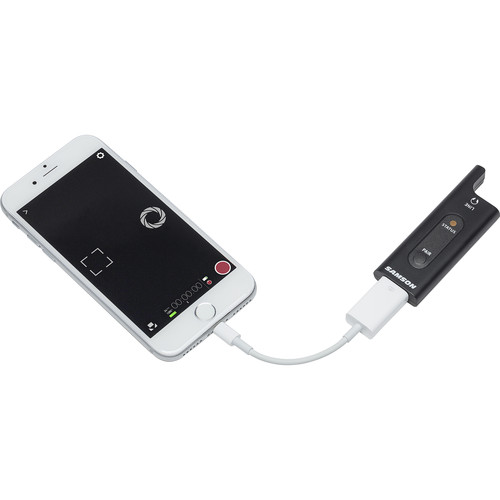

Works with iPhone/iPad via Apple’s Lightning to USB Camera Adapter
Works with Android devices via a host OTG adapter

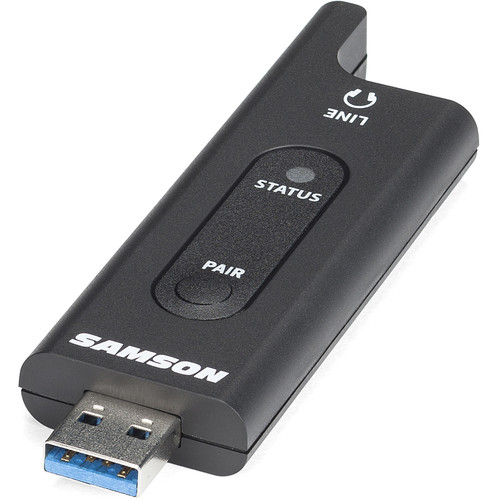

RXD2 USB stick receiver
Receiver features a 3.5mm headphone/monitor output

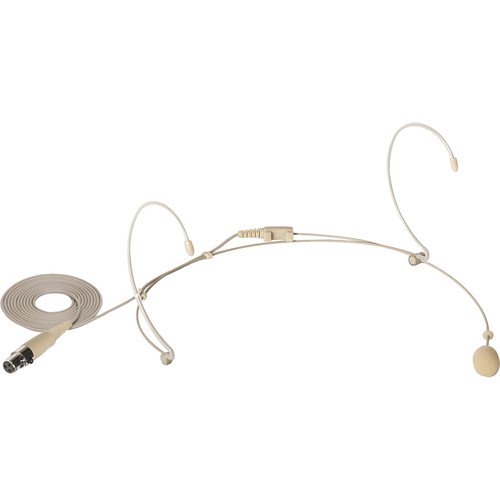

PXD1 beltpack transmitter with Samson DE5 Micro Headset microphone
Transmitter offers 20 hours of battery life using two AA batteries (not included)
100′ operating range (line of sight, environment dependent)
1-touch pairing, adjustable volume controls on transmitter
Compatible with Samson Expedition Series Portable PAs that feature USB wireless ports
Includes a USB extension cable
| Weight | 0.10 kg |
|---|
Samson SWXPD2BDE5 Specs
System
| # Of Simultaneous Systems | 2 |
| Working Range | 100′ line of sight |
| Working Frequency | 2.404~2.476 GHz |
| Modulation Type | GFSK |
| Audio Frequency Response | 20 Hz to 17 kHz (-1 dB) |
| Total Harmonic Distortion (THD) | |
| Signal to Noise | >85 dB |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
Beltpack Transmitter
| Input Connector | Mini-XLR (P3) |
| RF Power | |
| Power Requirements | 2 x AA (LR6) alkaline batteries |
| Battery Life | 20 hours |
| Audio Sample Rate | 32 kHz |
| Dimensions (L x Diam) | 3.75 x 2.44 x 0.75″ / 9.53 x 6.2 x 1.91 cm |
| Weight | 0.2 lb / 0.1 kg |
Receiver
| Maximum Audio Output Level Analog | 9 dBu |
| Headphone Output | 22 mW into 16 or 32 Ohms |
| Operating Voltage | 5 VDC |
| Dimensions (L x D x H) | 3.5 x 0.9 x 0.3″ / 8.9 x 2.3 x 0.8 cm |
| Weight | 0.35 oz / 10 g |
Packaging Info
| Package Weight | 0.6 lb |
| Box Dimensions (LxWxH) | 7.4 x 6 x 2.7″ |
