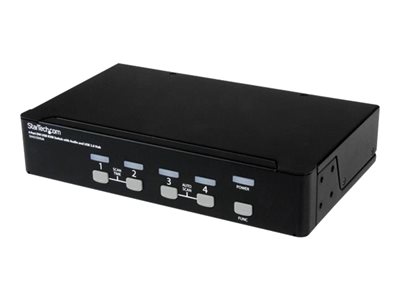

StarTech.com 4 Port DVI USB KVM Switch with Audio and 2 port USB 2.0 Hub – KVM / audio / USB switch – 4 ports SV431DVIUA
Availability:
10 in stock
د.إ1,099.00
10 in stock
StarTech.com 4-Port DVI USB KVM Switch with Audio
- 4-port DVI USB KVM switch with audio and microphone switching and 2 x USB 2.0 hub ports
- Channel selection/Hub port control by front-panel push buttons
- DVI interface technology supports digital video signal transmission
- Independent/simultaneous audio & mic channel and PC port selection
- USB keyboard and mouse support
- HDCP Compliant
Built-in 4-port USB 2.0 device hub for sharing high-speed USB devices
This 4 port DVI USB KVM Switch lets you control four USB enabled, DVI capable computers from a single USB keyboard and mouse peripheral set.
Versatile compliance with USB 2.0 and older versions
An economical solution that lets you use USB peripherals between computers (when selected) without the expense of buying individual peripherals for each slave computer.
Perfect for demanding high resolution applications (2560×1600 @60 Hz (Analog)
The DVI USB KVM switch features an integrated USB 2.0 hub which allows you to use shared USB peripherals from the control point as if the devices were connected directly to the slave computers.
Overview
Share keyboard, mouse, speakers and a DVI display between four multimedia computers. This 4 port DVI USB KVM Switch lets you control four USB enabled, DVI capable computers from a single USB keyboard and mouse peripheral set.
Ideal for multimedia applications, the switch supports audio and microphone switching, allowing you to switch between audio/mic channels either independently or simultaneously when switching between computers for KVM control.
The DVI USB KVM switch features an integrated USB 2.0 hub which allows you to use shared USB peripherals from the control point as if the devices were connected directly to the slave computers – an economical solution that lets you use USB peripherals between computers (when selected) without the expense of buying individual peripherals for each slave computer.
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
- Built-in 4-port USB 2.0 device hub for sharing high-speed USB devices
- Eliminates the need to buy expensive flat panel display monitors for all computers
- The max resolution is an astounding 2560×1600 @60 Hz (Analog)
- USB 2.0 Specification compliant
Specifications
General
| Device Type | KVM / audio / USB switch – 4 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 1920 x 1440 @ 70 Hz |
| Built-in Devices | USB hub |
| Status Indicators | Port status |
Expansion / Connectivity
| Interfaces | 4 x USB 2.0 Type B Display / video: 4 x DVI-Digital – 18+5 pin combined DVI (Single-Link) 4 x audio output mini-jack 4 x microphone input mini-jack 1 x keyboard (USB) Type A 1 x mouse (USB) Type A Display / video: 1 x DVI-Digital – 18+5 pin combined DVI (Single-Link) 2 x USB 2.0 Type A 1 x audio output mini-jack 1 x microphone input mini-jack |
Power
| Power Device | External power adapter |
Miscellaneous
| Color | Black |
Dimensions & Weight
| Width | 10 in |
| Depth | 4.5 in |
| Height | 1.8 in |
| Weight | 3.75 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty – 3 years |
| General | |
|---|---|
| Built-in Devices | USB hub |
| Device Type | KVM / audio / USB switch – 4 ports |
| Enclosure Type | Desktop |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 1920 x 1440 @ 70 Hz |
| Ports | 4 x KVM / audio / USB |
| Status Indicators | Port status |
| Subtype | KVM |
| Dimensions & Weight | |
|---|---|
| Depth | 4.5 in |
| Height | 1.8 in |
| Weight | 3.75 lbs |
| Width | 10 in |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 4 x USB 2.0 Type B ¦ Display / video: 4 x DVI-Digital – 18+5 pin combined DVI (Single-Link) ¦ 4 x audio output mini-jack ¦ 4 x microphone input mini-jack ¦ 1 x keyboard (USB) Type A ¦ 1 x mouse (USB) Type A ¦ Display / video: 1 x DVI-Digital – 18+5 pin combined DVI (Single-Link) ¦ 2 x USB 2.0 Type A ¦ 1 x audio output mini-jack ¦ 1 x microphone input mini-jack |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – 3 years |
| Miscellaneous | |
|---|---|
| Color | Black |
| Power | |
|---|---|
| Power Device | External power adapter |
