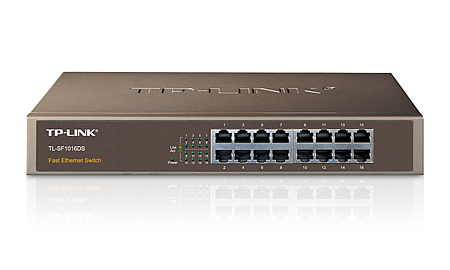

TP-LINK 16-Port 10/100Mbps Switch

Availability:

10 in stock


د.إ149.00

10 in stock

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.Ā

High Performance

The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

TP-LINK Green Technology

This new generation The TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Highlights:

  • 16 10/100M RJ45 ports.
  • Supports MAC address self-learning and auto MDI/MDIX.
  • Standard 13-inch steel case.

Features

  • Innovative energy-efficient technology saves power up to 25%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 3.2 Gbps Switching Capacity
  • Store and forward Switching scheme
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
  • Plug and Play design simplifies installation
  • Fanless design to make sure it works quietly without disturbing your family

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Interface 16 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100ƙ STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100ƙ STP (maximum 100m)
Backup Bandwidth 3.2Gbps
External Power Supply 100-240VAC, 50/60Hz
Fan Quantity Fanless
LED Indicator Power, Link/Act, 100Mbps
Dimensions ( W x D x H ) 11.6Ɨ7.1Ɨ1.7 in. (294Ɨ180Ɨ44 mm)
SOFTWARE FEATURES
Basic Function Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Port Forwarding 10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transfer Method Store-and-Forward
MAC Address Table 8k
OTHERS
Certification FCC, CE, RoHS
System Requirements MicrosoftĀ® WindowsĀ® 98SE, NT, 2000, XP, Vistaā„¢ or Windows 7, MACĀ® OS, NetWareĀ®, UNIXĀ® or Linux.
Environment Operating Temperature: 0ā„ƒ~40ā„ƒ (32ā„‰~104ā„‰);
Storage Temperature: -40ā„ƒ~70ā„ƒ (-40ā„‰~158ā„‰);
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
