AS445C-POE-INJECTOR
Showing all 2 results
-
Fiber Media Converters

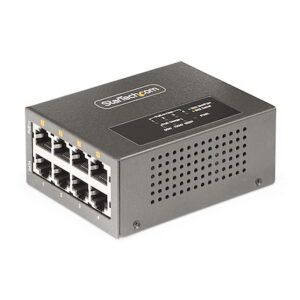

4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged – TAA
Fiber Media Converters4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged – TAA
Supply power and data to up to four remote Powered Devices (PDs) with this PoE/PoE+/PoE++ injector
- 4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection
- SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts
- MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/2.5GBASE-T compatible; provides data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment
- RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports
- STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system
SKU: n/a -
Networking
StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5G Ethernet (NBASE-T), PoE/PoE+/PoE++ up to 95Watts, 160W Budget
NetworkingStarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5G Ethernet (NBASE-T), PoE/PoE+/PoE++ up to 95Watts, 160W Budget
Quick tech specs
- 4-Port Multi-Gigabit PoE injector supports up to 5 Gbps (NBASE-T)
- Selectable power output for 90W/95W PoH/legacy 60W; PoE plus injector features multi-gigabit auto-negotiation between 5/2.5/1Gbps and 100/10Mbps
- Durable metal enclosure w/ DIN rail mounting bracket; Unmanaged injector equipped w/ top-facing color-coded LEDs for PoE mode/power budget
- Features PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt- ) up to 95W; 160W Power budget
- Extend data/power up to 100m w/ Ethernet Cat 5e/6/6a cables
SKU: AS445C-POE-INJECTOR
