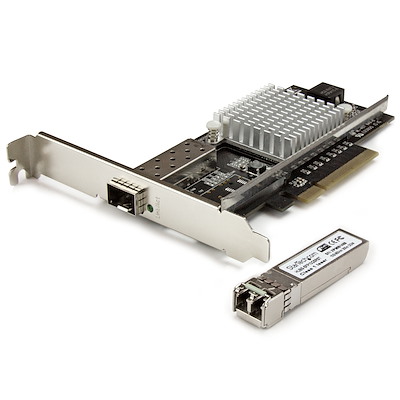

1-Port 10G SFP+ Fiber Optic Network Card – PCIe – Intel Chip – MM


Get high-performance connectivity over multi-mode fiber by upgrading your server or workstation with a 10GBase-SR port



  • Upgrade your server or workstation to 10G Ethernet for fast, high-bandwidth connectivity over multimode fiber
  • Single-port 10G network card with installed multimode SFP+ transceiver (up to 330 m range)
  • Intel 82599 chipset with Intel Virtualization Technology for Connectivity
  • Compliant with IEEE 802.3ae (10GBASE-SR)
  • Supports PXE network boot support, VLAN tagging, and link aggregation
  • Up to 15K jumbo frame support
  • Up to 20Gbps (full duplex) bandwidth

AED1,999.00

This fiber optic network card delivers reliable, high-performance network connectivity,Ā providing an easy and cost-effective way to upgrade your server or workstation to 10 Gigabit networkingĀ over multimode fiber. The 10G network card comes with an installed multimode SFP+ transceiver with up to 330 m range, to get you up and running quickly.

Take advantage of faster network speeds

Increasing numbers of network users and data-intensive applications, such as multimedia streaming and large file transfers, all drive the need to increase the bandwidth capability of your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10-Gigabit network, with data transfers of up to 10Gbps and up to 20Gbps (full duplex) bandwidth.

Includes an SFP+ transceiver, built for reliable performance

For added convenience, this single-port 10G network card comes with an installed multimode SFP+ transceiver. Built to ensure reliable performance, the 10 GbE SFP+ is manufactured by to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. The 10GBase-SR SFP+ delivers 10 Gigabit connectivity over multimode fiber cable with a range of up to 330 m (1082 ft).Ā

Enhance your network capabilities and reliability

The 10 Gigabit network card features the IntelĀ® 82599 chipset, delivering the power, performance, and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features, including IntelĀ® Virtualization Technology for Connectivity, PXE network boot support, and up to 15K jumbo frame support.

The 10G NIC connects easily through an available PCI Express expansion slot and is compliant with PCIe Rev. 2 x8 (or higher). The network card comes with a standard profile and also includes a low-profile bracket for versatile installation.

The PEX10000SRI is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications

  • Connect servers and workstations at 10Gbps over multimode fiber
  • Supports secure setups – a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
  • Ensure reliable network performance with the pre-installed multimode SFP+ transceiver, with a range of up to 330 m (1082 ft.)
  • Create a video/audio editing console with 10Gbps access to network storage
SKU: PEX10000SRI Category: Tag:

āœ… Product Overview – 10G SFP+ Fiber Optic PCIe Network Card with Transceiver (Intel 82599)


šŸ”§ Compatibility

Supported Platforms & Operating Systems
WindowsĀ® 7, 8, 8.1, 10, 11 (64-bit only)
Windows ServerĀ® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 (64-bit only)
Linux Kernel 2.6.24 and up – LTS Versions only

šŸ› ļø Specifications

Connector(s)

Connector Type Details
Host Connector 1 Ɨ PCI Express x8
External Port 1 Ɨ Fiber Optic LC Duplex (SFP+)

šŸŒ”ļø Environmental Tolerance

Metric Range
Operating Temp. 5°C to 50°C (41°F to 122°F)
Storage Temp. -20°C to 60°C (-4°F to 140°F)
Humidity 20% to 80% RH

🧱 Hardware

Property Value
Ports 1
Interface Fiber (10 Gigabit Ethernet)
Bus Type PCI Express
Card Type Standard Profile (Low-Profile Bracket Included)
Chipset ID Intel 82599

🌐 Supported Protocols & Standards

Protocol/Standard
IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (Flow Control)
IEEE 802.1Q (VLAN Tagging)

šŸ“¦ Packaging Information

Specification Value
Package Height 1.3 in [3.2 cm]
Package Length 6.7 in [17.1 cm]
Package Width 5.6 in [14.1 cm]
Shipping Weight 6.5 oz [184 g]
Package Quantity 1

āš™ļø Performance

Feature Detail
Max Data Transfer Rate 20 Gbps (Full-Duplex)
Compatible Networks 10 Gbps
Full Duplex Support Yes
Jumbo Frame Support Up to 9K
Promiscuous Mode Yes

šŸ”Œ Power

Power Specification Value
Input Voltage 12V DC
Output Voltage 12V DC

🧱 Physical Characteristics

Property Value
Color Black
Material Steel
Product Length 5.3 in [13.5 cm]
Product Width 0.7 in [1.8 cm]
Product Height 4.7 in [12.0 cm]
Weight 4.1 oz [116 g]

šŸ’» Software Compatibility

Supported Systems
WindowsĀ® 7, 8, 8.1, 10, 11 (64-bit only)
Windows ServerĀ® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 (64-bit only)
Linux 2.6.24 and up – LTS Versions only

šŸ“¦ What’s in the Box

Included Items
1 Ɨ 10G SFP+ Fiber Network Card
1 Ɨ 10GBase-SR SFP+ Transceiver Module
1 Ɨ Low-Profile Bracket
1 Ɨ Quick-Start Guide
