Ethernet Extenders

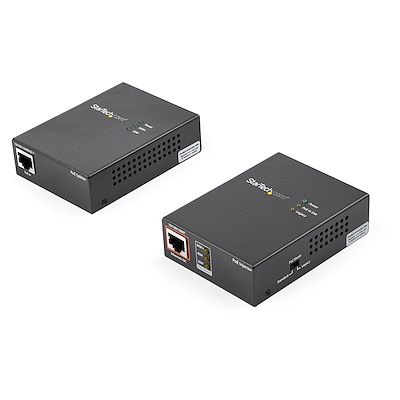

1 Port Gigabit PoE Injector & Splitter Kit – 60W High Power over Ethernet Injector 100m/12-24V DC Splitter 802.3bt Midspan Single Port Ultra PoE LAN/RJ45 Security/Monitoring – TAA
60W Ultra PoE Kit | 60W Over 100 m | 802.3af/at/bt Compatible | 10/100/1000Mbps
- HIGH POWER GIGABIT POE INJECTOR + SPLITTER: Power non-PoE devices using network infrastructure where power isn’t available; Splits PoE connection (max 60W) into RJ45 data & DC power (Type N Barrel)
- TECH SPECS: 1 Gbps Injector / Splitter Kit | Injector: 60W Out | Splitter: 12/19/24VDC Power Output | IEEE 802.3bt/af/at | 328 ft (100 m) | 10/100/1000 Mbps Auto Negotiation | Midspan| Metal Housing
- EASY SETUP & DEPLOYMENT: Kit includes Ultra PoE Splitter | PoE Injector | Universal Power Adapter | Power Cords (NA/JP, UK, EU, AU) | 2x DC Plug Cables | RJ45/ LAN Cable | User Manual
- EASY INSTALLATION: Minimal configuration needed; Output voltage is selected using a simple switch and features status LED indicators, providing power to equipment like POS kiosks & digital signage
AED1,199.00
60-Watt Ultra Power Over Ethernet
Compliant with IEEE 802.3bt and supporting up to 60 watts of PoE, you can do more than just power your IP phone or wireless router. 60W PoE can support your higher-powered devices, such as thin clients, POS systems, laptops, or digital signage, from up to 100 meters away.
Easy to Deploy
The PoE injector and PoE splitter are both simple to set up. Supporting plug-and-play installation, they also feature a compact, all-in-one design and a durable, wall-mountable metal housing. The PoE splitter’s 12V/19V/24V DIP switch on the front panel offers either 24V DC power to industrial equipment or 12V/19V DC output to common network devices, increasing the number of product applications.
Applications
- PoE pan-tilt-zoom cameras
- Thin clients
- All-in-one touchscreen PC
- Remote digital signage display
Specifications Table: PoE Injector & Splitter Kit
| Category | Details |
|---|---|
| PoE / WDM | |
| PoE | Yes |
| WDM | Yes |
| Connector(s) | |
| Connector A | – 1 × RJ-45 (PoE+) – 4 × RJ-45 (PoE+) |
| Connector B | 1 × RJ-45 |
| Environmental | |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Humidity | 5% to 90% RH (Non-condensing) |
| Hardware | |
| Industry Standards | – IEEE 802.3 (10BASE-T) – IEEE 802.3u (100BASE-T) – IEEE 802.3ab (1000BASE-T) – IEEE 802.3af (PoE) – IEEE 802.3at (PoE+) – IEEE 802.3bt (PoE++, 4PPoE) |
| Indicators | |
| LED Indicators | – 1 × System Power – 1 × PoE In Use – 1 × Legacy Mode – 3 × PoE Usage (20W / 40W / 60W+) |
| Packaging Information | |
| Shipping Weight | 4.0 lb [1.8 kg] |
| Package Quantity | 1 |
| Package Length | 15.6 in [39.6 cm] |
| Package Width | 9.3 in [23.6 cm] |
| Package Height | 3.5 in [8.8 cm] |
| Performance | |
| Maximum Cable Length | 328 ft [100 m] |
| Max Distance | 100 m [328 ft] |
| Flow Control | Not supported (pin-to-pin pass-through) |
| Remote Management | Not supported |
| Auto MDIX | No |
| Full Duplex Support | No |
| Jumbo Frame Support | No |
| Switching Architecture | Not supported |
| General Voltage Support | 12V / 19V / 24V |
| PoE Usage Indicators | 20W / 40W / 60W+ |
| MTBF | 50,000 hours @ 25°C |
| Physical Characteristics | |
| Color | Black & Brown |
| Material | Steel |
| Product Length | 15.4 in [39.0 cm] |
| Product Width | 9.2 in [23.3 cm] |
| Product Height | 3.3 in [8.5 cm] |
| Weight of Product | 10.6 oz [300.0 g] |
| Power | |
| Input Voltage | 100 – 240V AC |
| Input Current | 2 A |
| Output Voltages | – 12VDC @ 5A – 19VDC @ 3.15A – 24VDC @ 2.5A |
| Power Consumption | 71.82 W |
| Center Tip Polarity | Positive |
| Patents and Licenses | |
| Licensed U.S. Patents | – 5,406,260 (expired) – 6,650,622 – 7,457,250 – 8,155,012 – 8,902,760 – 8,942,107 – 9,019,838 – 9,049,019 |
| Patent Applications | – 14/695,456 – 14/726,940 |
| What’s in the Box | |
| Included Items | – 1 × PoE Splitter – 1 × PoE Injector – 1 × Universal Power Adapter – 4 × Power Cords (NA/JP, UK, EU, AU) – 2 × DC Plug Cables – 1 × RJ45 Network Cable – 1 × User Manual |
