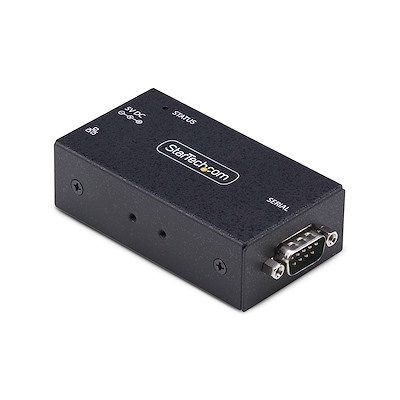

1-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter, TAA

Add to Wishlist

Streamline RS-232 connectivity for serial device management over IP



  • SINGLE PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
  • UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
  • VERSATILE CONFIGURATIONS: RJ45 LAN to RS232 converter supports TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming/location, admin password protection, and upgradeable firmware
  • ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices
  • RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 1.8x1x3.2in (46.1x25x81.9 mm)
  • SERIAL TO IP CONVERTER OPTIONS: Our family of device servers includes the following options: I13-SERIAL-ETHERNET (1 Port), I13P-SERIAL-ETHERNET (1 Port w/ PoE), I23-SERIAL-ETHERNET (2 Port), and I43-SERIAL-ETHERNET (4 Port)

AED999.00

Add to Wishlist
This 1-port serial-to-IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.



Configuration and Management

The DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.

The product family includes the following options:

Flexible Installation and Rugged Chassis

The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. The compact design of 1.8x1x3.2in (46.1x25x81.9 mm) is ideal for environments where space is at a premium.

Ethernet and Power Options

The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports Level-4 ESD protection (15kV air/8kV contact), and can supply 5VDC over pin 9 if required.

SKU: I13-SERIAL-ETHERNET Category: Tag:

Specifications: 1-Port Serial Over IP Device Server

Category Details
Compatibility – Windows 8, 8.1, 10, 11
– Virtual COM software supports Windows only
– Compatible with macOS® and Linux® (via WebUI only, not COM software)
Connector(s)
Connector Type(s) – 1 × DB-9 (9-pin, D-Sub)
– 1 × RJ-45
Connector A 1 × RJ-45
Connector B 1 × DB-9 Serial
Environmental
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -20°C to 75°C (-4°F to 167°F)
Humidity 5% ~ 95% RH (non-condensing)
Hardware
Ports 1
Interface Serial
Industry Standards – IEEE 802.3u (100BASE-TX)
– IEEE 802.3i (10BASE-TX)
– EIA/TIA-232
Indicators
LED Indicators – RJ-45 (Right LED):
  – Steady Green: Ethernet connected
  – Blinking Green: Activity
  – Off: No Ethernet

– DB-9:
  – Top LED: Transmit (TX)
  – Bottom LED: Receive (RX)

– Power LED:
  – Steady Green: Power on
  – Blinking Green: Restoring factory settings
Packaging Information
Package Height 2.4 in [6.1 cm]
Package Length 6.7 in [17.0 cm]
Package Width 9.7 in [24.6 cm]
Shipping Weight 1.1 lb [0.5 kg]
Performance
Serial Protocol RS-232
Max Baud Rate 921.6 Kbps
Data Bits 7, 8
Stop Bits 1, 2
Parity None, Even, Odd, Mark, Space
Flow Control RTS/CTS, X-ON/X-OFF, None
ESD Protection ±15kV (Air), ±8kV (Contact)
Compatible Networks 10/100 Mbps
Auto MDIX Yes
Full Duplex Support Yes
Supported Protocols IP, Telnet RFC2217, TCP Server, TCP Client, UDP
Remote Management Yes
Physical Characteristics
Color Black
Material Steel
Product Length 1.8 in [4.6 cm]
Product Width 3.2 in [8.2 cm]
Product Height 1.0 in [2.5 cm]
Weight 5.5 oz [155.0 g]
Power
Power Source AC Adapter Included
Input Voltage 100 – 240V AC
Input Current 0.48 A
Output Voltage 5V DC
Output Current 3 A
Center Tip Polarity Positive
Plug Type M
Power Consumption 15W
Software
OS Compatibility – Windows 8, 8.1, 10, 11
– Virtual COM software supports Windows only
Notes For macOS/Linux, configure via WebUI only
What’s in the Box – 1 × Serial Over IP Device Server
– 1 × DIN Rail Kit
– 1 × Mounting Bracket
– 4 × Mounting Screws
– 1 × Universal Power Adapter
– 1 × Quick-Start Guide
