04 3550600 052 7036860

10/100 Ethernet Extender Kit, Up to 0.5Mi (800M), Long-Range LAN over Single Pair Wire/Phone Line/RJ45 UTP, Ethernet Booster For IP Video/Remote Sensors/WiFi APs – TAA

Add to Wishlist

Extend a 10/100Mbps network up to 0.5mi (800m) using RJ45 or RJ11 cabling



  • ETHERNET LAN EXTENDER:  Unmanaged single-port dual-speed (10/100Mbps) RJ45 network extender kit; Reach distances of up to 0.5mi (800m) to overcome the typical limit of 328ft (100m) for Cat5/Cat5e/Cat6 copper Unshielded Twisted Pair (UTP) Ethernet cable
  • EXTENDED RANGE: Use one or two pairs of cable for variable bandwidth and distance; Reach up to 984ft (300m) at 100Mbps using a single-pair Ethernet cabling & up to 2,624ft (800m) at 10Mbps using two-pair Ethernet cabling
  • FEATURES: Network extension kit acts as a transparent network device seamlessly passing Ethernet protocols; IEEE 802.1q VLAN tag pass-through, WoL, 16K jumbo, PXE, and more; Supports RJ11/phone line cabling; Includes power adapters for remote/local units
  • READY TO USE: Long-range Ethernet booster ships ready for deployment; DIP switches for configuration; LED indicators for power, remote/master mode, network status, LAN speed, and LFPT, allowing IT administrators to monitor and assess network connectivity
  • APPLICATIONS: Use the Ethernet range extender for remote Internet or network access, IP video surveillance, remote equipment diagnosis, management and control, WiFi APs, automation, VoIP, remote sensors, and more

AED1,899.00

Add to Wishlist
Extend a network or control remote equipment using this Ethernet Extender. Use UTP, Cat5, Cat5e, or Cat6 RJ45 terminated cable for distances of up to 0.5mi (800m). Dual-speed (10/100Mbps) Ethernet signal booster enables efficient and reliable network connectivity.

Extend Network Connectivity

The unmanaged LAN extender utilizes the pairs of wires within a UTP cable to function as a bridge, extending a local network beyond the standard 328ft (100m) limit of a UTP cable. Use one or two pairs of twisted wire to achieve different speeds and distances to better suit the setup. Achieve up to 984ft (300m) at 100Mbps with a single pair of wires and up to 0.5mi (800m) at 10Mbps with two pairs of wires.

Thoughtful Design

The booster kit ships ready to use in a standard setup (remote and local units). DIP switches allow the change of the settings and behavior of the units for a custom deployment. Status LEDs provide a visual indication of the network and various settings that allow quick assessment of the setup.

Versatile

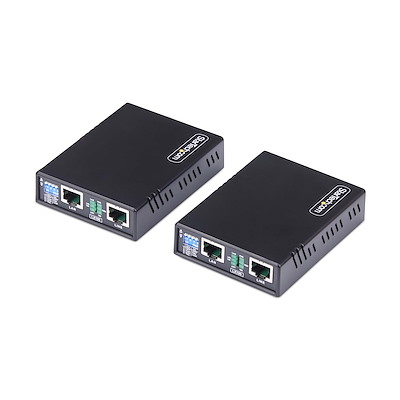

The Long-Range LAN Extender can be wall-mounted, using the included hardware. The kit includes power adapters for each unit. Use the LAN extender adapter for Internet or network access to remote office or branch locations, create remote WiFi APs (Access Points), remote IP-based video surveillance, equipment management and control, VoIP, automation, and more. For maximum compatibility, RJ11 copper cable is supported to connect the remote and local units.

Being a transparent network device allows the network extender to support the following Ethernet protocols, such as WoL (Wake-on-LAN), 16K Jumbo frames, 802.1Q VLAN tagging, and PXE boot.

SKU: C2-ETHERNET-EXTENDER Category: Tag:

Specifications Table: Ethernet Extender Kit

Category Details
Compatibility
OS Compatibility OS Independent (No drivers or software required)
Local Unit Connectors 2 × RJ-45
Remote Unit Connectors 2 × RJ-45
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 5% ~ 90% RH (Non-condensing)
Hardware
Ports 1
Cabling Cat 5 UTP or better
Rack-Mountable No
Industry Standards – IEEE 802.3u (100BASE-TX)
– IEEE 802.3i (10BASE-TX)
– IEEE 802.1Q (VLAN)
– IEEE 802.1X (WoL)
Indicators
LED Indicators – 1 × Power
– 1 × LAN: 10Mbps
– 1 × LAN: 100Mbps
– 1 × Local/Remote Mode
– 1 × LAN Link
– 1 × LFPT (Link Fault Passthrough)
Packaging Information
Package Quantity 1
Package Height 5.3 in [13.5 cm]
Package Length 7.2 in [18.3 cm]
Package Width 6.1 in [15.4 cm]
Shipping Weight 1.3 lb [0.6 kg]
Performance
Maximum Data Transfer Rate 100 Mbps
Max Transfer Distance 800 m [2624 ft]
Bandwidth 100 Mbps
Auto MDIX No
Jumbo Frame Support 16K max.
Physical Characteristics
Color Black
Material Plastic and Steel
Product Height 2.9 in [7.3 cm]
Product Length 0.9 in [2.3 cm]
Product Width 3.8 in [9.6 cm]
Product Weight 2.6 oz [73.5 g]
Power
Power Source 2 × AC Adapters Included
Input Voltage 100 – 240V AC
Input Current 0.5 A
Output Voltage 12V DC
Output Current 1 A
Center Tip Polarity Positive
Plug Type M
Power Consumption 3.8W
Software
OS Compatibility No drivers or software required
What’s in the Box
Included Items – 2 × Ethernet Extender
– 2 × Power Adapter
– 2 × Mounting Bracket
– 4 × Mounting Screws
– 1 × Quick-Start Guide
