10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km – TAA

Add to Wishlist

Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single-mode SC fiber cable



  • WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for full-duplex bi-directional communication
  • Kit includes a local and remote converter module for a complete solution
  • Maximum Fiber Cable Length of 20 Km
  • Advanced features include Link-loss forwarding, remote status monitoring, and two frame lengths
  • Supports full or half-duplex operation
  • Easy to use and install



AED2,499.00

Add to Wishlist

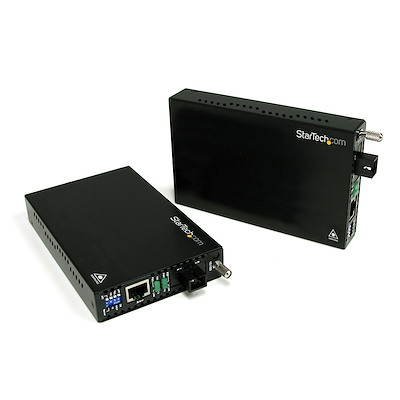

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single-mode fiber, at distances up to 20 km (12.4 mi).

The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.

The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) – a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single-mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis and a simple plug-and-play installation with minimal configuration required.

Applications

  • Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
  • Suitable for environments such as government agencies, where security threats (network tapping, etc.) need to be prevented
  • Connect traffic control/monitoring systems at extreme distances to the main office
  • Extend network connectivity to remote areas of stadiums, auditoriums, or other venues
  • Converts 10/100Base-T Ethernet to 100Base-FX fiber optic signals (and back – includes both endpoints) over single-mode fiber cable
SKU: ET90110WDM2 Category: Tag:

Specifications Table

Category Details
Connector(s)
Local Unit Connectors – 1 × Fiber Optic SC Duplex
– 1 × RJ-45
Remote Unit Connectors – 1 × Fiber Optic SC Duplex
– 1 × RJ-45
Environmental
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 10% to 90% RH
Hardware
PoE No
WDM Yes
Industry Standards – IEEE 802.3 10BASE-T
– IEEE 802.3u 100BASE-FX
– IEEE 802.3u 100BASE-TX
Packaging Information
Package Height 3.9 in [9.9 cm]
Package Length 10.9 in [27.8 cm]
Package Width 8.3 in [21.2 cm]
Package Quantity 1
Shipping Weight 3.6 lb [1.6 kg]
Performance
Max Data Transfer Rate 200 Mbps (Full Duplex Mode)
Max Transfer Distance 20 km (12.4 mi)
Type Single Mode
Wavelength 1310nm, 1550nm
Fiber Operating Mode Half/Full-Duplex
Auto MDIX Yes
Physical Characteristics
Color Black
Material Steel
Product Dimensions (L × W × H) 6.3 in × 3.5 in × 1.0 in
(16 cm × 8.8 cm × 2.5 cm)
Weight of Product 2.6 lb [1.2 kg]
Power
Power Source 2 × AC Adapters Included
Input Voltage 100 – 240 AC
Input Current 0.36 A
Output Voltage 12V DC
Output Current 1.6 A
Center Tip Polarity Positive
Plug Type M
Power Consumption 19.2 Watts
What’s in the Box
Included Items – 1 × Local Media Converter Unit
– 1 × Remote Media Converter Unit
– 2 × Universal Power Adapters (NA/EU/UK/AU)
– 1 × Grounding Screw
– 1 × Manual
