Fiber Media Converters

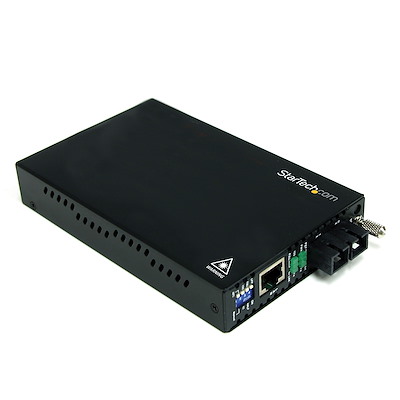

10/100 Mbps Single Mode Fiber Media Converter SC 30 km – TAA
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
- A cost-effective way to extend/bridge networks using fiber cabling
- Advanced features include Link-loss forwarding, remote status monitoring, and two frame lengths
- Maximum Fiber Cable length of 30 km
- Supports full or half-duplex operation
- Easy to use and install
AED1,199.00
Applications
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Perfect for secured environments required by government agencies, where EMI is not acceptable
- Connect traffic control/monitoring systems at extreme distances to the main office.
- Extend network connectivity to remote areas of stadiums, auditoriums, or other venues.
- Converts 100Base-FX fiber optic signals to 10/100Base-T Ethernet over single-mode fiber cable
Specifications Table
| Category | Details |
|---|---|
| Connector(s) | |
| Local Unit Connectors | – 1 × Fiber Optic SC Duplex – 1 × RJ-45 |
| Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 10% to 90% RH |
| Hardware | |
| PoE | No |
| WDM | No |
| Packaging Information | |
| Package Height | 3.5 in [9.0 cm] |
| Package Length | 8.1 in [20.7 cm] |
| Package Width | 5.5 in [13.9 cm] |
| Shipping Weight | 1.7 lb [0.8 kg] |
| Package Quantity | 1 |
| Performance | |
| Max Data Transfer Rate | 200 Mbps (Full Duplex Mode) |
| Max Transfer Distance | 30 km (18.6 mi) |
| Type | Single Mode |
| Wavelength | 1310nm |
| Fiber Operating Mode | Half/Full-Duplex |
| Auto MDIX | Yes |
| Physical Characteristics | |
| Weight of Product | 13.8 oz [392 g] |
| Color | Black |
| Material | Steel |
| Product Dimensions (L × W × H) | 6.1 in × 3.4 in × 0.9 in (15.5 cm × 8.7 cm × 2.4 cm) |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 – 240 AC |
| Input Current | 0.36 A |
| Output Voltage | 12V DC |
| Output Current | 1.6 A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 19.2 Watts |
| What’s in the Box | |
| Included Items | – 1 × Fiber Media Converter – 1 × Universal Power Adapter (Region-Specific) – 1 × Grounding Screw – 1 × Instruction Manual |
