Network Adapter Cards

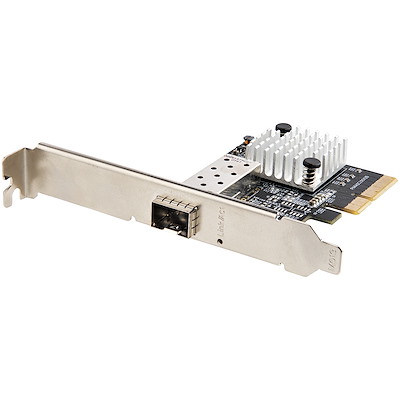

10G PCIe SFP+ Card – Single SFP+ Port Network Adapter – Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables – 10 Gigabit Fiber PCIe NIC – PCI Express SFP+ Network Card
PCI Express SFP+ Card | 10 Gbps | Open SFP+ Slot | Fiber, Copper & DAC | PCIe 3.0 x4
- MAXIMUM THROUGHPUT: Increase your bandwidth up to 10 Gbps with this SFP+ card for enhanced data transfer rate using fiber optic cable; Reduce wait times for large file transfers, content sharing, network storage, or any other high bandwidth application
- WIDE COMPATIBILITY: This PCIe network card has an open SFP+ slot that can accept any MSA-compliant module or direct attach cable (DAC). It is compatible with multimode, single-mode, and copper SFP+ modules. This card is natively supported in Windows 11
- SECURE INTERFACE: For security and privacy reasons, a fiber network card is the ideal point-to-point network adapter; Eliminate EMI with a fiber connection and cover longer distances with fiber to host
- SPECIFICATIONS: 10Gbps open slot SFP+ port | MMF, SMF, and Copper Support | 9K Jumbo Frames | IEEE 802.3ad Link Aggregation | IEEE 802.1Q VLAN tagging | PCIe 3.0 x4 | MSA Compliant | Full Duplex | Low Profile Bracket included | Windows, macOS and Linux
AED1,099.00

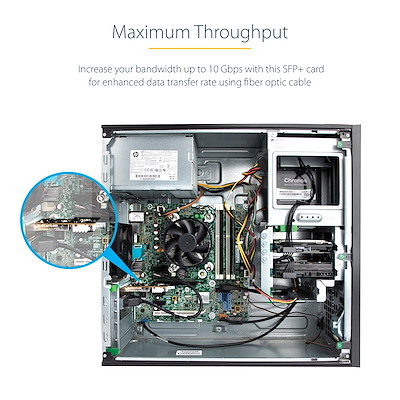

Increase your network speed
This PCIe network card lets you take advantage of improved bandwidth in data-intensive applications such as multimedia streaming and large file transfers. This fiber NIC offers data transfer rates of up to 10Gbps, which improve speeds and reduce load times.
Scalable network connection
Featuring an open SFP+ slot, you have the flexibility to make changes as needed just by swapping the module in use, whether it is fiber, copper, or direct attach cables (DAC). The card complies with MSA, allowing use with modules from StarTech.com or 3rd parties that support MSA.
Enhance your existing hardware
The 10Gb network card easily connects via an available x4 PCI Express 3.0 expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various types of computer chassis. It supports a wide variety of OSes, including Windows and Linux.
ā Product Overview ā 10G SFP+ PCIe x4 Fiber Network Card (AQC100S)
š§ Compatibility
| Operating Systems & Platforms |
|---|
| WindowsĀ® 7, 8, 8.1, 10, 11 |
| Windows ServerĀ® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 |
| Linux Kernel 3.10 and up ā LTS Versions only |
| VMWare ESXi 7.0 and up |
š ļø Specifications
š Connector(s)
| Connector Type | Description |
|---|---|
| Host Interface | 1 Ć PCI Express x4 |
| External Ports | 1 Ć SFP+ Slot |
š”ļø Environmental Parameters
| Parameter | Range |
|---|---|
| Operating Temperature | 5Ā°C to 50Ā°C (41Ā°F to 122Ā°F) |
| Storage Temperature | -20Ā°C to 60Ā°C (-4Ā°F to 140Ā°F) |
| Humidity | 20% ~ 80% RH (Non-Condensing) |
š§± Hardware
| Property | Value |
|---|---|
| Compatible Brand | MSA Compliant |
| Ports | 1 |
| Interface | Fiber (10 Gigabit Ethernet) |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP Bracket Included) |
| Chipset ID | Aquantia – AQC100S |
š Industry Standards
| Compliance Certifications |
|---|
| IEEE 802.3ae (10GBASE-LR/SR) |
| IEEE 802.3aq (10GBASE-LRM) |
| PCI Express Rev 3.0 |
š¦ Packaging Information
| Dimension / Weight | Value |
|---|---|
| Package Height | 1.4 in [3.5 cm] |
| Package Length | 5.7 in [14.5 cm] |
| Package Width | 8.3 in [21.0 cm] |
| Shipping Weight | 4.9 oz [140.0 g] |
| Package Quantity | 1 |
āļø Performance
| Feature | Value |
|---|---|
| Max Data Transfer Rate | 20 Gbps (Full Duplex) |
| Compatible Network Speeds | 10 Gbps |
| Jumbo Frame Support | 9K max. |
| Supported Modes | Single Mode, Multi Mode |
š Supported Protocols
| Protocol |
|---|
| IEEE 802.3ad ā Link Aggregation |
| IEEE 802.3x ā Flow Control |
| IEEE 802.1Q ā VLAN Tagging |
š§± Physical Characteristics
| Property | Value |
|---|---|
| Material | Steel |
| Product Height | 4.8 in [12.1 cm] |
| Product Length | 3.7 in [9.4 cm] |
| Product Width | 0.7 in [1.8 cm] |
| Product Weight | 1.9 oz [55.0 g] |
š» Software Compatibility
| OS Support |
|---|
| Windows 7, 8, 8.1, 10, 11 |
| Windows Server 2008 R2 to 2022 |
| Linux Kernel 3.10+ ā LTS Versions Only |
| VMware ESXi 7.0 and up |
ā ļø Special Notes / Requirements
-
ā Not compatible with 10/100/1000 Mbps SFP transceivers
-
ā” Requires 10 Gigabit SFP+ transceiver or DAC cable
-
š Fiber transfer speed/distance depends on SFP module used (sold separately)
š¦ What’s in the Box
| Included Items |
|---|
| 1 Ć 10G SFP+ PCIe Network Card |
| 1 Ć Low Profile Bracket |
| 1 Ć Quick-Start Guide |
Based on 0 reviews
Be the first to review “10G PCIe SFP+ Card – Single SFP+ Port Network Adapter – Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables – 10 Gigabit Fiber PCIe NIC – PCI Express SFP+ Network Card”
