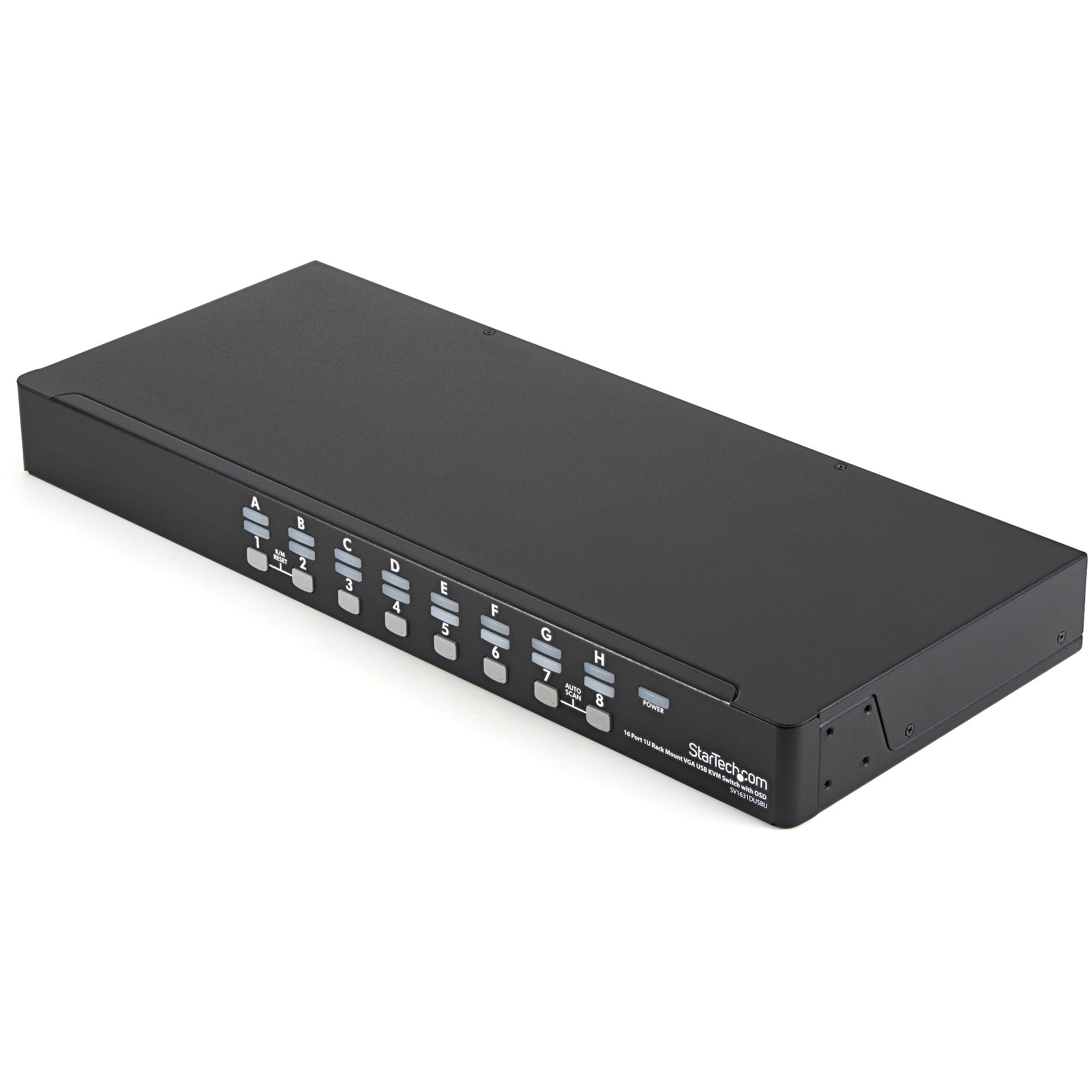

16 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables – TAA

The package includes 16x 6ft USB KVM cables
USB Keyboard and Mouse combo supported on 1 USB connection
OSD security option allows selected KVM ports to be password-protected from unauthorized use
Auto-scan function automatically switches between connected PCs sequentially
Cascade configuration expands system capability
Hotkey functions allow easy computer access
Identifies and selects computers by the names assigned
Plug-and-play system configuration

AED4,099.00

The SV1631DUSBUK 16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 16 servers or PCs right out of the box, making setup convenient and simple.

The USB KVM delivers a dependable computer management tool that allows you to control up to 16 USB-connected computers from a single keyboard, mouse, and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.

A suitable addition to server room operations, the 16-port switch can be rack-mounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 136 computers from this single switch.

This product is TAA compliant and backed by a 3-year warranty with free lifetime technical support.

Applications

Effectively manage your server farms from a single console
Useful in Software QA labs where testing is being done across multiple platforms
Great for PC test/burn-in computer control, avoiding the cost of buying additional peripherals

Central control for multiple systems in a Datacenter
Systems management in Co-location/ISP facilities
Manufacturing line computer control and management

Category: KVM Switches Tag: SV1631DUSBUK

✅ Compatibility

Feature	Description
OS Independent	Yes
Software/Driver Requirement	No software or drivers required

🔌 Connector(s)

Type	Details
Console Interfaces	2 × USB 2.0 Type-A (480Mbps) 1 × VGA (15-pin, HD D-Sub)
Host Connectors	16 × VGA (15-pin, HD D-Sub)

🌡️ Environmental

Feature	Value
Operating Temp.	5°C to 40°C (41°F to 104°F)
Storage Temp.	-20°C to 60°C (-4°F to 140°F)
Humidity	0% to 80% RH

⚙️ Hardware

Feature	Details
Audio	No
KVM Ports	16
PC Interface	USB
PC Video Type	VGA
Monitors Supported	1
Rack-Mountable	Yes
Cables Included	Yes
Daisy-Chaining	Yes

💡 Indicators

Type	Indicator Details
PC Online	16 × Green LEDs
Power	1 × Green LED
PC Selected	16 × Red LEDs

📦 Packaging Information

Feature	Value
Package Quantity	1
Package Height	5.1 in [12.9 cm]
Package Length	10.6 in [26.9 cm]
Package Width	27.6 in [70.1 cm]
Shipping Weight	12.8 lb [5.8 kg]

🚀 Performance

Feature	Details
On-Screen Display	Yes
IP Control	No
Hot-Key Selection	Yes
Max Analog Resolutions	1920 × 1440 @ 60Hz 1920 × 1200 @ 60Hz (Widescreen)
Wide Screen Supported	Yes
Max Number of Users	1
Max Cascaded Computers	136
Port Selection Support	Push Button, Hotkeys, and OSD
MTBF	158,000 hours

🧱 Physical Characteristics

Feature	Value
Product Weight	5.3 lb [2.4 kg]
Product Length	17.2 in [43.8 cm]
Product Width	7.1 in [18.0 cm]
Product Height	1.8 in [4.5 cm]
Product Depth	7.5 in [190 mm]
Color	Black
Material	Steel

🔋 Power

Feature	Value
Power Source	AC Adapter Included
Input Voltage	100 – 240V AC
Input Current	0.6A
Output Voltage	12V DC
Output Current	1.5A
Center Tip Polarity	Positive
Plug Type	M
Power Consumption	18W

💻 Software

Feature	Details
OS Compatibility	OS independent; No software or drivers

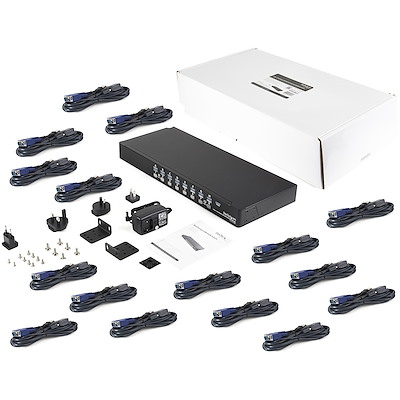

📦 What’s in the Box

Included Items
1 × 16-Port USB KVM Switch
2 × Mounting Brackets
16 × 6ft 2-in-1 USB VGA KVM Cables
1 × Screw Kit
4 × Foot Pads
1 × Universal Power Adapter (NA/EU/UK/AU)
1 × Instruction Manual
