Network Adapter Cards

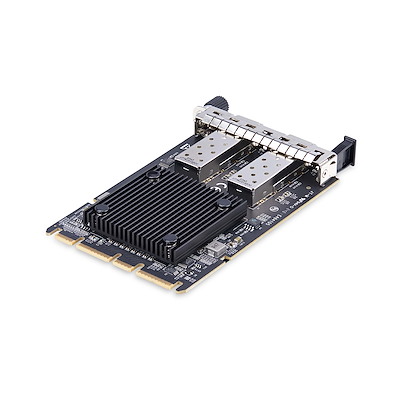

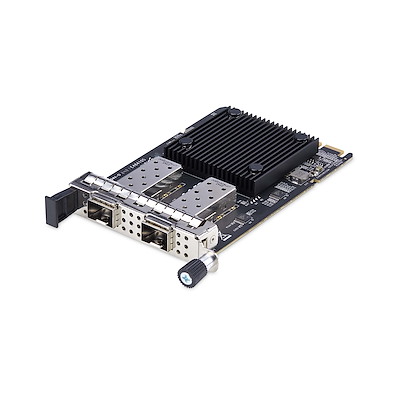

2-Port 10Gbps SFP+ OCP 3.0 Server Network Card with Intel X710, SFF 4C+ Compatible, Dual-Port OCP NIC, Works with Windows & Linux
Enhance a server or workstation’s capabilities with dual 10-Gigabit fiber or copper connectivity using the SFP transceivers of your choice
- 10G OCP NETWORK CARD: 10Gbps Network Interface Card w/Intel X710-BM2 Controller adds 2x open SFP+ slots to a server, enhancing connectivity options/network performance; Ideal for high-speed, low-latency connections (e.g., virtualization, cloud computing)
- REDUCED DOWNTIME: Network Adapter Card uses the OCP (Open Compute Project) 3.0 port (168-Pin 4C+), developed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades
- UNLOCKED SFP+ SLOTS: Works with any single-mode/multimode MSA-compliant or branded SFP or SFP+ modules, active optical cables (AOC), or direct attach copper cables (DAC); Optical fiber allows for longer cable runs than copper cabling while eliminating EMI
- COMPATIBILITY: Works with Windows Server 2012 & up, Windows 10 & up, and Linux; PCI Express NIC is compatible with PCIe versions 3.0, 2.1, and 2.0; Supports 1000Base-T/SX/LX/EX and 10GBase-T/SR/LR/CR for various network configurations and distances
- IT MANAGEMENT: Network Virtualization offloads reduce CPU overhead, enhancing virtualized network efficiency; PXE boot enables centralized OS deployment/updates; 9K jumbo frames for reduced packet overhead; VLAN support for efficient network management
AED2,399.00
OCP (Open Compute Project) Interface
The network adapter card uses the Open Compute Project (OCP) 3.0 (168-pin 4C+) connector, which was designed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades. The PCI Express Network Card is compatible with PCIe versions 3.0, 2.1, and 2.0.
10GbE and 1GbE SFP Support
This card supports 1000Base-T/SX/LX/EX and 10GBase-T/SR/LR/CR for various network configurations and distances. This is ideal for high-speed, low-latency connections such as those used in virtualization, data centers, and cloud computing. It works with any single-mode or multimode MSA-compliant or branded SFP or SFP+ module, active optical cable (AOC), or direct attach copper cable (DAC). Optical fiber allows longer cable runs than copper cabling while eliminating EMI.
Advanced Features
Network virtualization offloads reduce CPU overhead, increasing the efficiency of the virtualized network. PXE boot enables centralized OS deployment and updates. The card also supports 9K jumbo frames for reduced packet overhead and VLAN support for efficient network management. The card is compatible with Windows Server, Windows, and Linux.
Applications
- Create a high-speed and flexible network infrastructure in data centers or enterprise networks
- Dual ports allow for redundancy and load balancing, enhancing network reliability and performance
š§ Compatibility
| Supported Operating Systems |
|---|
| Windows Server 2012 / 2012 R2 / 2016 / 2019 / 2022 |
| Windows 10, Windows 11 |
| Linux (2.6.x and up ā LTS Versions only) |
š ļø Specifications
Connector Details
| Type | Quantity/Details |
|---|---|
| External Ports | 2 Ć SFP+ Slots |
| Host Connector | 1 Ć 4C+ (168-Pin) |
Environmental Tolerance
| Specification | Range |
|---|---|
| Operating Temperature | 0Ā°C to 60Ā°C (32Ā°F ā 140Ā°F) |
| Storage Temperature | -10Ā°C to 70Ā°C (14Ā°F ā 158Ā°F) |
| Humidity | 5% to 90% RH |
Hardware Interface
| Feature | Detail |
|---|---|
| Ports | 2 |
| Interface | 10 Gigabit Fiber Ethernet |
| Bus Type | OCP 3.0 |
| Card Type | OCP (Open Compute Project) |
| Port Style | Integrated |
Chipset
| Chipset Model |
|---|
| Intel X710-BM2 |
š Standards & Protocols
| Supported Standards |
|---|
| IEEE 802.3 / 802.3ae / 802.3ad (Link Aggregation) |
| IEEE 802.1Q (VLAN), 802.1p (QoS), 802.1ad (Q-in-Q) |
| IEEE 1588 (Precision Time Protocol) |
| SFF-TA-1002 (4C+ Connector Compliant) |
š” Indicators
| LED Type | Description |
|---|---|
| Activity | Flash Green ā Indicates activity |
| Link | Solid Green ā 10Gbps Solid Orange ā 1Gbps Off ā No connection |
š¦ Packaging Info
| Dimension | Value |
|---|---|
| Package Height | 1.4 in [3.6 cm] |
| Package Width | 5.7 in [14.6 cm] |
| Package Length | 8.5 in [21.7 cm] |
| Shipping Weight | 5.9 oz [166 g] |
āļø Performance & Features
| Feature | Details |
|---|---|
| Wake-on-LAN | Yes |
| Max Data Transfer Rate | 10Gbps |
| Duplex Mode | Full Duplex Supported |
| Jumbo Frame | Up to 9K |
| Promiscuous Mode | Yes |
| PXE Boot Support | Yes |
| Network Compatibility | 1Gbps / 10Gbps |
| Fiber Type | Single Mode / Multi Mode Copper |
š§ Advanced Capabilities
| Feature |
|---|
| VMDq & SR-IOV Support |
| DDP (Dynamic Device Personalization) |
| DPDK (Data Plane Development Kit) |
| NVO (Network Virtualization Offloads): VxLAN, NVGRE, GENEVE, VxLAN-GPE with NSH |
š§± Physical Characteristics
| Property | Value |
|---|---|
| Color | Black |
| Product Height | 0.6 in [1.5 cm] |
| Product Width | 3.3 in [8.5 cm] |
| Product Length | 5.2 in [13.2 cm] |
| Weight | 3.7 oz [104 g] |
š Power
| Source | Detail |
|---|---|
| Power Supply | Bus Powered |
š¦ Package Contents
| Included Items |
|---|
| 1 Ć Network Card |
| 1 Ć Quick-Start Guide |
