Network Adapter Cards

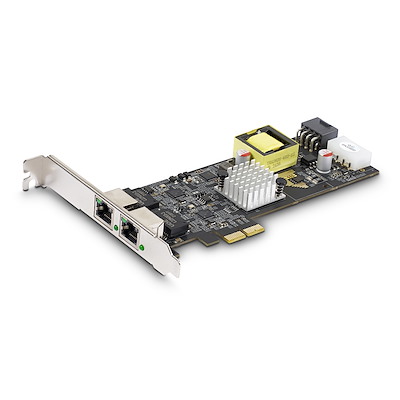

2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered
Add a Power-over-Ethernet (PoE) 2.5Gbps Port to a PCI Express-enabled Computer
- 2-PORT 2.5G POE ETHERNET CARD: High-performance PCIe 2.5Gbps network card with dual Intel I225-V-chips; Leverage existing Cat5e/Cat6 cabling (or better) without the use of a Power over Ethernet injector; NBASE-T compatible (802.3bz); PCI Express 2.0 x2
- POE+ COMPLIANT: Ethernet NIC provides up to 30W PSE and 25.5W PD per port at 48V DC to connected devices; Supports IEEE 802.3af (PoE) and 802.3at (PoE+) to power remote devices such as access points, RFID readers, and IP cameras
- IT MANAGEMENT: Intel vPro for remote management and troubleshooting; PXE boot enabled for centralized OS deployment and updates; 9K jumbo frame for reduced packet overhead; Remote system boot via WoL; VLAN support for efficient network management
- BUILD QUALITY: LAN card features a built-in heatsink to keep controller chips running cool and for optimal performance, LED indicators for link status/speed, and LAN transformers maintain signal quality and reduced EMI for reliable communication
- COMPATIBILITY: 2.5GBASE-T variable speed options (2.5G/1G/100M/10M) with auto-negotiation; Multi-gigabit network interface card for PC is compatible with Windows, Windows Server, VMware, and Linux; Low profile bracket included for hardware compatibility
AED1,399.00
Power Over Ethernet
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power per port to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supply or PoE injectors for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content, while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling to maximize existing networks and equipment.
Enhance Existing Hardware
The network interface card connects through an available PCI Express x2 2.0 (or higher) expansion slot. The card ships with a standard-profile bracket pre-installed and includes a low-profile bracket for installation into small form factor systems and servers. This Ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.
This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9K jumbo frame, full-duplex, and Intel vPro technology.
Applications
- Connect Power over Ethernet-enabled IP cameras, phones, or Wireless Access Points
- Provide power to remotely powered devices that require a PoE power source
- Add multi-gigabit connectivity to a desktop or server
ā 2-Port PCIe 2.5G PoE+ Network Card ā Intel I225-V
š„ļø Compatibility
| Platform | Versions Supported |
|---|---|
| WindowsĀ® | 10, 11 |
| Windows ServerĀ® | 2019, 2022 |
| Linux | Kernel 5.8.x and up ā LTS versions only |
| VMware ESXi | 7.0 |
š Connectors
| Type | Quantity | Notes |
|---|---|---|
| PCI Express x2 | 1 | Bus Interface |
| RJ-45 (PoE+) | 2 | External Ports |
| 4-pin LP4 Power | 1 | Internal (Female) |
| 8-pin PCIe (6+2) Power | 1 | Internal (Female) |
š”ļø Environmental Specs
| Parameter | Range |
|---|---|
| Operating Temperature | 0Ā°C to 55Ā°C (32Ā°F to 131Ā°F) |
| Storage Temperature | ā10Ā°C to 70Ā°C (14Ā°F to 158Ā°F) |
| Humidity | 5% – 90% RH |
š§± Hardware Specs
| Feature | Details |
|---|---|
| Ports | 2 x RJ-45 (PoE+) |
| Interface | RJ45 (2.5 Gigabit Ethernet) |
| Bus Type | PCI Express x2 |
| Card Profile | Standard Profile (Low-profile bracket incl.) |
| Chipset | Intel I225-V |
š¶ Supported Standards & Protocols
-
Networking:
-
IEEE 802.3bz (2.5GBASE-T)
-
IEEE 802.3ab (1000BASE-T)
-
IEEE 802.3u (100BASE-TX)
-
IEEE 802.3i (10BASE-TX)
-
-
Power over Ethernet:
-
IEEE 802.3af (PoE)
-
IEEE 802.3at (PoE+)
-
-
Protocols & Features:
-
IEEE 802.1Q (VLAN Tagging)
-
IEEE 802.1p (QoS)
-
IEEE 802.1AS (AVB)
-
IEEE 802.1X (Wake on LAN)
-
IEEE 1588 (Precision Time Protocol)
-
IEEE P802.3az (Energy Efficient Ethernet)
-
PCI Express 2.0
-
š” LED Indicators
| LED Position | Indicator Type | Meaning |
|---|---|---|
| Left | Link Status | Solid Green = Link Active Flashing Green = Activity |
| Right | Link Speed | Green = 2.5 Gbps Amber = 1 Gbps Off = 100/10 Mbps |
š Performance
| Feature | Value |
|---|---|
| Max Data Transfer Rate | 2.5 Gbps |
| Compatible Networks | 2.5G / 1G / 100M / 10M |
| Jumbo Frame Support | 9K max |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| Wake on LAN (WoL) | Yes |
| PXE Boot | Yes |
| Promiscuous Mode | Yes |
āļø Power
| Parameter | Detail |
|---|---|
| Power Source | Bus Powered |
| Output Voltage | 48V DC |
š Physical Dimensions
| Attribute | Size |
|---|---|
| Length | 7.1 in [18.0 cm] |
| Width | 4.8 in [12.1 cm] |
| Height | 0.8 in [2.2 cm] |
| Weight | 3.9 oz [111 g] |
| Color | Black |
š¦ Packaging Info
| Attribute | Value |
|---|---|
| Package Length | 5.7 in [14.4 cm] |
| Package Width | 8.1 in [20.7 cm] |
| Package Height | 1.5 in [3.8 cm] |
| Shipping Weight | 3.7 oz [106.0 g] |
| Package Quantity | 1 |
š Box Contents
-
1 Ć PCIe Network Card
-
1 Ć Low-profile Bracket
-
1 Ć Quick-Start Guide
