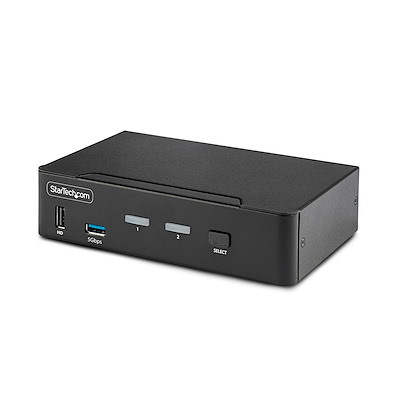

2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant – OS Independent, Metal Housing

8K 60HZ WITH HDR: Fast switch between two USB-A and DisplayPort-enabled desktops to share a keyboard, mouse, audio device, and a single 8K 60Hz DisplayPort monitor; DSC support required for maximum video performance; Supports MST Pass-through
UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch works with any operating system including Windows, macOS, ChromeOS, and Linux; Compatible with all hardware platforms such as Intel and AMD; Supports ultrawide resolutions up to 5120×1440 60Hz
MULTIPLE SWITCHING OPTIONS: Fast Switching via push-buttons or hotkeys with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer while controlling the other
THOUGHTFUL DESIGN: Metal housing is durable and helps prevent Electro-magnetic Interference (EMI); Overcurrent Protection (OCP) prevents peripherals from overdrawing power, reducing the risk of damage to the KVM and attached USB devices
TECHNICAL SPECIFICATIONS: KVM Switch is DisplayPort 1.4 compliant, supporting resolutions up to 8K 60Hz or 4K 144Hz, HDR10, HDCP 2.2/1.4, and DSC; Supports DisplayPort Audio and 3.5mm analog audio; USB 5Gbps Hub Ports; OS Independent

AED2,499.00

Share and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.

High-Resolution 8K 60Hz Video

This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120×1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Customizable Switching

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

Universal Compatibility

The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.

Reliable Performance

The durable metal housing helps prevent electromagnetic interference (EMI). Overcurrent Protection (OCP) ensures peripherals don’t overdraw power, reducing the occurrence of device dropouts or shutdowns.

Applications

Share a monitor, mouse, keyboard, and audio peripheral between two desktop computers
Great for applications like CAD/CAM, video editing, and content creation

SKU: D86A2-2-PORT-8K-KVM Category: KVM Switches Tag: D86A2-2-PORT-8K-KVM

🧾 Technical Specifications

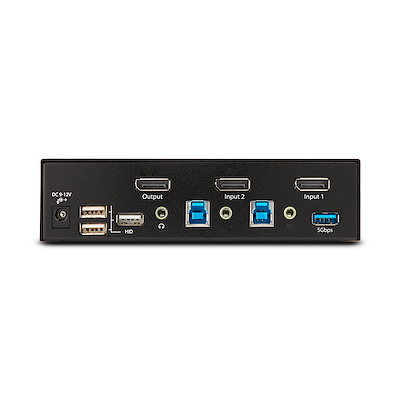

🔌 Connector(s)

Console Interface(s)

Port Type	Quantity & Details
USB Type-A (5 Gbps)	2 × 9-pin (USB 3.2 Gen 1)
USB 2.0 Type-A (480Mbps)	4 × 4-pin
DisplayPort	1 × DisplayPort
Audio Out (Stereo)	1 × 3.5mm Stereo Female (3 pos)
Power Input	1 × Barrel Connector (Size M, OD: 5.50mm, ID: 2.10mm)

Host Connectors

Port Type	Quantity & Details
USB Type-B (5 Gbps)	2 × USB 3.2 Gen 1 (9-pin)
DisplayPort	2 × DisplayPort
Audio Out (Stereo)	2 × 3.5mm Stereo Female (3 pos)

🌡️ Environmental Conditions

Condition	Specification
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Humidity	0% ~ 80% RH (Non-condensing)

🖥️ Hardware Features

Feature	Specification
Audio Support	Yes (Analog & DisplayPort Audio)
KVM Ports	2
PC Interface	USB 3.2 Gen 1 (5Gbps)
PC Video Type	DisplayPort
Monitor Support	1 Monitor
Rack-Mountable	No
Cables Included	No
Daisy-Chain Capability	No
Chipset ID	GL-3523

💡 Indicators

Indicator Type	LED Behavior
PC Connection Status	2 × Solid Green = PC Connected
PC Selection Indicator	1 × Solid Red = PC Selected

📦 Packaging Details

Attribute	Measurement
Package Height	3.7 in [9.3 cm]
Package Length	9.5 in [24.2 cm]
Package Width	7.4 in [18.7 cm]
Shipping Weight	2.5 lb [1.1 kg]
Package Quantity	1 Unit

⚙️ Performance Specifications

Feature	Details
On-Screen Display (OSD)	No
DisplayPort Revision	1.4
IP Control	No
Hot-Key Functionality	Yes
Data Transfer Rate	Up to 5Gbps
Max Resolution Supported	7680 × 4320 @ 60Hz
Wide Screen Support	Yes
Auto Scan Intervals	3, 8, 15 & 30 seconds
Port Switching Methods	Push Button & Hotkeys
MTBF	130,000 Hours

🎞️ Audio Specifications

Type	Channel Support
DisplayPort Audio	2-Channel
Analog Stereo Audio	2-Channel

🧱 Physical Characteristics

Attribute	Specification
Color	Black
Product Length	6.3 in [16.0 cm]
Product Width	3.9 in [10.0 cm]
Product Height	1.6 in [4.0 cm]
Product Weight	1.3 lb [0.6 kg]
Material	Steel

🔌 Power Specifications

Attribute	Details
Power Source	AC Adapter (Included)
Input Voltage	100 – 240V AC
Input Current	1.0A
Output Voltage	12V DC
Output Current	3A
Plug Type	Type M
Center Tip Polarity	Positive
Power Consumption	36W

💻 Software Requirements

Feature	Details
Driver Requirement	No Drivers or Software Required

⚠️ Special Notes & System Requirements

Requirement
A host must support DisplayPort 1.4 and DSC for maximum video performance.

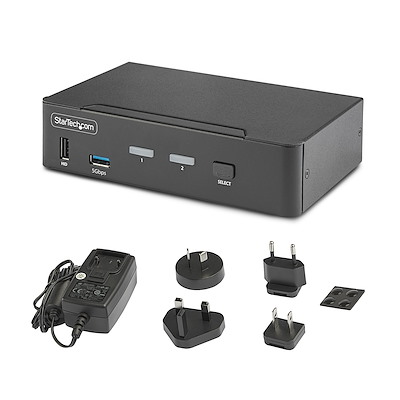

📦 Included in the Box

Contents
1 × KVM Switch
1 × Universal Power Adapter (NA/JP, EU, UK, NZ plugs)
1 × Quick-Start Guide
4 × Rubber Feet
