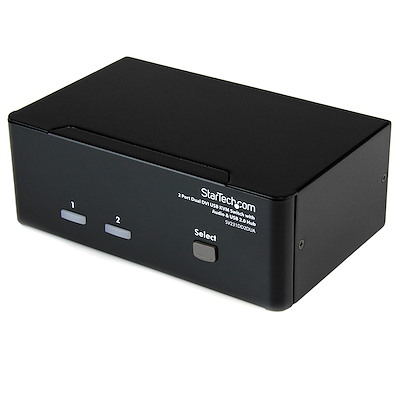

2 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub – TAA

Front panel push-buttons and Hot-key functions for easy switching
Supports resolutions up to 1920×1200 (DVI-Digital)
USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.)
Audible tone confirms port switching
Combined or independent switching of audio ports
EDID retention – eliminates hassle when switching between computers as the KVM “remembers” monitor settings
Supports all USB-capable operating systems (Windows 98e/SE/ME/2000/XP/Vista/7, Linux, Mac OS, etc.)
TMDS compliant to support DDC2B emulation and HDCP for digital content protection
Status LED display for easy port status monitoring

AED1,499.00

The SV231DD2DUA 2-port Dual DVI USB KVM Switch allows two PCs, each with dual DVI video outputs, to share two monitors, one microphone and a set of speakers, one keyboard and one mouse, as well as two other USB peripherals.

An ideal solution for graphic designers, CAD/CAM designers, or educational and financial institutions, the dual-view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional-level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives, or web cams to be shared between attached systems, eliminating duplicate peripheral costs.

Please Note: This KVM switch supports DVI-D (digital) signaling only, and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.

This product is TAA compliant and backed by a 3-year warranty with free lifetime technical support.

Applications

Dual system control for single-user workstations with dual-head video cards, increasing user productivity in the office
Control two dual-display multimedia computers with a single set of console peripherals (Keyboard, Mouse, and two Monitors)
Ideal for financial/banking industries, graphic designers, multi-media applications, and industries using CAD/CAM applications, and multiple screens

Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals

Category: KVM Switches Tag: SV231DD2DUA

✅ Compatibility

Feature	Description
OS Independent	Yes
Software Requirement	No software or drivers required

🔌 Connector(s)

Type	Description
Console Interfaces	2 × DVI-I (29 pin) 2 × 3.5 mm Mini-Jack (3 Position) 4 × USB 2.0 Type-A (480Mbps)
Host Connectors	2 × USB B (4 pin) 4 × 3.5 mm Mini-Jack (3 Position) 4 × DVI-I (29 pin)

🌡️ Environmental

Feature	Value
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	90% RH

⚙️ Hardware

Feature	Value
Audio	Yes
KVM Ports	2
PC Interface	USB
PC Video Type	DVI
Number of Monitors	2
Rack-Mountable	No
Cables Included	No
Daisy-Chain	No

💡 Indicators

Indicator Type	Description
Power LED	1 × Green – Power
Host Status	4 × Green – Host Online 4 × Red – Host Selected

📦 Packaging Information

Feature	Value
Package Height	2.8 in [7.2 cm]
Package Length	11.6 in [29.5 cm]
Package Width	7.7 in [19.6 cm]
Shipping Weight	2.8 lb [1.3 kg]
Package Quantity	1

🚀 Performance

Feature	Value
On-Screen Display	No
DVI Support	Yes – Single Link
IP Control	No
Hot-Key Selection	Yes
Max Digital Resolution	1920 x 1200
Maximum Number of Users	1
Port Selection Support	Push Button and Hotkeys
MTBF	144,000 hours

🧱 Physical Characteristics

Feature	Value
Weight of Product	27.5 oz [779 g]
Color	Black
Material	Steel
Product Length	6.4 in [16.3 cm]
Product Width	6.3 in [16 cm]
Product Height	2.2 in [5.7 cm]
Product Depth	3.9 in [100 mm]

🔋 Power

Feature	Value
Power Source	AC Adapter Included
Input Voltage	100 – 240V AC
Input Current	0.8A
Output Voltage	12V DC
Output Current	1.5A
Center Tip Polarity	Positive
Plug Type	M
Power Consumption	18 Watts

💻 Software

Feature	Description
OS Compatibility	OS independent; No software required

⚠️ Special Notes / Requirements

Note
This KVM switch supports DVI-D (digital) signaling only. It’s recommended to use DVI-D cabling for all connections (PC ↔ KVM and KVM ↔ Console) to ensure proper function. Contact technical support for help identifying proper cables.

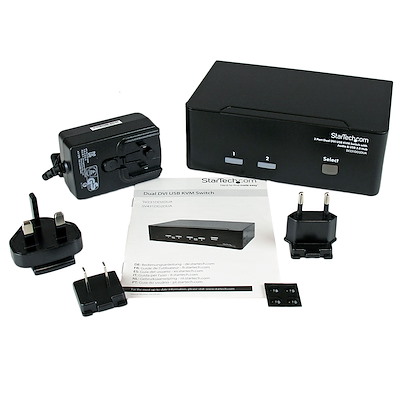

📦 What’s in the Box

Included Items
1 × Two-Port Dual DVI KVM
1 × Rubber Feet
1 × Universal Power Adapter (NA/JP, EU, UK, ANZ)
1 × User Manual
