2-Port Dual-Monitor DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 5ft/1.5m USB-A/DisplayPort/Audio Integrated Cables, Bus Powered – Remote Push Button/Hotkey Switching


Share a mouse, keyboard, and dual 4K 60Hz DisplayPort displays between two DisplayPort enabled computers, using this KVM Switch with built-in cables



  • DUAL 4K 60HZ MONITOR KVM SWITCH: Enables switching between two USB-A and DisplayPort-enabled desktops to share a mouse, keyboard, audio, and dual-4K 60Hz DisplayPort displays
  • READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features integrated 5ft/1.5m host cables to allow for extended reach, reducing port and connector strain
  • SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other
  • COMPATIBILITY: 2-Port Dual-Monitor KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel and AMD
  • OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts

AED1,599.00

This Dual-Monitor KVM Switch enables users to switch between two USB-A and DisplayPort enabled desktops, sharing dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and audio input/output devices.

Hassle-Free Setup

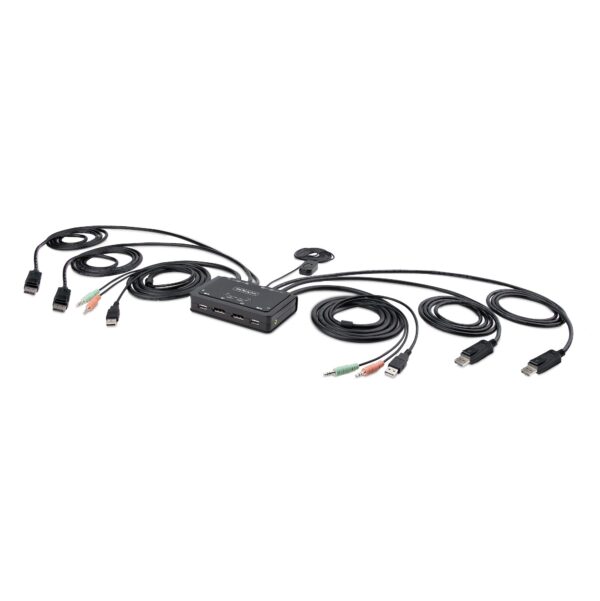

The KVM switch is bus powered and features built-in dual-DisplayPort, USB-A, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals – without the need to select and purchase the cables required for those connections.

Compatibility

The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2.

Intuitive Control

The KVM switch offers two options to switch between hosts – a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.

Enhance Productivity and Device Management with theĀ  Connectivity Tools Application

Developed to improve performance and security,Ā  Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Advanced Windows Layout Utility: Set up and save custom windows layouts.
  • MAC Address Pass-Through Utility: Improve network security.
  • USB Event Monitoring Utility: Track and log connected USB devices.
  • Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via a wired LAN.

āœ… Specifications Table


šŸ–„ļø Compatibility

Supported Operating Systems
Windows 7, 8/8.1, 10, 11
macOS Sierra (10.12) – Monterey (12.0)
macOS High Sierra (10.13), Mojave (10.14), Catalina (10.15)
macOS Big Sur (11.0)
Chrome OS

šŸ”Œ Connector(s)

Type Description
Console Interface(s) – 1 Ɨ 3.5mm Stereo (3 pos)
– 1 Ɨ 3.5mm Stereo (3 pos)
– 2 Ɨ DisplayPort
– 2 Ɨ USB 2.0 Type-A
Host Connectors – 4 Ɨ DisplayPort
– 2 Ɨ USB 2.0 Type-A
– 4 Ɨ 3.5mm Stereo (3 pos)

šŸŒ”ļø Environmental

Feature Details
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 0% ~ 90% RH (non-condensing)

āš™ļø Hardware

Feature Details
Audio Yes
KVM Ports 2
PC Interface USB
PC Video Type DisplayPort
Number of Monitors Supported 2
Rack-Mountable No
Cables Included Yes
Chipset ID SN8P2202SG
Daisy-Chain No

šŸ’” Indicators

LED Status Meaning

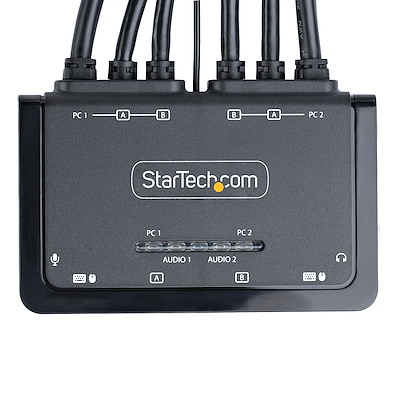

Solid Green Selected PC is Connected
Blinking Green Selected PC is Not Detected
Amber Selected Audio Source

šŸ“¦ Packaging Information

Feature Details
Package Quantity 1
Package Length 10.4 in [26.5 cm]
Package Width 26.0 in [66.0 cm]
Package Height 3.8 in [9.6 cm]
Shipping Weight 2.1 lb [1.0 kg]

šŸš€ Performance

Feature Details
On-Screen Display No
Video Revision DisplayPort 1.2
IP Control No
Hot-Key Selection Yes
Max Data Transfer Rate 480Mbps (USB 2.0)
Supported Resolutions 4096Ɨ2160, 3840Ɨ2160, 5120Ɨ1440, 3440Ɨ1440, 2560Ɨ1440, 2560Ɨ1080, 1920Ɨ1200, 1920Ɨ1080 @ 60Hz
Other resolutions may be supported
Wide Screen Supported Yes
Audio Specifications DisplayPort – 2 Channel Audio
Analog Stereo – 2 Channel Audio
Auto Scan 10, 20, 30, 40, 50, and 60 seconds
Port Selection Support Push Button and Hotkeys / Software
MTBF 419,293 Hours

🧱 Physical Characteristics

Feature Details
Color Black
Material ABS
Product Length 4.9 in [12.5 cm]
Product Width 3.5 in [9.0 cm]
Product Height 1.0 in [2.5 cm]
Weight of Product 1.3 lb [0.6 kg]
Cable Length 4.9 ft [1.5 m]

šŸ”‹ Power

Feature Details
Power Source Bus Powered

šŸ’¾ Software

Feature Details
OS Compatibility Windows 7, 8/8.1, 10, 11
macOS 10.12 – 10.15, 11, 12
ChromeOS
Note Software is optional. KVM works without software on any OS.

šŸ“¦ What’s in the Box

Included Items
1 Ɨ KVM Switch
1 Ɨ Quick-Start Guide
