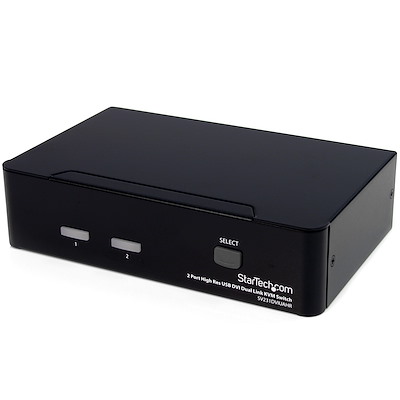

2 Port High Resolution USB DVI Dual Link KVM Switch with Audio – TAA


Control two high resolution DVI multimedia computers from a single console

  • Designed for high-resolution applications: 2560×1600 @ 60Hz: Higher resolutions (3840 x 2400) are supported at lower refresh rates
  • Hot-key or front panel push-button computer selection
  • Integrated USB 2.0 hub allows you to share up to three high-speed USB devices between computers
  • All metal chassis for long-term durability
  • Compatible with all USB-supported Operating Systems
  • HDCP Compliant

AED1,499.00

The SV231DVIUAHR 2-Port High Resolution Dual-Link DVI USB KVM Switch provides simple, yet comprehensive control of 2 directly-connected computers, as well as audio switching capability and support for high resolution applications (supports resolutions beyond 1080p: 2560×1600 @ 60Hz, up to 3840 x 2400 at lower refresh rates), offering a superior KVM switching solution that integrates perfectly into demanding imaging, medical, and multimedia environments.

This 2-port DVI USB KVM Switch is compatible with all USB-supported operating systems, and features a built-in USB 2.0 hub that allows you to share additional (up to 2) high speed USB devices between computers.


Applications

  • Designed for large and high resolution displays such as Multimedia Displays, Stock trading setups, and Medical Screens
  • Ideal for using desktops, workstations and servers with Ultra High resolution displays
  • Great for television and graphic production studios where crisp, lossless digital images are crucial
  • Sharing high-end gaming computers and USB devices in the home
Category: Tag:

āœ… Compatibility

Feature Description
OS Compatibility OS Independent
Software Requirement OS independent; No software or drivers required

šŸ”Œ Connector(s)

Type Details
Console Interface(s) 4 Ɨ USB 2.0 Type-A (4 pin, 480Mbps)
2 Ɨ 3.5 mm Mini-Jack (3 Position)
1 Ɨ DVI-I (29 pin)
Host Connectors 4 Ɨ 3.5 mm Mini-Jack (3 Position)
2 Ɨ DVI-I (29 pin)
2 Ɨ USB B (4 pin)

šŸŒ”ļø Environmental

Feature Value
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 0 ~ 80% RH

āš™ļø Hardware

Feature Details
Audio Yes
KVM Ports 2
PC Interface USB
PC Video Type DVI
Number of Monitors 1
Rack-Mountable No
Cables Included No
Daisy-Chain Support No

šŸ“¦ Packaging Information

Feature Value
Package Height 3.9 in [9.8 cm]
Package Length 9.9 in [25.2 cm]
Package Width 7.5 in [19.0 cm]
Package Quantity 1
Shipping Weight 2.5 lb [1.1 kg]

šŸš€ Performance

Feature Value
On-Screen Display No
DVI Support Yes
IP Control No
Hot-Key Selection Yes
Max Digital Resolution 2560Ɨ1600 @ 60Hz
Max Number of Users 1
Port Selection Support Push Button and Hotkeys
MTBF 126,397 hours

🧱 Physical Characteristics

Feature Value
Color Black
Material Steel
Product Length 6.3 in [15.9 cm]
Product Width 3.9 in [10.0 cm]
Product Height 1.6 in [4.0 cm]
Product Weight 1.4 lb [0.6 kg]

šŸ”‹ Power

Feature Value
Power Source AC Adapter Included
Input Voltage 100 – 240 AC
Input Current 0.8A
Output Voltage 12V DC
Output Current 1.5A
Center Tip Polarity Positive
Plug Type M
Power Consumption 18 W

šŸ’» Software

Feature Value
OS Compatibility OS independent; No drivers required

ā— Special Notes

Note
Resolutions exceeding 2560Ɨ1600 can be achieved by using a lower refresh rate (e.g., 3840Ɨ2400 @30Hz).

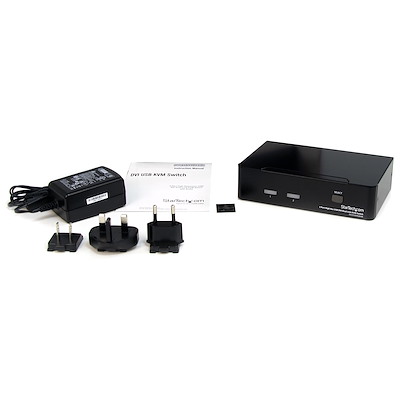

šŸ“¦ What’s in the Box

Included Items
1 Ɨ 2 Port DVI USB KVM
1 Ɨ Rubber Foot Pad
1 Ɨ Universal Power Adapter (NA/EU/UK or ANZ depending on region)
1 Ɨ User Manual
