2-Port Hybrid USB-C DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A/DisplayPort/Audio & 4ft/1.2m USB-C Integrated Host Cables, Bus Powered – Remote Push Button/Hotkey Switching


  • 4K 60HZ HYBRID KVM SWITCH: Enables switching between a USB-A/DisplayPort desktop and a USB-C DP-Alt Mode enabled laptop to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz DisplayPort monitor
  • READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features built-in 6ft/1.8m USB-A, DisplayPort, and Audio host cables for PC1, & 4ft/1.2m USB-C and Audio host cables for PC2
  • COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook/Mac Mini); Works with USB-C, USB4, Thunderbolt 3/4
  • SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other
  • OURĀ ADVANTAGE:Ā IncludedĀ connectivityĀ toolsĀ forĀ ITĀ Pro’sĀ andĀ ITĀ help-deskĀ supportĀ teamsĀ withĀ USBĀ EventĀ Monitoring for logging USB device connections with timestamps,Ā andĀ WindowsĀ Layout to restore windows locations upon switching hosts

AED999.00

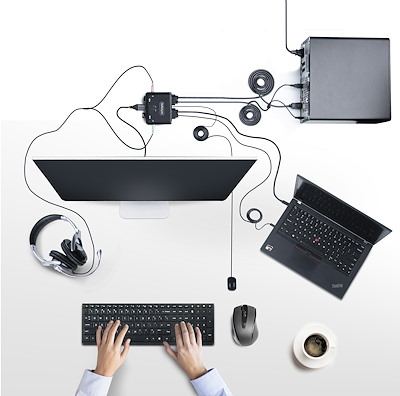

This Hybrid KVM Switch enables users to switch between a USB Type-A and DisplayPort-enabled desktop and a USB Type-C (DP Alt-Mode) enabled laptop, to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz DisplayPort monitor.

Hassle-Free Setup

The KVM switch is bus powered and features built-in DisplayPort, USB-A, USB-C, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals – without the need to select and purchase the cables required for those connections.

Compatibility

The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2. The USB-C host port works with USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops. If the desktop does not have a 4-position 3.5mm port the included 3.5mm Headset Adapter ensures compatibility out of the box.

Intuitive Control

The KVM switch offers two options to switch between hosts – a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.

Enhance Productivity and Device Management with theĀ  Connectivity Tools Application

Developed to improve performance and security,Ā  Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Advanced Windows Layout Utility: Setup and save custom windows layouts.
  • MAC Address Pass-Through Utility: Improve network security.
  • USB Event Monitoring Utility: Track and log connected USB devices.
  • Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download theĀ  Connectivity Tools application,

SKU: C2-D46-UAC-CBL-KVM Category: Tag:

🧾 Specifications Table


šŸ”Œ Connector(s)

Type Details
Console Interfaces 1 Ɨ DisplayPort
2 Ɨ USB 2.0 Type-A (4 pin, 480Mbps)
2 Ɨ 3.5mm Stereo (3-pos Female)
Host Connectors 1 Ɨ USB-C (DP Alt-Mode)
2 Ɨ 3.5mm Stereo (4-pos Male)
1 Ɨ DisplayPort
1 Ɨ USB 2.0 Type-A

šŸŒ”ļø Environmental

Item Details
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 0% ~ 90% RH (non-condensing)

āš™ļø Hardware Features

Item Details
Audio Yes
KVM Ports 2
PC Interface USB & USB-C
PC Video Type DisplayPort
Number of Monitors 1
Rack-Mountable No
Cables Included Yes
Chipset ID SN8P2202SG
Daisy-Chain No

šŸ”µ Indicators

LED Status Meaning
Solid Green Selected PC is connected
Blinking Green Selected PC is not detected

šŸ“¦ Packaging Information

Item Details
Package Quantity 1
Length 9.9 in [25.2 cm]
Width 6.4 in [16.3 cm]
Height 2.4 in [6.0 cm]
Shipping Weight 15.7 oz [444.0 g]

šŸš€ Performance

Item Details
On-Screen Display No
Video Revision DisplayPort 1.2
IP Control No
Hot-Key Selection Yes
Max Data Transfer Rate 480Mbps (USB 2.0)
Supported Resolutions 5120Ɨ1440, 4096Ɨ2160, 3840Ɨ2160, 3440Ɨ1440, etc. @ 60Hz
Wide Screen Supported Yes
Audio DisplayPort & Analog Stereo – 2 Channel
Auto Scan Intervals 10, 20, 30, 40, 50, 60 seconds
Port Selection Methods Push Button, Hotkeys, Software

šŸ“ General Specifications

Item Details
PC1 Cable Length 1.2m / 4 ft
PC2 Cable Length 1.8m / 6 ft
MTBF 261,196 Hours

šŸ“ Physical Characteristics

Item Details
Color Black
Length 3.7 in [9.5 cm]
Width 3.1 in [8.0 cm]
Height 0.9 in [2.4 cm]
Weight 13.4 oz [380.0 g]
Material ABS

šŸ”Œ Power

Item Details
Power Source Bus Powered
Input Voltage 5V DC

šŸ’» Software & OS Compatibility

OS Supported
Windows 7, 8/8.1, 10, 11, 11 ARM
macOS 10.12 – 10.15, 11, 12
ChromeOS

Note: KVM works without software on all platforms; software is optional.


šŸ“¦ What’s in the Box

Included Items
1 Ɨ KVM Switch
1 Ɨ 3.5mm (4-pos) to 2 Ɨ 3.5mm (3-pos) Headset Adapter
1 Ɨ Quick-Start Guide
