KVM Switches

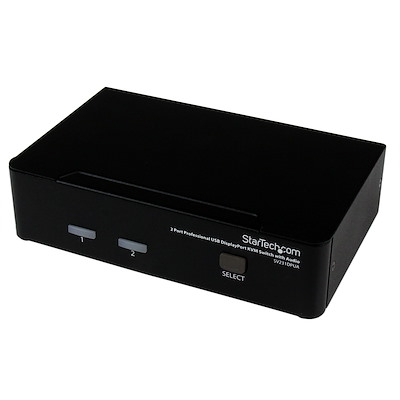

2 Port Professional USB DisplayPort KVM Switch with Audio – TAA
Control two computers from a single console, with high-resolution DisplayPortĀ® video, USB keyboard, mouse, and audio
- Supports native DisplayPort computer connections – no adapter required
- Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p
- VESA and CEA compliant
- Supports a maximum resolution of 3840 x 2400 at lower refresh rates
- Supports 3.5mm Stereo analog audio; Supports 7.1 Channel High Definition Digital Audio through the DisplayPort connection
- USB 2.0 peripheral sharing
- No driver or software installation required
- Hotkey and push-button switching
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- Platform Independent – Supports Mac and PC operating environments
- Supports DDC2B for monitor detection
- Supports hot-plug, unplug,a nd link status-failure detection
- User-defined scan time intervals
AED1,599.00
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Applications
- Multimedia design, multimedia post-production and video editing using Mac or PC computers
- High resolution medical imaging and Health care display, such as MRI and Xray display
- Manufacturing line computer control
- PC test/burn-in computer control
- High-res Digital Signage server control
- Satellite Topography
- Dual system control for a single work terminal
ā Compatibility
| Feature | Details |
|---|---|
| OS Compatibility | OS Independent; No software or drivers required |
š Connector(s)
| Type | Details |
|---|---|
| Console Interfaces | 4 Ć USB 2.0 Type-A (4 pin, 480Mbps) 1 Ć DisplayPort (20 pin) 2 Ć 3.5 mm Mini-Jack (3 Position) |
| Host Connectors | 2 Ć USB B (4 pin) 4 Ć 3.5 mm Mini-Jack (3 Position) 2 Ć DisplayPort (20 pin) |
š”ļø Environmental
| Feature | Value |
|---|---|
| Operating Temperature | 0Ā°C to 40Ā°C (32Ā°F to 104Ā°F) |
| Storage Temperature | -20Ā°C to 60Ā°C (-4Ā°F to 140Ā°F) |
| Humidity | 0% ~ 80% RH |
āļø Hardware
| Feature | Value |
|---|---|
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | No |
| Daisy-Chain | No |
š” Indicators
| Indicator Type | Description |
|---|---|
| LED Indicators | 2 Ć Green (Online Indicator – One per port) 2 Ć Red (Selected Indicator – One per port) |
š¦ Packaging Information
| Feature | Value |
|---|---|
| Package Quantity | 1 |
| Package Length | 7.4 in [18.7 cm] |
| Package Width | 10.1 in [25.6 cm] |
| Package Height | 3.9 in [9.9 cm] |
| Shipping Weight | 2.4 lb [1.1 kg] |
š Performance
| Feature | Value |
|---|---|
| On-Screen Display | No |
| DVI Support | No |
| IP Control | No |
| Hot-Key Selection | Yes |
| Max Digital Resolution | 2560 Ć 1600 @ 60Hz |
| Wide Screen Supported | Yes |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 127,000 hours |
š§± Physical Characteristics
| Feature | Value |
|---|---|
| Color | Black |
| Material | Steel |
| Product Length | 6.3 in [16.0 cm] |
| Product Width | 1.6 in [4.0 cm] |
| Product Height | 3.9 in [9.9 cm] |
| Product Depth | 5.1 in [130 mm] |
| Product Weight | 1.4 lb [0.6 kg] |
š Power
| Feature | Value |
|---|---|
| Power Source | AC Adapter Included |
| Input Voltage | 100 – 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 2A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 24W |

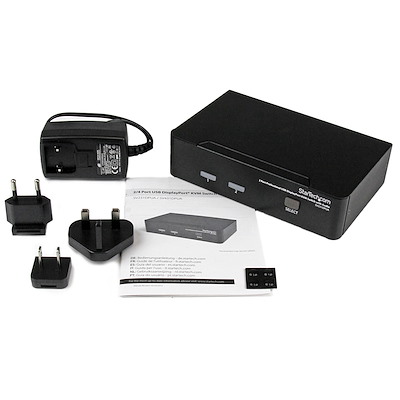

š¦ What’s in the Box
| Included Items |
|---|
| 1 Ć 2-Port DisplayPort KVM Switch |
| 4 Ć Foot Pads |
| 1 Ć Universal Power Adapter (NA/UK/EU/AU) |
| 1 Ć Instruction Manual |
