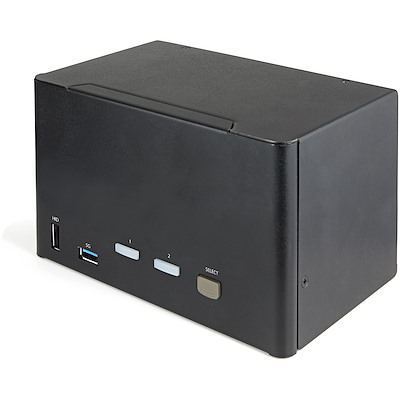

2 Port Quad Monitor DisplayPort KVM Switch – 4K 60Hz UHD HDR – Desktop 4K DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio – Hotkey Switching – TAA


KVM with USB | Quad Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

  • IMPROVE EFFICIENCY: Switch between two computers with four monitors using USB and DisplayPort video from a single keyboard, monitor, and mouse using keyboard hotkeys or push buttons to switch between active computers
  • QUADRUPLE 4K 60Hz UHD: DisplayPortĀ quad screen KVM switch supports up to 4K at 60Hz on four monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
  • TECH SPECS: 2 Port KVM | Quad Display | DisplayPort 1.2 | 3840 x 2160 60 Hz | HDCP 2.2 | HDR Support | 2 Port USB 3.0 Hub | 4x USB HID | Hotkey & Push Button | OS Independent | Stereo Analog + Digital Audio | DP + USB Console
  • USER-FRIENDLY: KVM switch with compact & durable steel housing features large buttons & easily accessible front-mounted integrated USB 3.0 port 5Gbps (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers

AED3,699.00

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and drives four large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

SKU: SV231QDPU34K Category: Tag:

āœ… Compatibility

Feature Description
OS Compatibility OS Independent


šŸ”Œ Connector(s)

Type Details
Console Interface(s) 4 Ɨ DisplayPort (20 pin, Female)
2 Ɨ USB 3.0 A (9 pin, Female)
4 Ɨ USB 1.1 Type-A (HID)
1 Ɨ 3.5 mm Audio (Female)
Host Connectors 8 Ɨ DisplayPort (20 pin, Female)
2 Ɨ USB 3.0 B (9 pin, Female)
2 Ɨ 3.5 mm Audio (Female)

šŸŒ”ļø Environmental

Feature Value
Operating Temperature 0ā„ƒ ~ 40ā„ƒ
Storage Temperature -10ā„ƒ ~ 60ā„ƒ
Humidity 0% ~ 80%

āš™ļø Hardware

Feature Details
Audio Yes
Cables Included No
Daisy-Chain Support No
Number of Monitors 4
KVM Ports 2
PC Interface USB 3.2 Gen 1 (5Gbps)
PC Video Type DisplayPort
Chipset ID Genesys Logic – GL3523

šŸ’” Indicators

Indicator Type Description
LED 2 Ɨ Green (Power/Sync)
2 Ɨ Red (Selected Host)

šŸ“¦ Packaging Information

Feature Value
Package Height 4.0 in [10.2 cm]
Package Length 10.0 in [25.3 cm]
Package Width 7.4 in [18.7 cm]
Shipping Weight 3.4 lb [1.6 kg]
Package Quantity 1

šŸš€ Performance

Feature Value
Auto Scan 3, 8, 15 & 30 seconds
MTBF 156,000 hrs
Port Selection Support Push Button and Hotkeys
On-Screen Display (OSD) No
Video Revision DisplayPort 1.2
IP Control No
Hot-Key Selection Yes
Wide Screen Supported Yes

šŸ”Š Audio Specifications

Audio Type Support
DisplayPort 5.1 Channel Audio
DisplayPort 2 Channel Audio
Analog Stereo 2 Channel Audio

🧱 Physical Characteristics

Feature Value
Color Black
Material Steel
Product Height 3.6 in [9.2 cm]
Product Length 6.3 in [16.0 cm]
Product Width 3.9 in [10.0 cm]
Weight of Product 2.2 lb [1.0 kg]

šŸ”‹ Power

Feature Value
Power Source AC Adapter Included
Input Voltage 100 – 240 AC
Input Current 1.0A
Output Voltage 12V DC
Output Current 3A
Center Tip Polarity Positive
Plug Type M
Power Consumption 36W

šŸ“¦ What’s in the Box

Included Items
1 Ɨ KVM Switch
1 Ɨ Universal Power Adapter (NA/JP, EU, UK, NZ)
4 Ɨ Rubber Feet
1 Ɨ Quick-Start Guide
