2-Port USB-C KVM Switch, Single 4K 60Hz DisplayPort Monitor, 3.5mm Audio, 6x USB Hub Ports, Hot Key Switching, Thunderbolt 3/4 Compatible – TAA


DisplayPort 1.2 KVM | 6x USB Hub Ports | Digital & Analog Audio | TAA Compliant

  • USB-C DP ALT MODE: Share a monitor, mouse, keyboard and peripherals using a single USB-C cable connected to any PC, laptop or Macbook that supports USB-C DP Alt-mode – Host USB-C DP Alt Mode ports support up to 4K 60Hz and USB transfer speeds up to 5 Gbps
  • 4K 60HZ WITH HDR: This KVM supports up to 4K 60Hz (4:4:4) with 6x USB-A 480Mbps hub ports – Supports wide screen resolutions up to 5120×1440 @ 60Hz – This KVM Switch is ideal for applications such as CAD/CAM, video editing, and content creation
  • MAXIMIZE VIDEO OR USB PERFORMANCE: Prioritize video or USB transfer speed performance with this KVM Switch; Choose between 4K 60Hz with USB 2.0 hub ports or add two 5Gbps hub ports with 4K 30Hz, using the mode switch on the rear of the KVM
  • ANALOG & DIGITAL AUDIO: This USB C KVM Switch supports 2ch analog and digital audio output and microphone input through 3.5mm or USB-C ports, allowing all multimedia to be centralized and controlled – Audio profiles are available through hotkey toggling
  • TECH SPECS: Up to 4K 60Hz – DisplayPort 1.2 – HDCP 2.2 – HDR – 2x USB-C Host Ports – 6x USB HID Hub Ports – 3.5mm Audio & Mic – USB Audio – Hotkey or Push Button Switching – USB4, Thunderbolt 3/4 Compatible – OS Independent – TAA Compliant

AED1,899.00

This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.

4K 60Hz Resolution

This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Analog and Digital Audio

This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.

Intuitive Control

The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.



Applications

  • Share a monitor, mouse, keyboard, and peripherals using a single USB-C cable per host
  • Great for applications like CAD/CAM, video editing, and content creation
SKU: SV231DPUCA Category: Tag:

āœ… Compatibility

Feature Details
OS Compatibility OS Independent
Software Requirement No software or drivers required

šŸ”Œ Connector(s)

Type Details
Console Interfaces 1 Ɨ 20-pin DisplayPort Female
2 Ɨ USB 3.0 Type-A (9 pin)
4 Ɨ USB 1.1 Type-A (HID Port)
2 Ɨ 3.5mm Stereo Audio Female (3 Position)
Host Connectors 2 Ɨ USB-C (24 pin) – DisplayPort Alt Mode

šŸŒ”ļø Environmental

Feature Value
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Humidity 0% ~ 80% RH

āš™ļø Hardware

Feature Details
Audio Yes
KVM Ports 2
PC Interface USB-C
PC Video Type USB-C (DP Alt-Mode)
Number of Monitors 1
Rack-Mountable No
Cables Included No
Chipset ID Parade – PS8461
Etron – EJ899I
Daisy-Chain Support No

šŸ’” Indicators

Type Description
LED Indicators 2 Ɨ Red (Selected Host)
2 Ɨ Green (Power/Sync)

šŸ“¦ Packaging Information

Feature Value
Shipping Weight 2.4 lb [1.1 kg]
Package Height 3.7 in [9.4 cm]
Package Length 9.4 in [24.0 cm]
Package Width 7.3 in [18.6 cm]
Package Quantity 1

šŸš€ Performance

Feature Value
On-Screen Display No
Video Revision DisplayPort 1.2
IP Control No
Hot-Key Selection Yes
Max Data Transfer Rate 5 Gbps
Wide Screen Supported Yes
Audio Specs Analog Stereo – 2 Channel Audio
Auto Scan 3, 8, 15 & 30 seconds
Port Selection Push Button and Hotkeys
MTBF 158,000 hours

🧱 Physical Characteristics

Feature Value
Product Height 1.6 in [4.0 cm]
Product Width 5.5 in [14.0 cm]
Product Length 6.3 in [16.0 cm]
Weight 1.4 lb [0.6 kg]

šŸ”‹ Power

Feature Value
Power Source AC Adapter Included
Input Voltage 100 – 240 AC
Input Current 1.2 A
Output Voltage 12V DC
Output Current 3 A
Center Tip Polarity Positive
Plug Type M

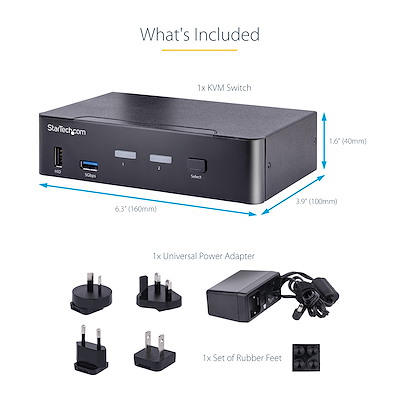

šŸ“¦ What’s in the Box

Included Items
1 Ɨ KVM Switch
1 Ɨ Set of Rubber Feet
1 Ɨ Universal Power Adapter
1 Ɨ Quick-Start Guide
