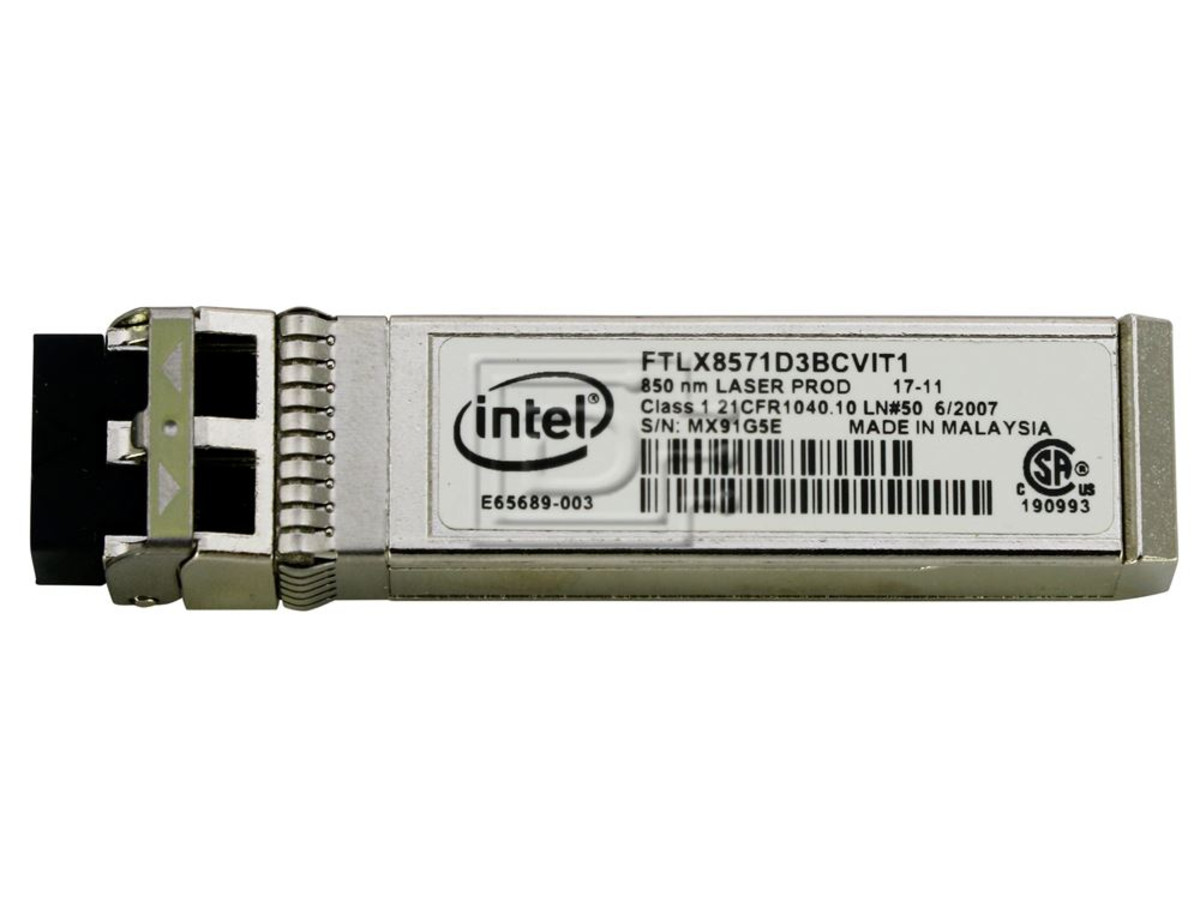

Dell 407-BCBN / 4Y8DN 10Gb/S 850nm SR Optic SFP+ Transceiver

Add to Wishlist

Interface Types:Ā SFP

Electrical Interface:Ā Ethernet 10Gigabit – 10Gbps

Voltage:Ā 3.3V

Compatible Systems:Ā Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630

AED499.00

Add to Wishlist

Dell 407-BCBN / 4Y8DN 10Gb/s 850nm SR optic SFP+ Transceiver – Brand New

Dell 407-BCBN / 4Y8DN 10Gb/s 850nm SR optic SFP+ Transceiver – Brand New

Dell Part 407-BCBN 4Y8DN

The Dellā„¢ SFP+ SR transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking SFP+ SR transceiver provides 10 GbE-1 GbE connectivity.

The Dellā„¢ SFP+ SR transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking SFP+ SR transceiver provides 10 GbE-1 GbE connectivity.

Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.

The Dellā„¢ SFP+ SR transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking SFP+ SR transceiver provides 10GbE-1GbE connectivity.

Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.

Product Features

  • Hot-pluggable SFP+ footprint
  • Supports 9.95 to 10.5 Gb/s bit rates
  • Power dissipation < 1W
  • RoHS-6 compliant (lead-free)
  • Commercial temperature range 0Ā°C to 70Ā°C
  • Single 3.3Vpower supply
  • Maximum link length of 300m on 2000 MHZ-km MMF
  • Uncooled 850nm VCSEL laser
  • Receiver limiting electrical interface
  • Duplex LC connector
  • Built-in digital diagnostic functions
  • Operating temperature range: 0Ā°C to 70Ā°C

Applications

  • 10GBASE-SR/SW 10G Ethernet
  • 1200-Mx-SN-I 10G Fibre Channel

Alt Pt#Ā FTLX8571D3BCVIT1
DPN: Y3KJN

Compatibility:

Compatible with SFF-8432 and applicable portions of SFF-8431

Designed For sERVERS AND san WITH SFP+ sockets

PowerEdge C4140, FC630, M820; PowerEdge C6420, C6525, FC640, M640, R240, R340, R440, R540, R640, R6415, R6515, R6525, R730, R730xd, R740, R740xd, R740xd2, R7415, R7425, R7515, R7525, R840, R940, T140, T340, T440, T640, XR2; PowerVault ME4012, ME4024, ME4084

SKU: 407-BCBN Category:
10Gb/s 850nm Multimode Datacom SFP+ Transceiver
Model Number 407-BCBNĀ  /Ā  4Y8DN
PARAMETER
Maximum Supply Voltage
  • Symbol: Vcc
  • Min: -0.5
  • Max: 4.0
  • Unit: V
Storage Temperature
  • Symbol: Ts
  • Min: -40
  • Max: 85
  • Unit:Ā Ā°C
Case Temperature
  • Symbol: TA
  • Min: 0
  • Max: 70
  • Unit:Ā Ā°C
Relative Humidity
  • Symbol: RH
  • Min: 0
  • Max: 85
  • Unit: %
  • Ref: 1
Supply Voltage
  • Symbol: Vcc
  • Min: 3.14
  • Max: 3.46
  • Unit: V
Supply Current
  • Symbol: Icc
  • Max: 250
  • Unit: V
ELECTRICAL TRANSMITTER
Input differential impedance
  • Symbol: Rin
  • Typ: 100
  • Unit: Ī©
  • Ref: 1
Differential data input swing
  • Symbol: Vinn,pp
  • Min: 180
  • Max: 700
  • Unit: mV
Transmit Disable Voltage
  • Symbol: VD
  • Min: 2
  • Max: Vcc
  • Unit: V
Transmit Enable Voltage
  • Symbol: Ven
  • Min: Vee
  • Max: Vee+0.8
  • Unit: V
ELECTRICAL RECEIVER
Differential data output swing
  • Symbol: Vout,pp
  • Min: 300
  • Max: 850
  • Unit: mV
  • Ref: 2.6
Data output rise time, fall time
  • Symbol: tr
  • Min: 28
  • Unit : ps
  • Ref: 3
LOS Fault
  • Symbol: V LOS fault
  • Min: 2
  • Max: VccHOST
  • Unit: V
  • Ref: 4
LOS Normal
  • Symbol: V LOS norm
  • Min: Vee
  • Max: Vee+0.8
  • Unit: V
  • Ref: 4
Power Supply Noise Tolerance
  • Symbol: VccT/VccR
  • Min, Typ, Max: Per SFF-8431 Rev 3.0
  • Unit: mVpp
  • Ref: 5
OPTICAL TRANSMITTER
Optical Modulation Amplitude (OMA)
  • Symbol: POMA
  • Typ: -1.5
  • Unit: dBm
  • Ref: 1
Average Launch Power
  • Symbol: PAVE
  • Min: -5
  • Max: -1
  • Unit: dBm
  • Ref: 2
Optical Wavelength
  • Symbol:Ā Ī»
  • Min: 840
  • Typ: 850
  • Max: 860
  • Unit: nm
RMS Spectral Width
  • Symbol:Ā Ī”Ī»rms
  • Max: 0.45
  • Unit: dBm
Optical Extinction Ratio
  • Symbol: ER
  • Min: 3.
  • Max: 5.5
  • Unit: dB
Transmitter and Dispersion Penalty
  • Symbol: TDP
  • Max: 3.9
  • Unit: dB
Average Launch power of OFF transmitter
  • Symbol: POFF
  • Max: -30
  • Unit: dB
Tx Jitter
  • Symbol: Txj
  • Min, Typ, Max :Ā Per IEEE 802.3ae requirements
Relative Intensity Noise
  • Symbol: RIN12OMA
  • Max: -128
  • Unit: dB/Hz
OPTICAL RECEIVER
Receiver Sensitivity (OMA) = 10.3 Gb/s
  • Symbol: RxSENS1
  • Max: -11.1
  • Unit: dBm
Stressed Receiver Sensitivity (OMA) = 10.3 Gb/s
  • Symbol: RxSENS2
  • Max: -7.5
  • Unit: dBm
Receiver OMA Sensitivity = 14.025 Gb/s
  • Symbol: RxSENS
  • Max: Vee+0.8
  • Unit: V
Maximum Input Power
  • Symbol: PMAX
  • Min: +0.5
  • Unit: dBm
Wavelength Range
  • Symbol: Ī»C
  • Min: 840
  • Max: 860
  • Unit: nm
Receiver Reflectance
  • Symbol: Rrx
  • Max: 012
  • Unit: dB
LOS De-Assert
  • Symbol: LOSD
  • Max: -14
  • Unit: dBm
LOS Assert
  • Symbol: LOSA
  • Min: -30
  • Typ: -23
  • Unit: dBm
LOS Hysteresis
  • Min: 0.5
  • Unit: dB
GENERAL SPECIFICATION
Bit Rate
  • Symbol: BR
  • Min: 9.95
  • Max: 10.5
  • Unit: Gb/sec
  • Ref: 1
Bit Error Ratio
  • Symbol: BER
  • Max: 10^-12
  • Ref: 2
Fiber Type 850nm OFL Bandwidth
Maximum support distances Fiber type 62.5Āµm 160 MHz-km

  • Symbol: Lmax
  • Max: 26
  • unit: mOM1 200 Mhz-km
  • Symbol: Lmax
  • Max 33
  • unit: m
Maximum support distances Fiber type 50 Āµm 400 MHz-km

  • Symbol: Lmax
  • Max: 66
  • unit: m

OM2 500 Mhz-km

  • Symbol: Lmax
  • Max 82
  • unit: m

OM3 2000 Mhz-km

  • Symbol: Lmax
  • Max 82
  • unit: m
ENVIROMENTAL SPECIFICATION
Case Operating Temperature
  • Symbol: Top
  • Min: 0
  • Max: 70
  • Unit: Ā°C
Storage Temperature
  • Symbol: Tsto
  • Min: -40
  • Max: 85
  • Unit: Ā°C
DIGITAL DIAGNOSTIC ACCURACY
Internally measured transceiver temperature
  • Symbol: DDTemperature
  • Min: -3
  • Max: 3
  • Unit: Ā°C
Internally measured transceiver supply voltage
  • Symbol: DDVoltage
  • Min: -100
  • Max: 100
  • Unit: mV
Measured TX bias current
  • Symbol: DDBias
  • Min: -10
  • Max: 10
  • Unit: %
  • Ref: 1
Measured TX output power
  • Symbol: DDTx-Power
  • Min: -2
  • Max: 2
  • Unit: dB
Measured RX received average optical power
  • Symbol: DDRx-Power
  • Min: -2
  • Max: 2
  • Unit: dB
DIGITAL DIAGNOSTIC DYNAMIC RANGE FOR RATED ACCURACY
Internally measured transceiver temperature
  • Symbol: DDTemperature
  • Min: 0
  • Max: 70
  • Unit: Ā°C
Internally measured transceiver supply voltage
  • Symbol: DDVoltage
  • Min: 3.14
  • Max: 3.46
  • Unit: V
Measured TX bias current
  • Symbol: DDBias
  • Min: 0
  • Max: 20
  • Unit: mA
Measured TX output power
  • Symbol: DDTx-Power
  • Min: -9
  • Max: -2.5
  • Unit: dBm
Measured RX received average optical power
  • Symbol: DDRx-Power
  • Min: -20
  • Max: 0
  • Unit: dBm
DIGITAL DIAGNOSTIC MAX REPORTING RANGE
Internally measured transceiver temperature
  • Symbol: DDTemperature
  • Min: -40
  • Max: 125
  • Unit: Ā°C
Internally measured transceiver supply voltage
  • Symbol: DDVoltage
  • Min: 2.8
  • Max: 4.0
  • Unit: V
Measured TX bias current
  • Symbol: DDBias
  • Min: 0
  • Max: 20
  • Unit: mA
Measured TX output power
  • Symbol: DDTx-Power
  • Min: -10
  • Max: -3
  • Unit: dBm
Measured RX received average optical power
  • Symbol: DDRx-Power
  • Min: -22
  • Max: 0
  • Unit: dBm

ROHS Compliant

Alternate MPNs:Ā 4Y8DN 407-BBVJ HN12K 0Y3KJN Y3KJNĀ FTLX8571D3BCVIT1 ā€‹ā€‹ā€‹ā€‹ā€‹ā€‹

Weight:Ā 0.5Ā lb
