Vaddio ConferenceSHOT AV HD Video Conferencing System – Includes PTZ Camera, AV Speaker, and Two TableMIC Microphones


Quick tech specs

  • 4K PTZ camera
  • Conference microphone
  • Thin profile wall mount
  • Zoom video conferencing camera
  • TAA Compliant

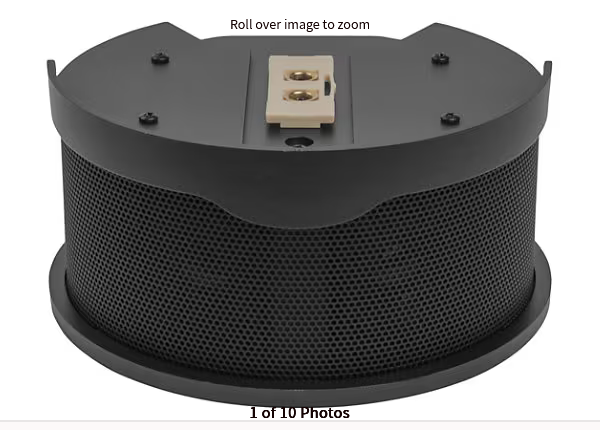

  • AV speaker
  • PoE+ Midspan Power Injector with AC cord set
  • Ideal for conference rooms
  • Teams video conferencing camera

AED20,599.00

Ideal for video conferencing rooms, ConferenceSHOT AV integrates a PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect up to two microphones and an external speaker directly to the camera. Easy Plug-and-Play functionality with all major UCC soft clients such as Skype for Business, WebEx and Google. This conference room AV system is ideal for small to medium-sized videoconferencing rooms, choose color, power cord, speaker and microphone options to build the perfect ConferenceSHOT AV bundle for your space.

ConferenceSHOT AV integrates a 10x zoom HD PTZ camera and audio-conferencing mixer into a single USB 3.0 device, so you can easily connect microphones and an external speaker to the camera. The ConferenceSHOT AV is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Microsoft Teams, WebEx and Google Meet.

ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC – just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as a standalone solution.

ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a browser-based user interface enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.

ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It’s a significant step up in performance from the current webcam-based technology offerings.

Category Details
Overview
Brand Vaddio
Product Line Vaddio
Model ConferenceSHOT AV HD Conference Room System – Includes PTZ Camera and 2 TableMIC Conference Microphone – Black
Manufacturer VADDIO
Network & Communication
Host Interface USB 3.0
Network Interface Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols Telnet
Connectivity
Connectivity Technology Wired
Ports 2 x microphone – RJ-45, Audio line out – terminal block, LAN/power – RJ-45, USB 3.0 – 9 pin USB Type B
Display & Graphics
Image Sensor Size 1/2.8″
Image Sensor Type Exmor CMOS
Tilt -30 to +90
Touchscreen No
Video
Audio Support Yes
Audio Support Features Two-way audio capability
Camera Mechanical Design Pan / tilt / zoom
Digital Video Capture Resolution 1920 x 1080
Max Frame Rate 60 frames per second
Max Panning Speed (degree/sec) 90
Max Tilting Speed (degree/sec) 90
Max Video Resolution 1920 x 1080
Panning Range (degree) -162 to +162
Video Modes 1080/15p, 1080/25p, 1080/30p, 180p
Camera
Camera Mount Type Wall mount
Camera Type Conference camera
Power
Low Voltage Power PoE Plus
Power Consumption Operational 25 watt
Power Device Type Power injector
Technical Information
Angular Field of View (H, Max, Degree) 74
Angular Field of View (H, Min, Degree) 7.6
Power Device Form Factor External
Focal Length Control Motorized zoom
Focus Modes Automatic, Manual
Lens Aperture F/1.8-3.4
Max Focal Length 38 mm
Max Operating Temperature 104°F
Min Focal Length 3.8 mm
Min Focus Distance 0.4 inch
Min Operating Temperature 32°F
Minimum Illumination 0.4 lux F1.6
Operating Humidity 20 – 80% (non-condensing)
Optical Zoom 10
Sensor Size (metric) 9.1 mm (1/2.8″)
Total Pixels 2,380,000 pixels
Video Formats H.264
Video Input Color
Product Information

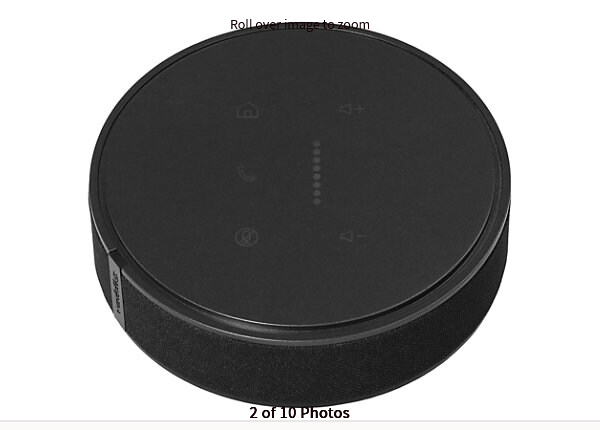

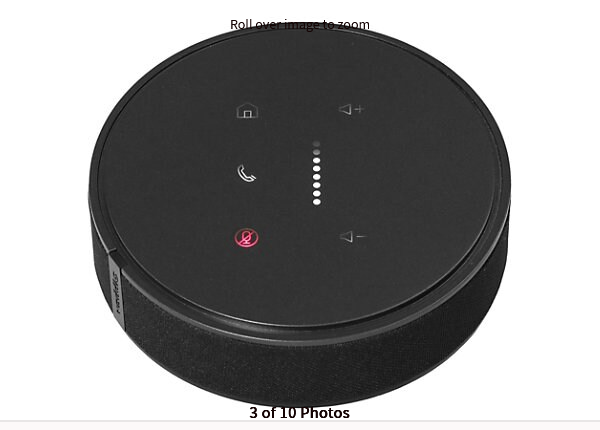

Bundled With 2 Vaddio TableMIC microphones and ConferenceSHOT AV Speaker
Country United States
Features 16 preset positions, Auto gain control, Auto white balance, Backlight Compensation (BLC), Manual gain control, Manual white balance, Noise Reduction, Webcam Support (UVC)
Kit Bundle
Packaged Quantity 1
Included Items
Cables 1 x audio/power cable – 6.5 in, 1 x network cable – 10 ft, 1 x USB 3.0 to USB 3.0 type B cable – 6 ft, 2 x network cables – 3 ft
Included Accessories 4-position phoenix-style connector, Remote control, Screws, Speaker mounting rail with gasket, Wall mount kit
Dimensions & Weight
Height 6.3 inch
Weight 3 lbs
Width 6.1 inch
Depth 5.5 inch
Physical Characteristics
Color Black
Color Category Black
Certifications & Listings
Compliant Standards FCC, UL
ENERGY STAR Certified No
EPEAT Compliant No
TAA Compliant Yes
TCO Certified No
