Cisco 2900 Series 3G Antennae 3G-ANTM1919D

he Cisco 3G-ANTM1919D antenna operates in the 806- to 960-MHz and 1710- to 2170-MHz frequency bands, and is designed for use with Cisco 3G wireless high speed WAN interface cards (HWICs). The Cisco 3G-ANTM1919D antenna is compatible with the Cisco 3G wireless WAN HWICs using a threaded Neill-Concelman (TNC) male connector with articulating joint.

This antenna has the following features:

•Multiband performance

•Articulating joint provides 0 to 90 degrees pivot and 180-degree swivel movement, allowing vertical and horizontal orientation of the antenna

•Ground plane independent

Table 1 lists the electrical, mechanical, and frequency specifications for this antenna.

Figure 1 shows the Cisco 3G-ANTM1919D antenna.

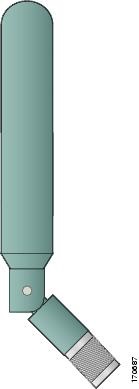

Figure 1 Cisco 3G-ANTM1919D Multiband Dipole Antenna

Figure 2 shows the elevation cut (Advanced Modile Phone System [AMPS] for the Cisco 3G-ANTM1919D antenna.

Figure 2 Elevation Cut (AMPS) for Cisco 3G-ANTM1919D Antenna

Figure 3 shows the azimuth c (AMPS) for the Cisco 3G-ANTM1919D antenna.

Figure 3 Azimuth Cut (AMPS) for Cisco 3G-ANTM1919D

Figure 4 shows the elevation cut (Personal Communications Service [PCS]) for the Cisco 3G-ANTM1919D antenna.

Figure 4 Elevation Cut (PCS) for Cisco 3G-ANTM1919D Antenna

Figure 5 shows the azimuth cut for the Cisco 3G-ANTM1919D antenna.

Figure 5 Azimuth Cut (PCS) for Cisco 3G-ANTM1919Antenna

System Requirements

The Cisco 3G-ANTM1919D antenna is a remote antenna solution for the Cisco 3G wireless WAN HWICs. The antenna should be connected using the 20-ft or 50-ft cables recommended for this product.
