04 3550600 052 7036860

3PH, 208V, 30A (Derated to 24A), 39 Outlets: 18 x Locking C13,18 x Locking CX, 3 x

Add to Wishlist
  • High Capacity – Offers 39 outlets, ideal for environments with multiple devices to power
  • Flexibility – Includes both locking C13 and CX outlets for various equipment types
  • Monitoring Capabilities – Provides detailed energy metering for better power management
  • Efficient Power Distribution – Supports three-phase power distribution for reliable operation

AED19,299.00

Add to Wishlist
General Information

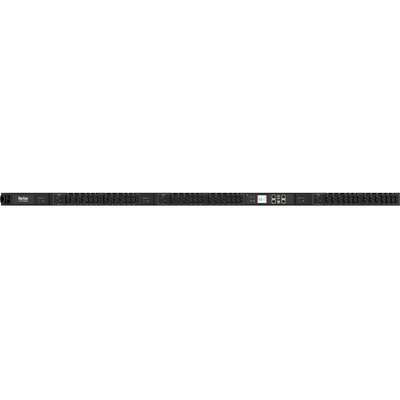

Product Name 3PH, 208V, 30A (Derated to 24A), 39 Outlets: 18 x Locking C13,18 x Locking CX, 3 x
Product Series PX4
Product Model PX4-541A-E7
Product Type PDU
Technical Information
PDU Type Switched with Metered-by-Outlet
Phase Three Phase
Plug / Connector Type NEMA L21-30P (4P5W)
Receptacle Type IEC 60320 C13CX

NEMA 5-20R
Receptacle Detail 18 x IEC 60320 C1318 x CX

3 x NEMA 5-20R
Protection Type Branch CircuitCircuit Breaker

Overload Protection
Locking Receptacles P-LockSecureLock
Environmental Sensors TemperatureHumidity

Contact Closure

Differential Pressure

Air Flow

Water
Features Multi-color LCD
Interfaces/Ports
Network (RJ-45) Yes
Environmental Conditions
Maximum Operating Temperature 140°F (60°C)
Minimum Storage Temperature -22°F (-30°C)
Maximum Storage Temperature 176°F (80°C)
Minimum Operating Humidity 5%
Maximum Operating Humidity 95%
Management
Remote Outlet Switching Yes
Power Description
Input Voltage 208 V AC
Input Voltage Range 190 V AC – 208 V AC
Output Voltage 208 V AC
Output Voltage Range 208 V AC – 208 V AC
Power Rating (VA) 8600 VA
Input Current 30 A
Input Frequency 60 Hz
Physical Characteristics
Product Color Black Powder Coat
Mount Type Button MountRack-mountable
Form Factor Hot-swappable
Rack Height 0U
Cord Length 9.84 ft
Height 70.1″
Width 2.2″
Depth 2.6″
