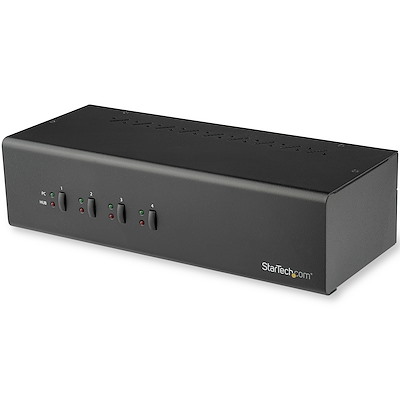

4 Port Dual Monitor Dual Link DVI KVM Switch 1440p – Dual Screen/View/Display Compact USB KVM Switch w/Integrated USB 3.0 Hub & Audio – Dell HP Apple Lenovo TAA Compliant

Add to Wishlist

DVI KVM Switch | TAA Compliant | 2560 x 1600 Digital Resolution | Stereo Audio



  • IMPROVE EFFICIENCY: Dual Monitor Dual Link DVI KVM Switch with hotkey and manual switching, to access 4 workstations or servers with USB and DVI video from a single keyboard, monitor, and mouse
  • WORK SMARTER: Combines dual DVI displays and a high-speed 2-Port USB 3.0 hub to share USB devices between connected computers seamlessly; OS independent and works with video cards from NVIDIA and AMD
  • TECH SPECS: 4 Port KVM | Dual Screen | DVI Dual Link | 2048×1536 Analog | 2560×1600 or 1440p Digital | 2-Port USB 3.0 Hub | Hotkey, Push Button | OS Independent | Audio | Dual DVI + USB Console | TAA
  • USER-FRIENDLY: Dual view KVM switch with compact & durable housing features easily accessible large push buttons on the front panel in addition to hotkey support; also provides audio and mic switching

AED2,499.00

Add to Wishlist
This TAA compliant 4-port dual-monitor Dual-Link DVI USB KVM switch controls up to four PCs, each with two dual-link DVI video outputs. The switch also shares one microphone, one set of speakers, one keyboard and one mouse, across the four connected computers and features an additional built-in 2 port USB hub.

Increase ProductivityĀ

The KVM switch supports four separate multimedia computer systems and the use of a dual-link DVI dual-monitor workstation,Ā increasing productivity byĀ enabling you to access more information at the same time.Ā

Integrated USB 3.0 HubĀ

The 2-port USB 3.0 hubĀ built into theĀ KVM switchĀ lets you shareĀ two additional peripheralsĀ (in addition to keyboard and mouse) among attached computers as if they were directly connected. With support for USB 3.0, you can achieve data transfer rates up to 5Gbps ensuring flawless performance from your USB peripherals – great for quickly transferring data to and from external USB 3.0 drives.

Full Multimedia SupportĀ Ā

With supportĀ for separate stereo audio and microphones, theĀ KVM switch boxĀ connectsĀ everything you need to your systems, saving youĀ money and desk space.Ā

Easy to Operate

The front-panel push buttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.Ā

offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently, without the expense and clutter of extra keyboards, mice, and monitors. This 4-port dual-monitor dual-link DVI USB KVM switch is backed by a 2-year warranty and free lifetime technical support.Ā Ā Ā

Applications

  • High-res medical imaging
  • High-res digital signage server control
  • Multimedia design and production
Category: Tag:

āœ… Specifications

šŸ”Œ Connector(s)

Type Description
Console Interface(s) – 2 Ɨ DVI-I (29 pin)
– 2 Ɨ USB Type-A (USB 1.1 HID)
– 2 Ɨ USB Type-A (9 pin, 5Gbps)
– 2 Ɨ 3.5 mm Audio
Host Connectors – 4 Ɨ USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)
– 8 Ɨ DVI-I (29 pin)
– 8 Ɨ 3.5 mm Audio

šŸŒ”ļø Environmental

Feature Value
Operating Temperature 0Ā°C ~ 40Ā°C (32Ā°F ~ 104Ā°F)
Storage Temperature -20Ā°C ~ 60Ā°C (-4Ā°F ~ 140Ā°F)
Humidity 90% RH (Non-condensing)

āš™ļø Hardware

Feature Value
Audio Yes
KVM Ports 4
PC Interface USB 3.2 Gen 1 (5Gbps)
PC Video Type DVI
Number of Monitors 2
Rack-Mountable No
Cables Included No
Industry Standards USB 3.0
Daisy-Chain No

šŸ’” Indicators

LED Indicators
– 4 Ɨ Red (Active)
– 4 Ɨ Green (Sync)

šŸ“¦ Packaging Information

Feature Value
Package Quantity 1
Shipping Weight 3.5 lb [1.6 kg]
Package Length 13.6 in [34.6 cm]
Package Width 8.8 in [22.4 cm]
Package Height 6.7 in [17.0 cm]

šŸš€ Performance

Feature Value
On-Screen Display No
DVI Support Yes – Dual Link
IP Control No
Hot-Key Selection Yes
Max Analog Resolution 2048 Ɨ 1536
Max Digital Resolution 2560 Ɨ 1600
Min Supported Resolution 640 Ɨ 480
Wide Screen Supported Yes
Auto Scan 3, 8, 15 & 30 seconds
Port Selection Push Button and Hotkeys
Max Number of Users 1

šŸ§± Physical Characteristics

Feature Value
Color Black
Material Steel
Product Length 10.0 in [25.3 cm]
Product Width 3.9 in [10.0 cm]
Product Height 2.6 in [6.6 cm]
Product Weight 2.2 lb [1.0 kg]

šŸ”‹ Power

Feature Value
Power Source AC Adapter Included
Input Voltage 100 – 240 AC
Input Current 0.8 A
Output Voltage 9V DC
Output Current 2 A
Center Tip Polarity Positive
Plug Type M
Power Consumption 18 W

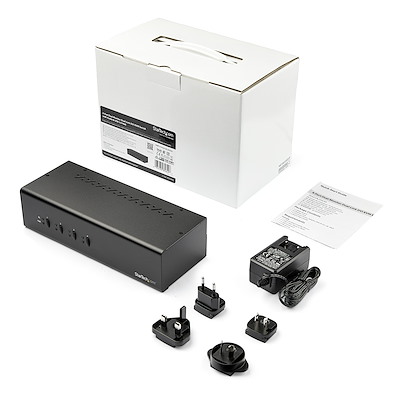

šŸ“¦ What’s in the Box

Included Items
1 Ɨ KVM Switch
1 Ɨ Universal Power Adapter (NA/JP, EU, UK, ANZ)
1 Ɨ Quick-Start Guide
