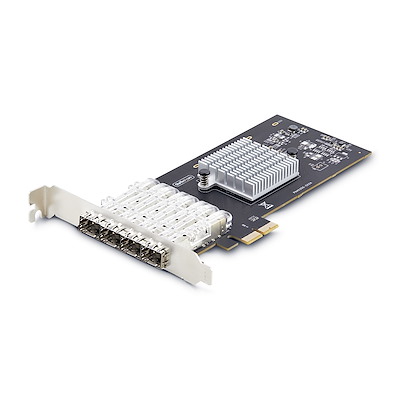

4-Port GbE SFP Network Card, PCIe 2.0 x2 (x4, x8, x16 Compatible), Intel I350-AM4 4x 1GbE Controller, 1000BASE Copper/Fiber Optic, Desktop/Server Quad-Port Gigabit Ethernet NIC – Windows & Linux

Add to Wishlist

Add four fiber/copper GbE SFP transceivers or Direct Attach Cables to a workstation or server



  • INTEL I350 SERIES NETWORK CARD: High-performance PCIe 4-port network card featuring Intel I350-AM4 chipset adds four Gigabit open SFP slots to a desktop or server; Supports IPv4, IPv6, TCP/UDP offloading, link aggregation
  • UNLOCKED 1GB SFP SLOTS: Works with any Singlemode/Multimode MSA-compliant or branded SFP/direct attach copper cable (DACC) module; 1Gbps (full-duplex) bandwidth per port; Fiber enables longer cable runs than copper cabling while being immune to EMI
  • COMPATIBILITY: Works with Windows Server 2012 & up, Windows 10 & up, Linux, VMware ESXi 7.x, and Microsoft Hyper-V; PCI Express Network Adapter Card is compatible with PCIe version 2.1/2.0 and works in PCI Express x2, x4, x8, x16 expansion slots
  • THOUGHTFUL DESIGN: LED indicators for port status/activity monitoring, as well as to assist with troubleshooting; Gigabit Ethernet NIC features a built-in heatsink to keep controller chips running cool and ensure reliable, sustained performance
  • IT MANAGEABILITY: PXE boot enabled for centralized OS deployment and updates; 9K jumbo frame support for reduced packet overhead; VLAN tagging support for efficient network management; Supports Intel Virtualization Technology (VT-c, VMDq, SR-IOV)

AED1,699.00

Add to Wishlist
Add up to four 1GbE SFP modules to a PCI Express (PCIe) 2.0 x2 (or higher) slot in an IT Administrator workstation or server backplane, using this 4-Port SFP Network Controller.

High Performance Intel Chipset

The network controller features an Intel I350 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and IntelĀ® VT-c technologies allows for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operating system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation.

Hardware and Operating System Compatibility

The network interface controller connects to an available x2 PCI Express 2.0 (or higher) expansion slot. It is compatible with Windows Server 2012 and newer, Windows 10 and newer, Linux, VMware ESXi 7.x, and Microsoft Hyper-V. This NIC is compatible with both MSA-compliant and branded 1GB SFP modules, as well as direct-attach copper cables (DACC).

Flexible Network Connections

The card features four SFP slots for interchangeable SFP modules. Select fiber transceiver modules that best suit the network needs of the application, based on the distance and connector type. StarTech.com offers a wide variety of SFP transceiver modules to meet many GbE network applications.

Applications

  • Create a high-speed and flexible network infrastructure in data centers or enterprise networks
SKU: P041GI-NETWORK-CARD Category: Tag:

āœ… Product Overview ā€“ Quad-Port PCIe SFP Network Card (Intel I350-AM4, Fiber Ethernet)

šŸ”§ Compatibility

Supported Platforms & Operating Systems
Windows 10, Windows 11
Windows Server 2012 / 2012 R2 / 2016 / 2019 / 2022
Linux 2.4.x and up ā€“ LTS Versions only
VMware ESXi 7.x
Microsoft Hyper-V

šŸ› ļø Specifications

Connector(s)

Connector Type Details
Host Connector 1 Ɨ PCI Express x2
External Ports 4 Ɨ SFP Slots

Environmental Tolerance

Specification Range
Operating Temp. 0Ā°C to 50Ā°C (32Ā°F to 122Ā°F)
Storage Temp. -10Ā°C to 70Ā°C (14Ā°F to 158Ā°F)
Humidity 5% to 90% RH (non-condensing)

Hardware

Property Detail
Ports 4
Interface Fiber Ethernet
Bus Type PCI Express
Card Type Standard Profile

Chipset

Chipset ID
Intel I350-AM4

šŸŒ Industry Standards

Supported Standards
IEEE 802.3ab (1000BASE-T)
IEEE 802.3ap (1000BASE-KX)
IEEE 802.3z (1000BASE-SX / 1000BASE-LX)
IEEE 802.3az (Energy-Efficient Ethernet)
IEEE 802.1AX (Link Aggregation)
IEEE 802.1Q (VLAN Tagging)
PCI Express Version 2.0

šŸ’” LED Indicators

LED Type Description
Link Speed 4 Ɨ Solid Green ā€“ 1Gbps Network Connection
Link Status 4 Ɨ Solid Green ā€“ Active Link
Flashing ā€“ Activity

šŸ“¦ Packaging Information

Specification Value
Package Quantity 1
Package Height 1.5 in [3.8 cm]
Package Length 8.6 in [21.8 cm]
Package Width 6.1 in [15.4 cm]
Shipping Weight 6.5 oz [184 g]

āš™ļø Performance

Feature Detail
Max Data Transfer Rate 1 Gbps
Compatible Networks 1000 Mbps (1 Gbps)
DDM Yes
Auto-MDIX Yes
PXE Boot Support Yes
Full Duplex Yes
Jumbo Frame Support Up to 9K
Promiscuous Mode Yes

šŸ§  Advanced Features

Feature
VMDq Support
Intel VT-c Support
SR-IOV Support

šŸ§± Physical Characteristics

Property Value
Color Black
Product Height 0.4 in [1.0 cm]
Product Length 6.6 in [16.7 cm]
Product Width 3.3 in [8.3 cm]
Weight 3.9 oz [110 g]

šŸ”Œ Power

Property Detail
Power Source Bus Powered
Power Consumption 3.5 W

šŸ’» Software Compatibility

Supported Systems
Windows 10, 11
Windows Server 2012 / 2012 R2 / 2016 / 2019 / 2022
Linux 2.4.x and up ā€“ LTS Versions only
VMware ESXi 7.x
Microsoft Hyper-V

āš ļø Special Notes / Requirements

  • āŒ Not compatible with 10/100Mbps SFP modules

  • āš™ļø Fiber speeds and distances depend on the SFP module used (sold separately)

šŸ“¦ What’s in the Box

Included Items
1 Ɨ Open SFP Network Card
1 Ɨ Quick-Start Guide
