4-Port Gigabit Midspan – PoE+ Injector – 802.3at/af – TAA

Add to Wishlist

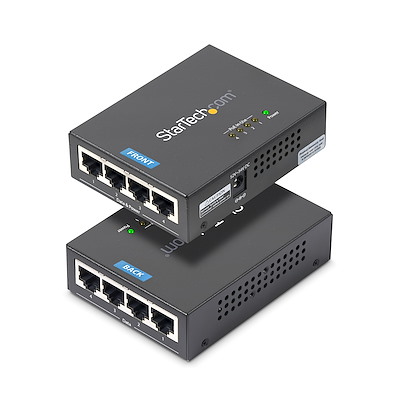

Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub



  • Easily connect, power, and operate up to four Gigabit PoE-powered devices (PD)
  • Delivers full power to each port — up to 30.8 watts (802.3at) or 15.4 watts (802.3af) to each connected device
  • Flexible setup, with a desktop-sized or wall-mountable metal housing
  • Plug-and-play setup and operation
  • Automatically detects the powered device to provide the appropriate level of power output
  • Circuit protection prevents power interference between each port
  • Support for 10/100/1000 Mbps networks and devices, as well as Auto-Negotiation and auto-MDIX

AED999.00

Add to Wishlist
This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

It supplies up to 30 Watts of output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using a standard Ethernet cable.

Power over Ethernet injector connected to a network switch and four PoE-powered devices (PD)

More power, with less cost and hassle

This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.

Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.

Easy to set up in mixed environments

This injector is the perfect solution for a variety of environments. It features a wall-mountable, rugged metal casing, but is palm-sized, making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy a fast and hassle-free setup without disrupting your workflow.

Convenient, protected connections

Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs and delivers the appropriate level of power without damaging your devices.

With integrated circuit protection between each port, your devices are also protected from power interference.

The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Ideal for high-power PoE+ devices requiring Gigabit speeds, such as PTZ (Pan, Tilt, Zoom) cameras and Wi-Fi® access points (WAP)
  • Enable remote installation of touchscreens, information kiosks, and phones in locations where a power connection is not available
  • Perfect for SOHO, SMB, system integrators, and IT administrators
Category: Tag:

Specifications Table: 4-Port Gigabit PoE+ Injector

Category Details
Connector(s)
Connector Type(s) 8 × RJ-45
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 5% ~ 95% RH (Non-Condensing)
Hardware
Ports 4
Industry Standards – IEEE 802.3af (PoE)
– IEEE 802.3at (PoE+)
– IEEE 802.3 (10BASE-T)
– IEEE 802.3u (100BASE-TX)
– IEEE 802.3ab (1000BASE-T)
Indicators
LED Indicators – 1 × Power
– 4 × PoE In-Use
Packaging Information
Package Quantity 1
Package Height 3.7 in [9.3 cm]
Package Length 12.1 in [30.8 cm]
Package Width 7.0 in [17.9 cm]
Shipping Weight 3.6 lb [1.6 kg]
Performance
Maximum Data Transfer Rate 2 Gbps (Full-Duplex)
Maximum Cable Length 328.0 ft [100 m]
MTBF 50,000 Hours
Power Output (PoE) 54V DC at 30.8W (PoE+)
Physical Characteristics
Weight of Product 7.1 oz [202.0 g]
Color Black
Material Steel
Product Length 3.7 in [9.4 cm]
Product Width 2.8 in [7.0 cm]
Product Height 1.0 in [2.6 cm]
Power
Power Source AC Adapter Included
Input Voltage 100 – 240V AC
Input Current 2 A
Output Voltage 54V DC
Output Current 2.4 A
Power Consumption 129.6 W
Center Tip Polarity Positive
Plug Type M
Special Notes / Requirements
System and Cable Requirements Only compatible with IEEE 802.3af or 802.3at compliant devices; otherwise, power won’t be injected.
Patents and Licenses – U.S. Patent Nos.: 5,406,260 (expired), 6,650,622, 7,457,250, 8,155,012, 8,902,760, 8,942,107, 9,019,838, 9,049,019
– Patent Applications: 14/695,456, 14/726,940
What’s in the Box
Included Items – 1 × 4-Port Gigabit PoE+ Injector
– 1 × Universal Power Adapter
– 4 × Power Cords (NA/JP, EU, UK, ANZ)
– 1 × Instruction Manual
