4 Port Gigabit Power over Ethernet PCIe Network Card – PSE / PoE PCI Express NIC – TAA

Add to Wishlist

Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer



  • Four 10/100/1000 Mbps compatible PoE RJ45 ports
  • Fully compliant with IEEE 802.3at (Type 1 & 2) Power over Ethernet standards
  • Power Sourcing Equipment (PSE) supports up to 48V, 25.5 Watts max. output per port
  • Built-in SATA and LP4 power connector
  • Up to 9K Jumbo Frame support
  • Wake-on-LAN (Remote Wake-up) support
  • Supports Pair Swap, Polarity, and Skew Correction

AED1,999.00

Add to Wishlist

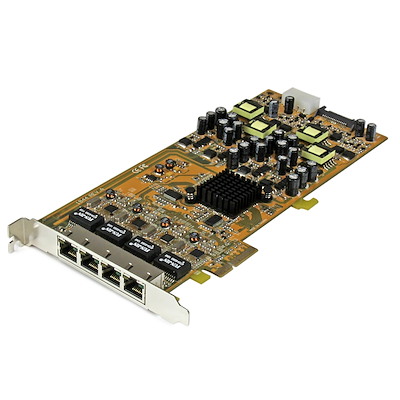

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.

The PCI Express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones, or wireless access points.

Suitable for any standard profile PCIe-enabled client, server, or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging, and Wake on LAN (WoL).

Applications

  • Create a host computer for networked security cameras situated in remote areas, where a standard power connection is not possible
  • Install PoE-powered Wireless Access Points (WAPs) or repeaters in industrial, warehousing, or business environments
  • Enable remote installation of touchscreens or information kiosks
SKU: ST4000PEXPSE Category: Tag:

āœ… 4-Port PCIe Gigabit PoE Network Card ā€“ Realtek RTL8111H

šŸ–„ļø Compatibility

Platform Versions Supported
WindowsĀ® 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows ServerĀ® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux Kernel 2.4.x and up ā€“ LTS Versions only

šŸ”Œ Connectors

Type Quantity
PCI Express x4 1
RJ-45 (PoE/Gigabit) 4
SATA Power (15-pin) 1
LP4 Molex Power (4-pin) 1

šŸŒ”ļø Environmental Specs

Parameter Range
Operating Temperature 0Ā°C to 55Ā°C (32Ā°F to 131Ā°F)
Storage Temperature -40Ā°C to 75Ā°C (-40Ā°F to 158Ā°F)
Humidity 10% ~ 90% RH (Non-condensing)

šŸ§± Hardware Specs

Feature Description
Ports 4 x RJ-45 (Gigabit + PoE)
Interface PCI Express (x4)
Card Profile Standard Profile (Low-profile bracket incl.)
Chipset Realtek RTL8111H

šŸ“¶ Supported Standards & Protocols

  • IEEE 802.3 (10BASE-T)

  • IEEE 802.3u (100BASE-TX)

  • IEEE 802.3ab (1000BASE-T)

  • IEEE 802.3af / 802.3at (PoE / PoE+)

  • IEEE 802.3az Draft 2.2 (Energy Efficient Ethernet)

  • IEEE 802.3x (Full Duplex Flow Control)

  • IEEE 802.1q (VLAN Tagging)

  • IEEE 802.1p (Priority Encoding)

šŸ’” LED Indicators

Indicator Description
4 Green LEDs Link/Activity
4 Yellow LEDs PoE Active

šŸš€ Performance

Feature Value
Max Data Rate 2000 Mbps (Full Duplex)
Compatible Networks 10/100/1000 Mbps
Jumbo Frame Support 9K
Buffer Size 48 KB
Auto MDIX Yes
Wake on LAN (WoL) Yes
Promiscuous Mode Yes

āš™ļø Power

| Output Voltage | 48V DC (PoE) |
| Power Connectors | LP4 / SATA |

šŸ“ Physical Dimensions

Dimension / Property Value
Length 9.6 in [24.3 cm]
Width 0.7 in [1.8 cm]
Height 4.7 in [12.0 cm]
Weight 3.6 oz [102.0 g]
Color Yellow
Material Steel

šŸ“¦ Packaging Info

Property Value
Package Length 11.7 in [29.6 cm]
Package Width 7.5 in [19.1 cm]
Package Height 2.8 in [7.1 cm]
Shipping Weight 15 oz [424.0 g]
Package Quantity 1

šŸ“ System Requirements

  • Full-height PCIe x4 (or higher) slot

  • LP4 or SATA power connector

šŸ“‚ Box Contents

  • 1 Ɨ PCI Express Network Card

  • 1 Ɨ Instruction Manual

šŸ“„ Licensed Patents

Includes technologies under multiple U.S. patents such as:

  • US Patent Nos. 6,650,622 / 7,457,250 / 8,902,760 / 9,019,838 etc.
