KVM Switches

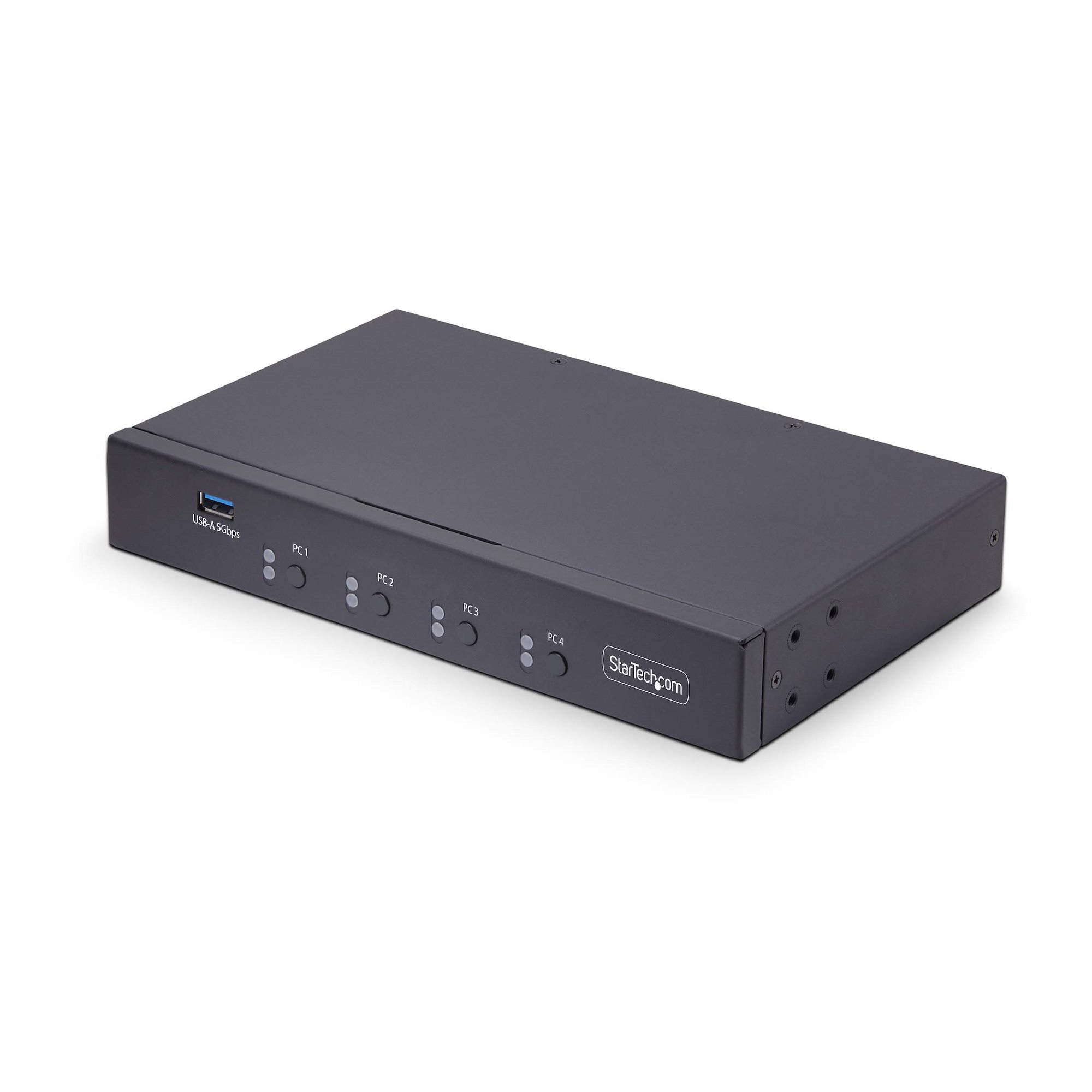

4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse, 3.5mm/USB Audio, Peripheral Sharing for 4 Computers, TAA Compliant
- SEAMLESS MOUSE SWITCHING: Instantly and automatically switch computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency; Hotkey and push-button switching options are also available
- SCREEN LAYOUT PRESETS: Monitor layouts controlled via hotkeys are designed to accommodate a variety of physical monitor setups, allowing for seamless mouse movement across host monitors; 4 different preset display configurations available
- USB CONNECTIVITY: Supports up to three USB Human Interface Device (HID) peripherals and two USB 3.2 Gen 1 (5Gbps) devices; Ideal for environments such as control rooms, security facilities, server rooms, and financial operations
- THOUGHTFUL DESIGN: Independent audio switching allows users to listen to audio from one computer while controlling another; USB audio and 3.5mm pass-through available; LEDs provide visual port selection status; Audible buzzer for hotkey confirmation
- UNIVERSAL COMPATIBILITY: Mouse Roaming is supported by most major desktop operating systems, including Windows, macOS, and Linux; Hotkey and push-button switching are OS independent; Works with all hardware platform,s including Intel and AMD
AED1,899.00
Mouse Switching
Switch between computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Switching is supported by most major desktop operating systems, including Windows, macOS, and Linux.
Preset Monitor Layouts
To accommodate various physical monitor setups, there are four preset display configurations available. This allows for smooth mouse movement across host monitors.
Thoughtful Design
Hotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.
Note: On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display
Applications
- Manage multiple computers simultaneously, such as in data centers, server rooms, or network operations centers
- Navigate between platforms and workstations, increasing productivity and responsiveness
ā Compatibility
| Feature | Details |
|---|---|
| OS Independent | Yes |
| Drivers/Software Needed | No |
š Connectors
Console Interface(s)
| Quantity | Type |
|---|---|
| 2 | USB 3.2 Type-A (9 pin, Gen 1, 5Gbps) |
| 3 | USB 2.0 Type-A |
| 3 | 3.5mm Stereo Female (3-position) |
Host Connectors
| Quantity | Type |
|---|---|
| 4 | USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) |
| 4 | 3.5mm Stereo Female (3-position) |
š”ļø Environmental
| Feature | Value |
|---|---|
| Operating Temp | 0Ā°C to 40Ā°C (32Ā°F to 104Ā°F) |
| Storage Temp | -10Ā°C to 60Ā°C (14Ā°F to 140Ā°F) |
| Humidity | 0% ~ 80% RH |
āļø Hardware
| Feature | Details |
|---|---|
| Audio | Yes |
| KVM Ports | 4 |
| PC Interface | USB 3.2 Gen 1 (5Gbps) |
| Monitors Supported | 0 |
| Cables Included | No |
| Daisy-Chain Support | No |
| Chipset ID | GL3523 |
š” Indicators
| Indicator Type | Description |
|---|---|
| LED Indicators | 4 Solid Blue ā Connected PC is powered on |
| 4 Solid Red ā Indicates selected PC |
š¦ Packaging Information
| Feature | Value |
|---|---|
| Package Height | 2.5 in [6.3 cm] |
| Package Length | 9.6 in [24.5 cm] |
| Package Width | 11.6 in [29.5 cm] |
| Shipping Weight | 2.8 lb [1.2 kg] |
āļø Performance
| Feature | Details |
|---|---|
| On-Screen Display | No |
| IP Control | No |
| Hot-Key Selection | Yes |
| Max Data Transfer Rate | 5Gbps |
| Audio Support | Analog Stereo ā 2 Channel Audio |
| Port Selection | Push Button, Hotkeys, Mouse Switch |
| MTBF | 156,000 Hours |
š§± Physical Characteristics
| Feature | Value |
|---|---|
| Color | Black |
| Height | 1.3 in [3.4 cm] |
| Length | 8.7 in [22.0 cm] |
| Width | 5.1 in [13.0 cm] |
| Weight | 1.8 lb [0.8 kg] |
| Material | Steel |
š Power
| Feature | Value |
|---|---|
| Power Source | AC Adapter Included |
| Input Voltage | 100 – 240 AC |
| Input Current | 0.6 A |
| Output Voltage | 12V DC |
| Output Current | 1.5 A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 18W |
š» Software
| Feature | Details |
|---|---|
| OS Compatibility | No Drivers/Software Needed |
ā ļø Special Notes / Requirements
| Note |
|---|
| – Mouse/keyboard functions limited to primary display if multiple monitors connected with Mouse Switching enabled |
| – 6-Key Rollover (6KRO) and N-Key Rollover (NKRO) are not supported |
š¦ What’s in the Box
| Item | Quantity |
|---|---|
| KM Switch | 1 |
| Universal Power Adapter | 1 |
| Rubber Feet Set | 1 |
| Quick-Start Guide | 1 |
