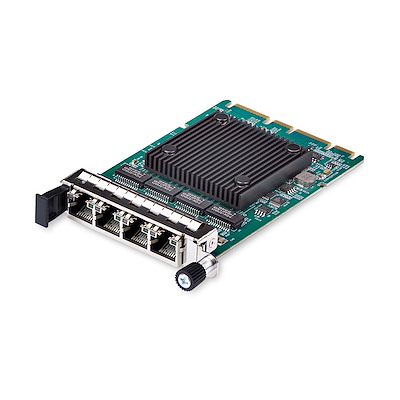

4-Port RJ45 Gigabit OCP 3.0 Server Network Card w/Intel® I350-AM4, SFF 4C+ Compatible, Multi-Speed Ethernet, PCIe 3.0, LAN Transformer, NIC w/PXE/9K

Add to Wishlist

Enhance a server’s connectivity with this OCP 3.0 quad-port network adapter card featuring Intel® I350 chip



  • OCP 3.0 NETWORK CARD: 1Gbps Network Interface Card w/4x RJ45 Ethernet Ports; Intel® I350-AM4 Ethernet Controller; Leverage existing Cat5e/Cat6 cabling (or better) up to 100m; Adheres to PCI Express 3.0; EEE compatible; Ideal for various scenarios, from virtualization to cloud computing
  • OCP INTERFACE: Network adapter card uses the OCP (Open Compute Project) 3.0 port (168-Pin 4C+) developed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades
  • COMPATIBILITY: LAN adapter is SFF 4C+ compatible; Variable speed options (10/100/1000 Mbps) with auto-negotiation; Removable pull-tab bracket; NIC is compatible with Windows Server, VMware, and Linux; Supports Single Root I/O Virtualization (SR-IOV)
  • IT MANAGEABILITY: Supports Intel® vPro® for remote management and troubleshooting; PXE boot enabled for faster deployment/updates; 9K jumbo frames for reduced packet overhead; Remotely boot a system using WoL; VLAN support for improved traffic management
  • BUILD QUALITY: Gigabit PCIe card features a built-in heatsink to keep the network chip running cool, LED indicators for link status/speed, LAN transformers to maintain signal quality, and reduced EMI for reliable communication up to 100m even with Cat5e

AED2,099.00

Add to Wishlist
This 4-port RJ45 1Gbps OCP 3.0 Network Interface Card (NIC) features an Intel® i350-AM4 Ethernet Controller, enhancing performance and data integrity. The Ethernet card adheres to OCP 3.0 standards and ensures broad compatibility, making it an ideal solution for reliable network connectivity and robust data transfer capabilities.

Optimized Network Efficiency

Leverage existing Cat5e/Cat6 cabling (or better) up to 100m to maximize existing networks and equipment. The NIC supports variable speed options (10/100/1000 Mbps) with auto-negotiation and 9K jumbo frames to reduce packet overhead, reducing network slowdowns.

Enhanced Hardware

This network adapter leverages the OCP 3.0 standard, a server-specific innovation that optimizes size and port density while enabling simplified installation, maintenance, and upgrades of Field Replaceable Units (FRUs) through hot swapping. It’s designed for the SFF form factor, aligning with W1 4C+ standards. The network adapter is compatible with both TSFF and SFF systems, expanding compatibility with different server types.

Advanced Features

The Ethernet card supports Intel® vPro™ for remote management and troubleshooting, PXE boot for expedited deployment or updates, and VLAN support for improved traffic management and reduced network congestion. The NIC is compatible with Windows Server, VMware, and Linux and supports Single Root I/O Virtualization (SR-IOV) to enhance virtual machines’ performance with minimal overhead. LAN transformers are included to maintain signal quality and reduce EMI, ensuring reliable communication up to 100m even when using Cat5e.

SKU: OR41GI-NETWORK-CARD Category: Tag:

✅ Product Overview – OCP 3.0 Quad-Port RJ-45 Network Card (Intel I350-AM4)

🔧 Compatibility

Supported Operating Systems & Platforms
Windows Server 2012 / 2012 R2 / 2016 / 2019 / 2022
Windows 10, Windows 11
VMware ESXi 7.x
Linux 2.4.x and up – LTS Versions only

🛠️ Specifications



Connector(s)

Connector Type Quantity/Details
External Ports 4 × RJ-45
Host Connector 1 × 4C+ (168-Pin)
Internal Connector 1 × SFF-TA-1002

Environmental Tolerance

Metric Range
Operating Temp. 5°C to 50°C (41°F – 122°F)
Storage Temp. ‐40°C to 70°C (‐40°F – 158°F)
Humidity 5% to 90% RH

Hardware Interface

Property Detail
Interface RJ-45 (Gigabit Ethernet)
Bus Type OCP 3.0
Card Type OCP (Open Compute Project)
Port Style Integrated on the Card

Chipset

Item Value
Chipset ID Intel I350-AM4

🌐 Standards & Protocols

Supported Standards
IEEE 802.3ab (1000BASE-T)
IEEE 802.3u (100BASE-TX), IEEE 802.3i (10BASE-TX)
IEEE 802.3x (Flow Control), IEEE 802.1Q (VLAN)
IEEE 802.1p (QoS), IEEE 802.1AX (Link Aggregation)
IEEE 802.1X (Wake-on-LAN), IEEE P802.3az (EEE)
PCI Express Version 3.0
SFF-TA-1002 Compliant 4C+ Connector

💡 LED Indicators

Position Description
Left LED Link Speed
Green: 1 Gbps
Amber: 10/100 Mbps
Right LED Link Status
Solid Green: Active Link
Flashing Green: Activity

📦 Packaging Info

Specification Value
Package Height 1.4 in [3.6 cm]
Package Width 8.5 in [21.6 cm]
Package Length 5.8 in [14.7 cm]
Shipping Weight 5.9 oz [168 g]

⚙️ Performance

Feature Detail
Wake On LAN Yes
Max Data Rate 1 Gbps
Compatible Networks 1000 Mbps
Full Duplex Yes
Jumbo Frame Support Up to 9K
Promiscuous Mode Yes
PXE Boot Support Yes
Auto-MDIX Yes

🧠 Advanced Features

Feature
SR-IOV Support

🧱 Physical Characteristics

Metric Value
Color Silver & Green
Product Height 0.6 in [1.5 cm]
Product Width 5.2 in [13.2 cm]
Product Length 3.3 in [8.5 cm]
Product Weight 3.5 oz [100 g]

🔌 Power

Property Detail
Power Source Bus Powered
Power Consumption Avg: 4.65W
Max: 5.2W

💻 Software Compatibility

Supported Systems
Windows Server 2012 / 2012 R2 / 2016 / 2019 / 2022
Windows 10, 11
VMware ESXi 7.x
Linux 2.4.x and up – LTS Versions only

📦 What’s in the Box

Contents
1 × Network Card
1 × Quick-Start Guide
