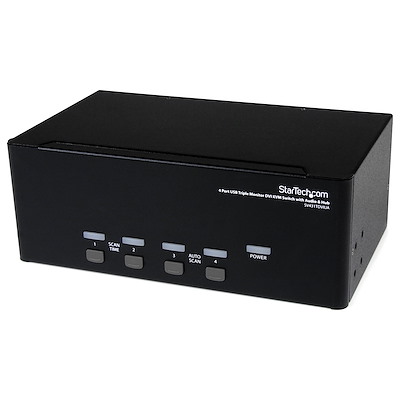

4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub – TAA
Switch between four triple head computers, while sharing three DVI displays, speakers & mic, USB Keyboard/Mouse, and USB 2.0 peripherals
- Switch 3 monitors and peripherals between 4 PCs
- Supports high definition DVI resolutions on 3 monitors, each up to 1920×1200
- Switch Audio devices independently
- Supports front panel push button and hot-key functions for computer selection
- OS independent; No software or drivers required
- All metal chassis for long-term durability
- Hub port supports High speed USB 2.0 devices
- HDCP compliant
AED2,599.00
The Triple DVI KVM switch enables you to switch back and forth between 4 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920×1200. The triple DVI KVM switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
Applications
- Switch three displays, mouse, keyboard, speakers, microphone, and one USB peripheral between four PCs
- Graphic design and multimedia production applications
- Great for CAD/CAM operators using multiple monitor systems
- Financial/banking and trading workstations with multiple monitors
- High resolution medical imaging with multiple displays
ā Product Specifications Table
š Compatibility
| Feature | Detail |
|---|---|
| Compatibility | OS Independent ā No software or drivers required |
š Connectors
| Type | Details |
|---|---|
| Console Interface(s) | – 2 Ć 3.5 mm Mini-Jack (3 Position) – 3 Ć DVI-I (29 pin) – 4 Ć USB 2.0 Type-A (480Mbps) |
| Host Connectors | – 8 Ć 3.5 mm Mini-Jack (3 Position) – 12 Ć DVI-I (29 pin) – 4 Ć USB B (4 pin) |
š”ļø Environmental
| Feature | Detail |
|---|---|
| Operating Temperature | 0Ā°C to 40Ā°C (32Ā°F to 104Ā°F) |
| Storage Temperature | -10Ā°C to 60Ā°C (14Ā°F to 140Ā°F) |
| Humidity | 0% ~ 80% RH |
āļø Hardware
| Feature | Detail |
|---|---|
| Audio | Yes |
| KVM Ports | 4 |
| PC Interface | USB |
| PC Video Type | DVI (Single-Link DVI-D Only) |
| Number of Monitors Supported | 3 |
| Rack-Mountable | Optional |
| Cables Included | No |
| Daisy-Chain | No |
š” Indicators
| LED Indicators |
|---|
| 4 Ć Orange ā PC Online |
| 4 Ć Green ā Active PC |
š¦ Packaging Information
| Feature | Detail |
|---|---|
| Package Height | 4.3 in [11.0 cm] |
| Package Length | 11.8 in [30.0 cm] |
| Package Width | 10.7 in [27.3 cm] |
| Shipping Weight | 4.7 lb [2.1 kg] |
| Package Quantity | 1 |
š Performance
| Feature | Detail |
|---|---|
| On-Screen Display | No |
| DVI Support | Yes (Single-Link DVI-D Only) |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Digital Resolutions | 1920 Ć 1200 |
| Wide Screen Supported | Yes |
| Auto Scan | 3, 8, 15 & 30 seconds |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 156,000 hours |
š§± Physical Characteristics
| Feature | Detail |
|---|---|
| Color | Black |
| Material | Steel |
| Product Width | 8.6 in [21.9 cm] |
| Product Height | 3.2 in [8.1 cm] |
| Product Depth | 5.4 in [137 mm] |
| Weight of Product | 3.3 lb [1.5 kg] |
| Product Length | 0.0 in (Not specified) |
š Power
| Feature | Detail |
|---|---|
| Power Source | AC Adapter Included |
| Input Voltage | 100 – 240 AC |
| Input Current | 0.8 A |
| Output Voltage | 12V DC |
| Output Current | 1.5 A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 18 W |
š Special Notes / Requirements
While the DVI connectors on this KVM are DVI-I, only digital DVI-D (single-link) signals are supported. Use DVI-D cables across all connections for best performance.

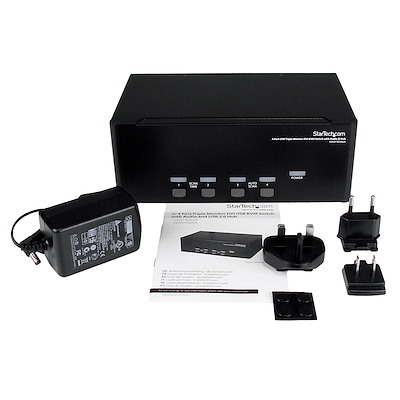

š¦ What’s in the Box
| Included Items |
|---|
| 1 Ć 4 Port Triple Display DVI KVM Switch |
| 4 Ć Rubber Foot Pads |
| 1 Ć Universal Power Adapter (NA/UK/EU) |
| 1 Ć User Manual |
