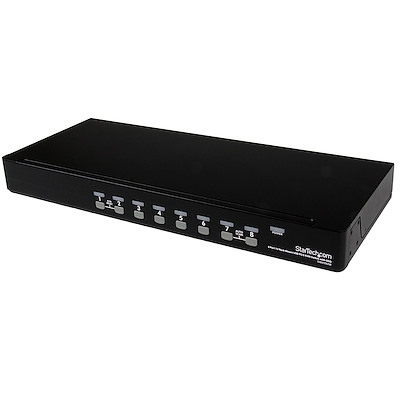

8 Port 1U Rackmount USB PS/2 KVM Switch with OSD – TAA

Control up to 8 USB or PS/2-connected computers from one keyboard, mouse and monitor

Connect USB and PS/2 based computer systems
OS independent – No software or drivers required
Auto-scan function cycles through computers sequentially
Cascade configuration expands system capability
Front panel push-buttons and Hot-key functions allow for easy switching
On Screen Display (OSD) supports naming connected computers
USB & PS2 console interfaces for keyboard and mouse
OSD security option allows selected PCs to be password-protected from unauthorized use

AED2,499.00

Add to Wishlist

The SV831DUSB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.

The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.

A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.

Applications

Add single console administration to your Co-location/ISP facility saving you time and money
Create a scalable, streamlined access solution in your Datacenter or Server Farm
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice

Perfect for manufacturing line computer control, simplifying access to multiple systems

SKU: SV831DUSB Category: KVM Switches Tag: SV831DUSB

✅ Product Specifications Table

🔄 Compatibility

Feature	Detail
Compatibility	OS Independent – No software or drivers required

🌡️ Environmental

Feature	Detail
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

⚙️ Hardware

Feature	Detail
Audio	No
KVM Ports	8
PC Interface	USB and PS/2
PC Video Type	VGA
Number of Monitors Supported	1
Rack-Mountable	Yes
Cables Included	No
Daisy-Chain	Yes (Supports up to 64 PCs)

📦 Packaging Information

Feature	Detail
Package Quantity	1
Package Length	10.4 in [26.5 cm]
Package Width	23.4 in [59.5 cm]
Package Height	3.6 in [9.1 cm]
Shipping Weight	7.2 lb [3.3 kg]

🚀 Performance

Feature	Detail
On-Screen Display	Yes
DVI Support	No
IP Control	No
Hot-Key Selection	Yes
Maximum Analog Resolution	1920 x 1440 @ 60Hz
Maximum Cascaded Computers	64
Maximum Number of Users	1
Port Selection Support	Push Button and Hotkeys
MTBF	150,000 hours

🧱 Physical Characteristics

Feature	Detail
Color	Black
Material	Steel
Product Length	17.2 in [43.8 cm]
Product Width	7.1 in [18.0 cm]
Product Height	1.8 in [4.5 cm]
Weight of Product	6.4 lb [2.9 kg]

🔋 Power

Feature	Detail
Power Source	AC Adapter Included
Input Voltage	100 – 240 AC
Input Current	0.2 A
Output Voltage	9V DC
Output Current	0.6 A
Center Tip Polarity	Positive
Plug Type	M
Power Consumption	5.4 W

🖥️ Software

Feature	Detail
OS Compatibility	OS Independent – No drivers required

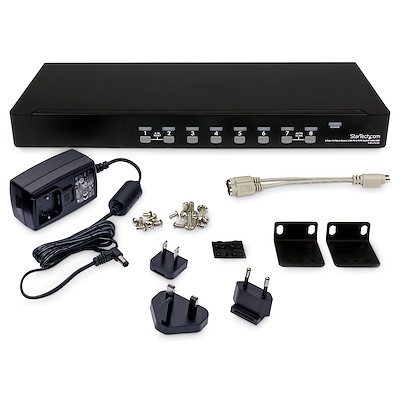

📦 What’s in the Box

Included Items
1 × 8-port KVM switch
2 × Mounting brackets
1 × PS/2 keyboard and mouse Y cable
1 × Universal power adapter (NA/EU/UK)
4 × Foot pads
1 × Instruction manual
