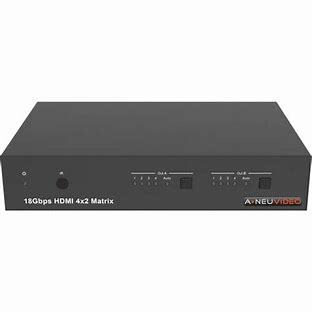

A-Neuvideo 4×2 HDMI 2.0 18 Gb/s Matrix Switcher with Scaler, SPDIF, Analog & Web-GUI

Add to Wishlist
  • 18 Gb/s HDMI Video Switcher
  • 4 HDMI Inputs, 2 HDMI Outputs
  • De-Embedded Analog & Digital Audio
  • Resolutions up to 4K60 4:4:4
  • HDBaseT Support

999.00 د.إ

Add to Wishlist

The 4×2 HDMI 2.0 18 Gb/s Matrix Switcher with Scaler, SPDIF, Analog & Web-GUI from A-Neuvideo is an HDBaseT-compatible video switcher that supports up to 4K60 4:4:4 18 Gb/s video via HDMI. It features four HDMI inputs and two scaling HDMI outputs, which can be individually scaled for 1080p or HDBaseT.

Two sets of de-embedded audio are available via analog left and right outputs and optical TOSLINK. The switcher is controllable from its front panel, RS-232, IR, or LAN with a built-in GUI.

Key Features
  • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
  • Four 18 Gb/s HDMI 2.0 video inputs supporting up to 4K60 4:4:4 resolution
  • Two 18 Gb/s HDMI 2.0 video outputs supporting up to 4K60 4:4:4 resolution
  • Both outputs can be individually scaled for 1080p or HDBaseT mode
  • Automatic RS-232, CEC, and IR control of the display device power state
  • Two sets of de-embedded audio with analog and TOSLINK outputs, for both outputs
  • ARC decoding to the TOSLINK audio outputs only
  • Test Pattern mode for testing output signal integrity to the display
  • Built-in Web GUI for LAN control
  • Four methods of control: front-panel, RS-232, IR, and LAN
SKU: ANI-42HDFIX Category: Tag:

A-Neuvideo 42HDFIX Specs

Processing
Switching Type
IR Remote, Pushbutton, Software
Processing Resolution
UHD 4K at 50/60
Color Processing
4:4:4
Input
Video Inputs
4x HDMI (2.0) Female
Input Video Format
HDMI (4:4:4/4:2:0)
UHD 4K at 30/50/60 fps
1080p
1080i
720p
480p
480i / 525 lines
WUXGA (1920 x 1200)
Embedded Audio Input
HDMI
Output
Video Outputs
2x HDMI (2.0) Female
Output Video Format
HDMI (4:4:4/4:2:0)
UHD 4K 30/50/60 fps
1080p
1080i
720p
480p
480i / 525 lines
WUXGA (1920 x 1200)
Audio Outputs
2x Block 3-Pin Stereo Analog
2x TOSLINK S/PDIF
Output Audio Format
S/PDIF
Embedded Audio Output
HDMI
Connectivity
Other I/O
2x Block 3-Pin RS-232
1x RJ45 Control
1x 1/8″ / 3.5 mm IR Input
1x 1/8″ / 3.5 mm IR Output
HDCP Support
Yes, Version 2.2
HDR Support
Yes, HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
DTS Compatibility
DTS, DTS-HD High Resolution, DTS-HD Master Audio
Dolby Compatibility
Dolby Digital, Dolby Digital Plus
Hardware
Wi-Fi
Yes
Bluetooth
Yes
Power
Power I/O
1x Barrel (12 VDC at 1 A) Input
Power Consumption
4.3 W
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
20 to 90%
General
Dimensions
8.6 x 5.5 x 1.7″ / 21.8 x 14 x 4.3 cm
Weight
2.3 lb / 1 kg
Packaging Info
Package Weight
3.625 lb
Box Dimensions (LxWxH)
12.9 x 12.8 x 3.6″
