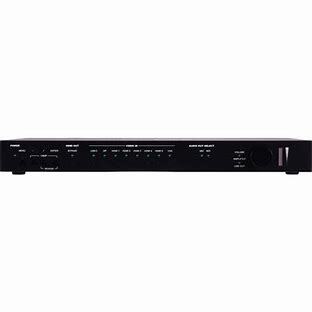

A-Neuvideo 8×2 4K/60 Multi-Format Presentation Switcher/Scaler with Audio
- 4K UHD Multi-Format Switcher and Scaler
- USB-C, DP, VGA, 5 x HDMI Video Inputs
- HDBaseT and HDMI Video Outputs
- Control via Buttons, WebGUI, RS-232
- 6 x Stereo Audio, 1 x Microphone Input
- HDMI 2.0 and DVI 1.0 Compliant
- 40W Stereo Speaker Output
- USB Type-C Port Provides up to 60W Power
- EDID and HDCP Support
- Supports PoH Output to Optional Receiver
د.إ7,399.00
Connect all your AV gear in conference rooms and educational institutions for presentation applications using the A-Neuvideo 8×2 Multi-Format Presentation Switcher/Scaler with Audio. Eight video inputs, ideal for devices like computers and DVD players, can be freely selected at user-determined scaled resolutions and sent to the HDMI or HDBaseT mirrored video outputs. Up to 4K resolution video can be transmitted up to 328 feet over a single network cable, while control of the system can be achieved through front-panel buttons, WebGUI, Telnet, triggers, or RS-232 cable for versatility. With a 60W output rating, the USB Type-C rear panel port has the capability to power a laptop.
A built-in audio mixer function allows the user to mix audio from any LPCM 2.0 source with the microphone input for corporate or educational lectures or presentations. Multiple stereo audio inputs and a 40W analog stereo output allow for further audio routing flexibility. Two mounting ears allow for the unit to be secured to a rack while four shockproof feet can accommodate temporary installation on a desk or table.
- Eight video inputs— five HDMI, USB Type-C, DisplayPort, and VGA— and mirrored HDMI and HDBaseT video outputs allow connection of all AV gear to one switcher with automatic scaling
- Trigger input interface allows for addition of separately available remote control keypad or other compatible products
- Supports LPCM (up to 8 channels), Bitstream and HD Bitstream audio formats
- 40W stereo speaker output
- Audio mixer function supports any LPCM 2.0 source with microphone input
- Switch between mixed and unmixed audio
- HDMI 2.0 and DVI 1.0 compliant
- HDCP 1.x and 2.2 compliant
- EDID support for device connection optimization
- USB Type-C port provides 60W of power for laptop or other accessory
- Supports Deep Color input and output up to 12-bit (Bypass only)
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI Bypass only)
- Supports standard PoH (PSE) from the HDBaseT output to an optional HDBaseT (PD) receiver
| Switching Type | |
| Processing Resolution | |
| Color Processing |
| Video Inputs | |
| Input Video Format | |
| Audio Inputs | |
| Input Audio Format |
| Video Outputs | |
| Output Video Format | |
| Audio Outputs | |
| Output Audio Format | |
| Multiview Output |
| Other I/O | |
| HDCP Support |
| Wi-Fi | |
| Bluetooth |
| Power I/O | |
| Power Consumption |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity |
| Certifications | |
| Rack Form Factor | |
| Dimensions | |
| Weight |
