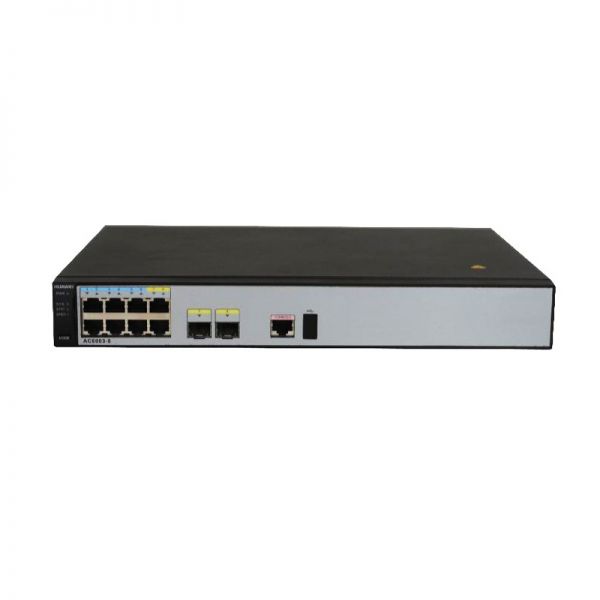

AC6005-8-PWR-8AP Huawei AC6005 Wireless Controller


AC6005-8-PWR-8AP Bundle(Including AC6005-8-PWR,Resource License 8AP,AC 110/220V)

AED10,899.00

AC6005-8-PWR-8AP Overview

Huawei AC6005-8-PWR-8AP Bundle includes 8 GE POE ports and 8 Access point license. The Huawei AC6005 series access controller is ideally design for small to medium size enterprise to provide wired and wireless services for office network. Moreover, Huawei AC6005 wireless access controller delivers 4Gbit/s forwarding capacity, supports up to 128 access points, up to 2048 access users, and easily scales as needed. It also provides most cost-efficient mobility solution and simplify mobility management.

Quick Specs

Table 1 shows the Quick Specs.

Product Code AC6005-8-PWR-8AP
Ports 6 x GE + 2 x GE Combo
POE 8-port PoE or 4-port PoE+
Power Supply AC
Forwarding Capability 4 Gbit/s
Maximum Number of Managed APs 256
Maximum Number of Access Users 2K
AP-AC Networking Layer 2 or Layer 3 networking
Forwarding Modes Direct forwarding (distributed forwarding or local forwarding)

or tunnel forwarding (centralized forwarding)

AC Active/Standby Mode 1+1 HSB or N+1 backup
Dimensions (W x D x H) 320 mm x 233.6 mm x 43.6 mm
Net Weight 2.3 kg

Product Details

Table 2 shows the LEDs Area description.

Indicator/Button Status Description
Power Supply Indicator:Ā PWR Off Power supply not on
Steady green Power supply working properly
Steady orange PoE power supply faulty
System Status Indicator:Ā SYS Off System not operating
Steady green Fast blinking:Ā System starting

Slow blinking:Ā System running properly

Steady red System cannot start normally or there is an overheat or fan alarm
State Mode Indicator:Ā STAT Off State mode not selected
Steady green Service port indicator works in default mode (STAT).

In this mode, the indicatorĀ shows the port status

Speed Mode Indicator:Ā SPED Off Speed mode not selected
Steady green Service port indicator shows port speed.

After 45 seconds,Ā service port indicator automatically returns to default mode (STAT)

PoE Mode Indicator:Ā PoE Off PoE mode not selected
Steady green Service port indicator shows PoE status of each port.

After 45 seconds,Ā service port indicator automatically returns toĀ default mode (STAT)

SKU: AC6005-8-PWR-8AP Category: Tag:

AC6005-8-PWR-8AP Specification

AC6005-8-PWR-8APĀ Specification

Technical specifications Ā *Dimensions (H x W x D):43.6 mm x 320 mm x 233.6 mm

*Weight: 2.9 kg

*Operating temperature: –5oC to 50oC

*Storage temperature: –40oC to +70oC

*Humidity: 5% to 95%

*Input voltage: 100 V AC to 240 V AC; 50/60 Hz

*Maximum voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz

*Maximum power consumption: 163.6 W (device power consumption: 39.6 W, PoE: 124 W)

Interface type Ā *8 x GE interfaces, among which the last two are multiplexed with two optical interfaces asĀ combo interfaces

*One RJ45 serial maintenance interface

*One Mini USB serial maintenance interface

LED indicator Ā *Power module indicator (PWR): indicates the power-on status of the device.

*System running status indicator (SYS): indicates the running status of the device.

*Service network port indicator: indicates the data transmission status, interface rate, and PoEstatus of a network port.

Number of managed APs 256
Number of SSIDs 16K
Number of APs controlled byĀ each license 1, 8, 32
Number of access users Entire device: 2K
User group management The AC supports 128 user groups:

*Each user group can reference a maximum of 8 A CLs.

*Each user group can associate with a maximum of 128 A CL rules.

Number of MAC addresses 4K
Number of VLANs 4K
Number of ARP entries 4K
Number of routing entries 8K
Number of multicast forwardingĀ entries 2K
Number of DHCP IP address pools 64 IP address pools, each containing a maximum of 8K IP addresses
