AC6605-26-PWR-16AP Bundle(Including AC6605-26-PWR,Resource License 16AP)
|
AED23,499.00
Huawei AC6605-26-PWR-16AP is the Huawei AC6605 Series Wireless Controllers. This Huawei AC6605 provides adaptable campus and office network solutions for medium- to large-sized enterprises and branches. Model AC6605-26-PWR-16AP includes 16 wireless access point licenses and 26 Gigabit Ethernet POE ports.

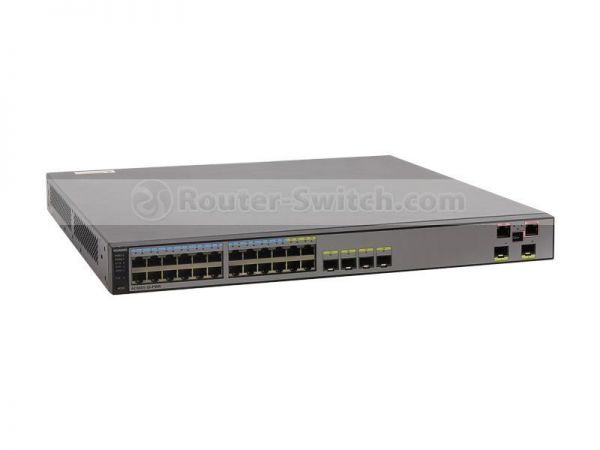

Figure 1 shows the appearance of AC6605-26-PWR-16AP.
Table 1 shows the Quick Specs.
| Product Code | AC6605-26-PWR-16AP |
| Ports | 20 x GE + 4 x GE Combo + 2 x 10 GE |
| POE | 24-port PoE |
| Power Supply | 1+1 AC or 1+1 DC |
| Forwarding Capability | 10 Gbit/s |
| Maximum Number of Managed APs | 1,024 |
| Maximum Number of Access Users | 10K |
| AP-AC Networking | Layer 2 or Layer 3 networking |
| Forwarding Modes | Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding) |
| AC Active/Standby Mode | 1+1 HSB or N+1 backup |
| Radio Protocols | 802.11 a/b/g/n/ac |
| Maximum Power Consumption | 85W |
| Dimensions (D x W x H) | 442 Ć 420 Ć 43 mm |
| Weight | Net weight: 5.48 kg
Fully configured with 150W power supplies: 7.16 kg Fully configured with 500W power supplies: 7.48 kg |
Figure 2 shows the front panel of AC6605-26-PWR-16AP.
Noteļ¼
| ā | 20 10/100/1000BASE-T Ethernet electrical ports. | ā£ | Console port |
| ā” | Four pairs of combo ports | ā¤ | Mini USB port |
| ā¢ | Two 10GE SFP+ uplink optical ports | ā„ | ETH management port |
Figure 3 shows the back panel of AC6605-26-PWR-16AP.
Noteļ¼
| ā | Ground point |
| ā” | Filler panel |
| ā¢ | Two slots for the power supplies |
AC6605-26-PWR-16AP Specification |
|
| Ports | 20 x GE + 4 x GE Combo + 2 x 10 GE |
| POE | 24-port PoE |
| Power Supply | 1+1 AC or 1+1 DC |
| Forwarding Capability | 10 Gbit/s |
| Maximum Number of Managed APs | 1,024 |
| Maximum Number of Access Users | 10K |
| AP-AC Networking | Layer 2 or Layer 3 networking |
| Forwarding Modes | Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding) |
| AC Active/Standby Mode | 1+1 HSB or N+1 backup |
| Radio Protocols | 802.11 a/b/g/n/ac |
| Maximum Power Consumption | 85W |
| Dimensions (D x W x H) | 442 Ć 420 Ć 43 mm |
| Weight | Net weight: 5.48 kg
Fully configured with 150W power supplies: 7.16 kg Fully configured with 500W power supplies: 7.48 kg |
