AC6805 – Huawei Wireless Access Controllers

Add to Wishlist

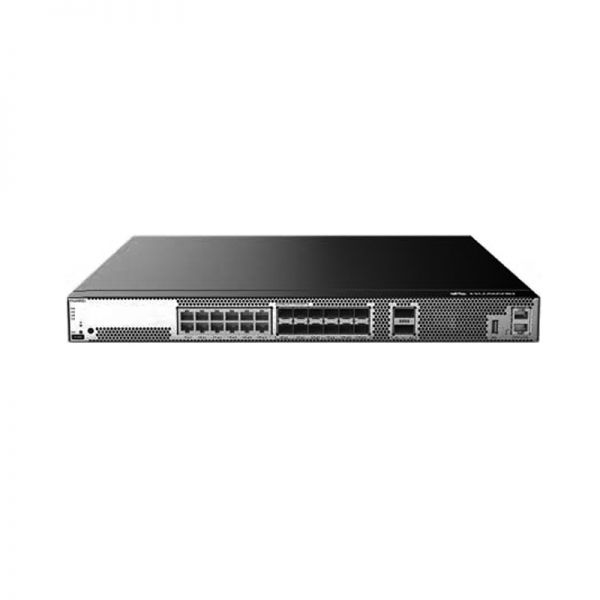

AC6805 mainframe (12*GE ports, 12*10GE SFP+ ports, 2*40GE QSFP+ ports, no power)

AED360,999.00

Add to Wishlist

AC6805 Overview

The Huawei AC6805 is a high-specification wireless access controller (AC) for medium- to large-sized enterprise campuses, enterpriseĀ branches, and school campuses. The AC6805 can manage up to 6K access points (APs) and provide up to 40 Gbit/sĀ forwarding performance. It features high scalability and offers users considerable flexibility in configuring the number ofĀ managed APs. When used with Huawei’s full series 802.11ax, 802.11ac and 802.11n APs, The AC6805 delivers an adaptableĀ solution for medium to large campus networks, enterprise office networks, wireless Metropolitan Area Network (MAN), andĀ hotspot coverage.

Quick Specs

Table 1 shows the Quick Specs.

Product Code AC6805
Ports

Ā

 12 x GE + 12 x 10 GE + 2 x 40 GE (one 40 GE port is mutually exclusive with four 10 GE ports.)
Power Supply AC or DC
Forwarding Capability 40 Gbit/s
Maximum Number of Managed APs 6K
Maximum Number of Access Users 64K
AP-AC Networking Layer 2 or Layer 3 networking
Forwarding Modes Direct forwarding or tunnel forwarding
AC Active/Standby Mod 1+1 HSB or N+1 backup
Radio Protocols 802.11 a/b/g/n/ac/ac Wave 2/ax
Dimensions (H x W x D) 43.6 mm x 442 mm x 440 mm

Product Details

Huawei AC6805 provides these features:

ā€¢Ā Large-capacity and high-performance design

ā€¢Ā SmartRadio for air interface optimization

ā€¢Ā Various roles

ā€¢Ā Flexible networking

ā€¢Ā Built-in application identification server

ā€¢Ā Comprehensive reliability design

ā€¢Ā Built-in visualized network management platform

ā€¢Ā Health-centric one-page monitoring, visualized KPIs

ā€¢Ā Profile-based configuration by AP group simplifies configuration procedure and improves efficiency.

ā€¢Ā One-click diagnosis solves 80% of common network problems

SKU: AC6805 Category: Tag:

AC6805 Specification

AC6805 Specification
Forwarding Capability 40 Gbit/s
Maximum Number of Managed APs 6K
Maximum Number of Access Users 64K
AP-AC Networking Layer 2 or Layer 3 networking
Forwarding Modes Direct forwarding or tunnel forwarding
AC Active/Standby Modes 1+1 HSB or N+1 backup
Radio Protocols 802.11 a/b/g/n/ac/ac Wave 2/ax
Dimensions (H x W x D) 43.6 mm x 442 mm x 440 mm
Interface type 2 x 40G (QSFP+) + 12 x 10GE (SFP+) + 12 x GE
Maximum power consumption 231.7 W
Operating temperature and altitude -60 m to +1800 m: 0Ā°C to 45Ā°C 1800 m to 5000 m: Temperature decreases by 1Ā°C every time the altitude increases 220 m.
Relative humidity 5% RH to 95% RH, non-condensing
Power module AC and DC power modules, supporting hot swapping, and hot backup

NOTE:A maximum of two power modules are supported
Number of managed APs Central APsļ¼š768 Common APs and RUsļ¼š6K

NOTE:The RUs managed by the WLAN AC do not occupy the WLAN AC’s license resources. However, the total number of managed common APs and RUs cannot exceed the upper limit allowed by the WLAN AC.
Number of access users 64K

NOTE:The maximum number of access users varies depending on the authentication mode.
Number of MAC address entries 100K
Forwarding capability 40Gbit/s

NOTE:Packet length: 1024 bytes
Number of VLANs 4K
Number of routing entries IPv4: 16KĀ l

IPv6: 4K
Number of ARP entries 100K
Number of multicast forwarding entries 2K
Number of DHCP IP address pools 256 IP address pools, each of which contains a maximum of 64K IP addresses
Number of local accounts 6.4K
Number of ACLs 32K
