04 3550600 052 7036860

Accusine SWP Parallel 30A 400V IP20

Add to Wishlist

36,499.00 د.إ

Add to Wishlist

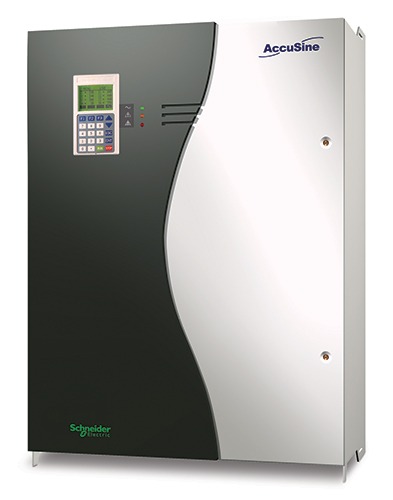

Accusine SWP Parallel 30A 400V IP20 – PCS030Y4IP20P

AccuSine Features & Benefits

Convenience
  • LED status indicators
    Quickly understand unit and power status with visual indicators.
  • LCD display
    Alpha-Numeric Display which displays system parameters and alarms.
Total Cost of Ownership
  • Input power factor correction
    Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Generator compatible
    Ensures clean, uninterrupted power to protected equipment when generator power is used
SKU: PCS030Y4IP20P Category: Tag:
Weight 70.0 kg

Detailed Tech Specification



Output

  • Nominal Output Voltage

    400V 3PH

Input

  • Nominal Input Voltage

    400V 3PH

  • Input frequency

    50/60 Hz

  • Maximum Input Current

    30.0A

Physical

  • Maximum Height

    680mm , 68.0CM

  • Maximum Width

    540mm , 54.0CM

  • Maximum Depth

    280mm , 28.0CM

  • Net Weight

    70.0KG

  • Shipping weight

    36.36KG

  • Shipping Height

    1025mm , 102.5CM

  • Shipping Width

    790mm , 79.0CM

  • Shipping Depth

    450mm , 45.0CM

Environmental

  • Operating Temperature

    0 – 45 °C

  • Operating Relative Humidity

    0 – 95 %

  • Operating Elevation

    0-999,9meters

  • Storage Temperature

    -25 – 65 °C

  • Storage Relative Humidity

    0 – 95 %

  • Storage Elevation

    0-9000meters

  • Audible noise at 1 meter from surface of unit

    59.0dBA

  • Protection Class

    IP 20

Conformance

  • Approvals

    EN 60950, IEC 61000-4-5

  • Standard warranty

    1 year repair or replace
